Best Dual Zone Precharged Mini Split System (2026): Specs, Rankings and Buying Guide

October 7, 2026

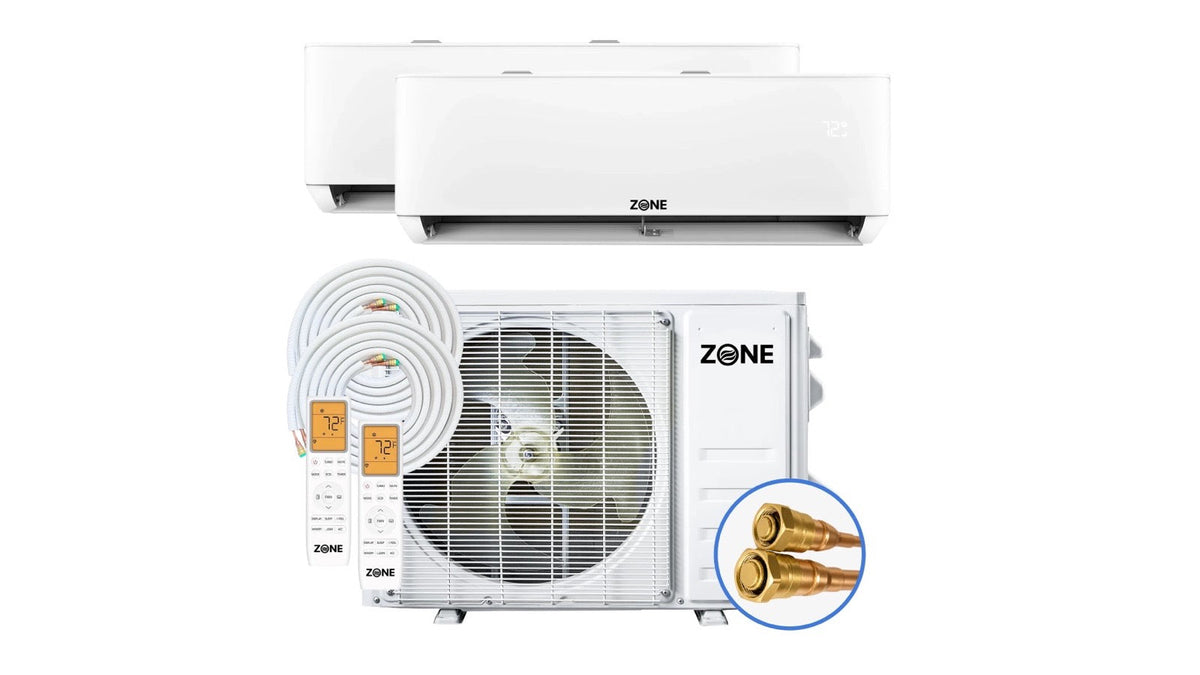

Zone Air dual zone precharged mini split system with two wall-mount indoor units, outdoor condenser, line sets and quick connect fittings

In 2026, the best dual zone precharged mini split system is one you can install yourself, and the options are better than ever. But with more brands entering the space, picking the right system means going beyond marketing claims and into published specifications and honest brand comparisons. This guide breaks down exactly what to look for in a dual zone precharged mini split system, lists the top options and gives you the spec-level detail you need to make a confident decision. Whether you need to cool and heat two bedrooms, a living room plus home office, or a garage conversion in a cold climate, we can help you figure it out.

Best Dual Zone Precharged Mini Split System in 2026 (Quick Answer)

The Zone Air DIY Dual Zone line is our pick for the best dual zone precharged mini split system in 2026. It has cold climate heating rated to −13°F, high efficiency ratings and a level of indoor unit flexibility that the other DIY brands in this guide don't match. Every Zone Air dual zone system uses the same 27,000 BTU multi-zone outdoor condenser. The factory sends it precharged with R-454B refrigerant, it connects with quick connect fittings, and it is built for homeowner installation without specialized tools or a vacuum pump. The BTU number in each product name is the connected indoor capacity, which is the two heads added together. Here are the best specs at a glance:

With 27,000 BTU/h rated cooling and 28,000 BTU/h rated heating, the outdoor unit handles up to 36,000 BTU of connected indoor capacity
24 SEER2 on wall-mount dual zone systems. 21 SEER2 on ceiling cassette dual zones. 19 SEER2 on concealed ducted dual zones
HSPF2 of 10 on the cassette and ducted dual zone systems (10.5 on the 22K ducted pair)
208–230V single-phase operation on a 30A double-pole breaker
R-454B refrigerant, factory pre charged and sealed in the condenser and line sets
Heating operation rated down to −13°F on every model

Zone Air also lets you mix wall-mount, ceiling cassette and concealed ducted indoor units on one outdoor condenser through its mix-and-match tool. MRCOOL's DIY multi-zone condensers work with wall-mount and OuttaSight ceiling cassette heads, and MRCOOL's published matchups for its ducted DIY air handler are with its single-zone 24K and 36K condensers, not the multi-zone units. A dual-zone setup pairs one outdoor condenser with two indoor air handlers, and true DIY precharged mini split systems allow installation without specialized tools. Precharged dual-zone systems eliminate the vacuum pump step completely, which can make them the best DIY approach if you want reliable heating and cooling across two rooms.

Zone Air DIY Dual Zone Precharged Mini Split Specs for 2026

This section pulls together the published specifications for Zone Air's dual zone DIY models, drawn from the product spec tables.

Wall-mount dual zone systems (connected indoor capacity): 18,000 BTU (9K+9K), 21,000 BTU (12K+9K), 24,000 BTU (12K+12K), 27,000 BTU (9K+18K), 30,000 BTU (12K+18K), and 36,000 BTU (18K+18K)
Ceiling cassette dual zone systems: 19,000 BTU (9.5K+9.5K), 21,500 BTU (12K+9.5K), and 24,000 BTU (12K+12K)
Concealed ducted dual zone systems: 19,000 BTU (9.5K+9.5K), 20,500 BTU (11K+9.5K), and 22,000 BTU (11K+11K)
Outdoor unit: one 27,000 BTU/h multi-zone condenser on every dual zone system, rated 28,000 BTU/h heating, with a 4,500–33,000 BTU/h heating range
Voltage: 208–230V, single-phase, 30A double-pole breaker
Refrigerant: R-454B, factory pre charged across the entire product range
Efficiency: 24 SEER2 wall-mount. 21 SEER2 ceiling cassette. 19 SEER2 concealed ducted. HSPF2 is 10 on cassette and ducted pairs
Operating range: −13°F to 131°F on wall-mount systems; −13°F to 122°F on cassette and ducted systems
Indoor sound levels: wall-mount units are 30–44 dB(A). Ceiling cassettes are 28–42 dB(A). Concealed ducted heads are 35–42 dB(A) depending on fan speed
Outdoor unit sound level: 62 dB(A)
Line sets: precharged quick connect line sets are sold separately, one per zone, in 16 to 75 ft lengths
Pricing (October 2026): wall-mount dual zones from $3,039.99 (18K, 21K and 24K) to $4,039.99 (36K). Cassette and ducted dual zones are $4,039.99, before line sets

Mix Wall, Cassette and Ducted Heads on One Dual Zone Condenser

Zone Air DIY dual zone condensers let you pair wall-mount, ceiling cassette and concealed duct indoor units on the same outdoor unit. One outdoor condenser can support any combination of head styles across your two zones. A mixed system that includes a ducted head is rated 22 SEER2, and wall and cassette mixes are rated 24 SEER2. Of the brands compared in this guide, Zone Air is the only one offering a concealed ducted head on a precharged DIY multi-zone condenser. MRCOOL's DIY multi-zone platform supports wall-mount and OuttaSight ceiling cassette heads, and MRCOOL does scale to more zones than Zone Air. You can run up to six heads on its 48K and 55K condensers, versus two or three on Zone Air's 27K condenser. Typical mix-and-match setups include one wall-mount unit in a primary bedroom paired with one ducted indoor unit serving a hallway and adjacent office, or one ceiling cassette in an open-plan living area plus one wall-mount unit in a second-floor bedroom, all running off one condenser. Each zone gets its own thermostat and remote for independent temperature control across the two rooms. A ducted head can push air quietly into a couple of small rooms while the wall head handles an open living area with its own setpoint. This flexibility matters for real homes with mixed floor plans. If one zone is a bedroom that needs quiet operation and the other is a finished basement where a concealed duct run makes more sense, Zone Air handles both without forcing you into a pro install.

Dual Zone Indoor Unit Specs: Wall, Cassette and Ducted

Wall-mount indoor unit:

Capacities per zone: 9,000, 12,000, and 18,000 BTU
Compact high-wall design: 23.1 lbs for the 9K and 12K heads, 30.9 lbs for the 18K
Noise: 30 dB(A) in quiet mode on the 9K and 12K, 34 dB(A) on the 18K
Washable filters and a remote for each zone
Best for larger rooms and open-plan spaces where visible wall placement is acceptable

Ceiling cassette indoor unit (Airframe):

Capacities in dual zone: 9,500 BTU and 12,000 BTU per cassette
Chassis 22-1/2 by 22-1/2 by 9-5/8 inches with a 25-5/8 inch square decorative panel, sized for a 24 by 24 inch drop-ceiling grid opening or a framed opening. 4-way airflow for even distribution
Built-in condensate pump. Sound levels 28–42 dB(A)
Filter access from the bottom panel without removing the cassette
Ideal where aesthetics matter and you don't want a visible wall head

Concealed ducted indoor unit (Thin-Air):

Capacities: 9,500 BTU and 11,000 BTU heads for dual zone systems
Low-profile cabinet, about 8 inches tall on the single-zone unit, so it fits above ceilings, in attic spaces or inside closets
External static pressure 0.1–0.4 inches WG, enough for short duct runs that serve two or three small rooms from a single head
Built-in condensate pump
Sound levels 35–42 dB(A) depending on fan speed and duct configuration

Dual Zone Condenser and Precharged Line Set Specs

Whether a DIY mini split install will work for you depends heavily on the condenser design and the precharged line set details. This is where the "true DIY" claim either holds up or falls apart. For every Zone Air dual and 3 zone system, the condenser is one 27,000 BTU/h inverter-driven multi-zone unit. It is 119 lbs, measures 38-1/2 by 16-1/2 by 31-5/8 inches, and is rated 24 SEER2 with wall heads. The condenser and each line set ship pre charged with R-454B, so no field refrigerant handling is needed for a DIY install. Pre charged line sets are sold per zone in standard lengths of 16, 25, 33, 50 and 75 ft, and Zone Air will custom cut any length from 5 to 75 ft for an added fee. That lets you order close to the exact run instead of coiling excess line. Each line set has quick connect fittings and insulated tubing. MRCOOL's DIY Quick Connect line sets come in 11.5, 16, 25, 35 and 50 ft lengths, with a connector kit to go longer (up to 75 ft per indoor unit), and MRCOOL's manual says to coil any excess line behind the condenser. Electrical requirements are a dedicated 208–230V circuit on a 30A double-pole breaker. Even on a DIY mini split install, most homeowners should hire a licensed electrician for the breaker and wire run to comply with local code.

Dual Zone Mini Split Cold Climate Performance

Cold climate performance matters more in 2026 than ever. Heat pump mini splits are increasingly replacing fossil-fuel furnaces and boilers, which means your system needs to deliver reliable heating well below freezing, not just cool efficiently in summer. Zone Air dual zone systems are rated for heating operation down to −13°F. Below that, the system is outside its rated range. Variable-speed inverter compressors are able to ramp up at low outdoor temperatures rather than cycling on and off, which keeps heating performance and comfort up. MRCOOL's DIY multi-zone condensers (18K through 48K) are also rated for heating down to −13°F. Only MRCOOL's 55K multi-zone condenser is rated to −22°F, and MRCOOL's DIY Hyper Heat line is single-zone only. Cooper & Hunter's Hyper Heat models are rated to −22°F, but they use flare line sets that must be evacuated and Cooper & Hunter's warranty needs installation by a licensed HVAC technician. Many budget mini splits and older-generation systems lose heating capacity fast near 0°F, making them bad as primary heat sources in cold climates. If you're in the Upper Midwest, New England or near the Canadian border, check the rated heating capacity at 5°F and −13°F before you buy, and plan on backup heat for the coldest nights. Readers in a moderate climate where temperatures rarely dip below 10°F can usually rely on a standard Zone Air dual zone system as primary heat, with proper sizing.

DIY vs Pro Install for a Dual Zone Mini Split

Zone Air DIY dual zone mini splits are engineered for homeowner installation without opening refrigerant lines. Skipping the contractor typically saves $1,500–$3,500 per zone compared to professional installation for a comparable two-zone system. The core DIY install steps at a high level are: mount the indoor units on wall brackets or ceiling frames. Position and secure the outdoor unit on a pad or wall bracket. Route and connect the precharged line sets between each indoor unit and the condenser using the quick connect fittings. Run the control cables. Connect power to the dedicated circuit. And complete the manufacturer's startup checklist. No vacuum pump is required for sealed precharged systems. Professional systems, by contrast, require vacuum evacuation and specialized tools, along with EPA 608 certification to handle refrigerant. Self installation of a Zone Air system sidesteps all of that. For warranty, Zone Air's 5-year parts and 7-year compressor warranty covers homeowner installation when the manual is followed. There is no registration deadline and DIY installation does not void coverage. This contrasts with brands that require a licensed installer to validate warranty coverage. Where a pro is still recommended is running the dedicated 230V circuit from your electrical panel. Most homeowners should bring in a licensed electrician for this step. Some jurisdictions also require permits, so check your local code before starting. The electrical portion typically runs $200–$500 depending on your area.

Best Dual Zone Precharged Brands: Zone Air vs MRCOOL vs Cooper & Hunter

This section gives an honest brand comparison framed around dual zone precharged DIY mini split systems available in 2026.

Where MRCOOL wins:

MRCOOL wins on big-box retail availability and zone count. Its DIY 5th Gen platform is a well-established true DIY system, and MRCOOL's catalog says no special tools or training are necessary to install it.
MRCOOL's DIY multi-zone condensers run from 18K (up to three zones) to 55K (up to six zones). For a two-head system you'd use the 18K (23.9 SEER2) or 27K (23 SEER2) condenser, both R-454B and ENERGY STAR listed.
MRCOOL's wall heads add Follow Me remote sensing and Alexa and Google voice control through its app, features Zone Air does not list.
Its 5th Gen warranty is 5 years parts and 7 years compressor with no registration needed.
The limitation: MRCOOL's catalog lists only wall-mount and ceiling cassette heads for its DIY multi-zone condensers. There is no concealed ducted head on the multi-zone platform.

Where Cooper & Hunter wins:

Cooper & Hunter's Hyper Heat line is rated to −22°F, with SEER2 up to 25 on single-zone and up to 22 on multi-zone models.
The trade-off: Cooper & Hunter kits use pre-flared copper line sets, so you need vacuum evacuation, gauges and refrigerant handling. Cooper & Hunter's warranty policy says the limited warranty applies only to products installed by a licensed HVAC technician and registered within 60 days.

Where Zone Air DIY wins for dual zone:

Of the brands here, the only precharged DIY platform that supports mixing wall, cassette and concealed ducted indoor units on the same condenser. That's the core difference for complex floor plans and homes that need more than two wall heads.
24 SEER2 on wall-mount dual zones, heating rated to −13°F, and a warranty that covers true DIY installation with no registration cut-off.
Pre charged line sets in five standard lengths up to 75 ft plus custom cuts, which fit difficult runs without coiled excess line.

Which brand fits you:

If you want a wall-mount dual zone system with the most retail availability, or you may grow past three zones, MRCOOL is a reasonable choice.
If you need −22°F heating and don't mind paying for a pro install, Cooper & Hunter's Hyper Heat models deliver.
If you want flexible head configurations, including a concealed duct run, on a precharged DIY platform, Zone Air is our pick for dual zone in 2026.

How to Pick a Dual Zone Precharged Mini Split System

This section has a practical checklist of what to look at when comparing any dual zone mini split system in 2026.

Capacity and sizing: Match total BTUs to combined room loads using a Manual J calculation or a reputable online load calculator. Common combinations include 9K+9K for two small rooms, 12K+9K for a bedroom plus office, and 12K+18K for a living area plus bedroom. Avoid going too big. It causes short-cycling, poor dehumidification and wasted energy. You will want to factor in ceiling height, window area and insulation.
Efficiency goals: Aim for SEER2 of 20 or higher for utility savings. Higher SEER2 means lower energy bills over the system's lifetime, and HSPF2 matters just as much if the system is your winter heat.
Refrigerant: R-454B is the current standard for new systems under the AIM Act phase-down. R-410A is being phased down. For future-proofing and parts availability, prioritize R-454B systems.
Warranty and support: Look for at least a 5-year parts warranty and 7-year compressor warranty. Confirm that the warranty terms clearly cover DIY install, because some brands void coverage without licensed installation.
Product range: Can the condenser support wall, cassette and ducted heads? This is something that affects future flexibility if you want to change one zone's indoor unit type. A system locked into wall-mount-only limits your options.

Best Zone Air Dual Zone Models for 2026

Here's a quick list of the most relevant Zone Air DIY dual zone systems for different home sizes and needs.

Entry-level 18K–21K BTU dual zone: Best for two small bedrooms, a bedroom plus home office, or one room plus a small den. At $3,039.99, the 18K (9K+9K) wall dual zone covers up to 900 sq ft. For hidden installs, the Thin-Air 20,500 BTU concealed ducted pair (11K+9.5K) is the best choice: slim ducted heads and up to 1,025 sq ft of coverage at $4,039.99.
Mid-range 24K–27K BTU: Best for a living room plus bedroom, or a main floor plus office. At 24 SEER2, the 24K (12K+12K) wall dual zone covers up to 1,200 sq ft and is also $3,039.99. You can also pair a wall unit in the living space with a ducted head feeding two smaller adjacent rooms through the configurator. Each indoor unit operates on its own thermostat.
Higher-capacity 30K–36K BTU: For a larger open-plan area plus a bedroom, or a small apartment. The 30K (12K+18K) covers up to 1,500 sq ft at $3,539.99, and the 36K (18K+18K) dual zone covers up to 1,800 sq ft at $4,039.99. Both still run on the same 27K condenser, which takes up to 36K of connected indoor capacity because two rooms rarely peak at the same time.

You can compare every pairing and price in our multi-zone pre-charged mini split collection.

Line sets are sold separately on every dual zone system, one per zone, so budget $229.99 per 16 ft line set (more for longer runs or the 18K line) on top of the system price.

Dual Zone Coverage Area and Room Layout Examples

Capacity numbers make more sense when tied to real room layouts. Here's how common dual zone configurations work in practice.

Two upstairs bedrooms: A 9K+9K (18,000 BTU) dual zone handles two bedrooms of up to 450 sq ft each with average insulation and standard 8-ft ceilings. Wall-mount heads in each room give simple, independent control.
Living room plus primary bedroom: A 12K+18K (30,000 BTU) pairing puts the 18K unit in a living area of up to 900 sq ft and the 12K in the bedroom. This works well in homes with open-concept main floors.
Bonus room over the garage plus home office: Garage conversions and bonus rooms often have poor insulation. A 12K+12K setup with the bonus room getting its own 12K head handles temperature changes from the uninsulated floor below.
Two kids' rooms via a ducted head plus one wall unit: A concealed ducted head off the dual zone condenser can quietly push air into two small rooms via short duct runs, while the second zone uses a wall unit in a larger primary bedroom.

Square footage estimates assume 8-ft ceilings and moderate insulation. High ceilings, large windows and extreme climate zones call for going larger.

Noise Levels, Comfort Modes and Smart Controls

Modern dual zone mini splits in 2026 combine quiet operation with app features that would have been premium-only a few years ago. Indoor noise ranges: Zone Air wall-mount units run 30–44 dB(A) depending on fan speed, with 30 dB(A) in quiet mode on the 9K and 12K heads, quieter than a whisper. Ceiling cassettes run 28–42 dB(A) and concealed ducted heads 35–42 dB(A). At 62 dB(A), the outdoor unit is about the level of a normal conversation. Comfort modes include auto mode that switches between heating and cooling based on setpoint, sleep mode with stepped temperature changes through the night, dry mode for dehumidification without aggressive cooling, and turbo for fast pull-down when you walk into a hot room. Zone Air includes WiFi app control over temperature, mode and scheduling, and each zone runs on its own setpoint via the app or the included remote. Zone Air does not list Alexa or Google voice control. MRCOOL does, through its SmartHVAC app.

Dual Zone SEER2 Ratings, Energy Use and Utility Bills

SEER2 and HSPF2 matter for total cost of ownership far more than the sticker price alone. A higher-efficiency unit costs more upfront but pays for itself through lower energy bills over the system's lifespan. A dual zone mini split system with SEER2 of 20 or higher can cut cooling energy use by about 30–50% compared to older window units or aging central systems rated at SEER 10–14. Precharged dual-zone systems use DC inverter technology to maintain this advantage. In shoulder seasons (spring and fall), heat pump operation can reduce or even replace gas or oil heating a lot in milder climates, cutting both electricity and fuel costs. Check local utility rebates for high-efficiency heat pump mini split systems. Many programs give ENERGY STAR certified systems rebates in the hundreds of dollars, though some need contractor installation. The federal 25C tax credit ended for equipment placed in service after December 31, 2025, so don't count on it in 2026. Inverter compressors run continuously at varying speed rather than cycling on and off, which uses less power at part load and keeps comfort steadier. This is why inverter-driven mini splits beat traditional single-speed systems at virtually every outdoor temperature. Mini splits usually last 15–20 years with proper maintenance, so the big utility savings over that period can add up.

Dual Zone Mini Split Warranty and Support

Brand reliability and warranty coverage matter as much as top efficiency numbers, possibly more, since a breakdown in January is far more costly than a slightly lower SEER2. Zone Air DIY dual zone systems carry a 5-year parts warranty and a 7-year compressor warranty, starting from the proof-of-purchase date. There is no registration deadline. Zone Air also sells an optional extended warranty ($199.99 per system) that takes coverage to 7 years parts and 10 years compressor. Coverage clearly supports DIY installation when done per the manual. You don't need a professional installer sign-off. This is different from brands that void warranties without proof of licensed HVAC work. Installation videos, the DIY manual and spec sheets are available for download, and replacement parts ship from the U.S. Be cautious of no-name or generic imports advertising low prices with 1–3 year compressor warranties, limited parts availability and no U.S. support. Budget mini splits may save upfront but cost more over time when something fails and model number searches lead nowhere.

FAQ: Dual Zone Precharged Mini Split Systems

How do two zones share capacity? The outdoor unit's inverter compressor modulates output. If one zone calls for cooling and the other is idle, the compressor ramps down. Both indoor units do not need to run at the same time, and each operates independently.

What's the maximum line set length per zone? Zone Air supports pre charged line sets up to 75 ft per zone, in standard lengths or custom cut. Excess line set should not be coiled tightly. Gentle loops within the manufacturer's bend radius are acceptable.

Do I need a vacuum pump or gauges? Not with a precharged system. The sealed quick connect fittings eliminate vacuum evacuation entirely, which is the core advantage of precharged line sets over traditional installations.

Can I cut or extend a precharged line set? No. Cutting breaks the factory seal and loses the charge. Order the correct length or use Zone Air's custom cut-to-length option.

Do I need permits? It depends on your jurisdiction. Some areas require permits for HVAC equipment or electrical work. Always verify local code requirements before starting your DIY install.

Can a dual zone heat pump be my sole heat source? In a moderate climate, yes. Most homeowners in climate zones 4–5 can rely on a properly sized dual zone heat pump as primary heat. In colder regions, a model rated to −13°F handles most winter days, though backup heat (electric baseboard or a space heater) is prudent for extreme cold snaps.

App and smart control compatibility? Zone Air supports iOS and Android apps, and each zone is controllable independently. Offline control is always available via the included remote for each indoor unit.

Is a Dual Zone Precharged Mini Split Right for You?

This section helps you decide whether a dual zone setup is the right call, or whether a single-zone, 3 zone or central system fits better. Dual zone works well when you have two main conditioned spaces (bedroom plus living room, two bedrooms, addition plus existing room), you're replacing two or more window units, you're doing a partial home switch to a heat pump, or you're finishing a basement and want to condition it alongside one room upstairs from one outdoor unit. A different solution might be better when you need whole-home conditioning across four or more zones (look at MRCOOL's larger multi-zone condensers or a central ducted heat pump). Your home already has well-maintained ductwork. Or your condo association restricts outdoor unit placement. Why Zone Air DIY stands out for dual zone in 2026: precharged true DIY install with no vacuum pump or HVAC license needed. The only platform in this comparison that lets you mix wall, cassette and ducted indoor units on a single condenser. Heating rated to −13°F. A 5-year parts and 7-year compressor warranty that covers DIY install. And 24 SEER2 on wall-mount pairs. Your next step: You will want to map out your room list and square footage for each zone. Identify your climate zone and winter low temperatures. Then match those numbers to one of the Zone Air DIY dual zone packages outlined above. Whether you're tackling two bedrooms in a ranch or a living area plus a converted garage, the right configuration is in the lineup. You can install it yourself.
