Garages are one of the most popular rooms for a DIY mini split install. Two true-DIY brands are the usual shortlist: MRCOOL DIY 5th Gen and Zone Air DIY. Both ship with pre-charged line sets, both use R-454B refrigerant, and both let homeowners skip a professional installation bill. For garages, the main practical difference is how the line set reaches the outdoor condenser.
Quick Answer
- MRCOOL DIY 5th Gen fits well when the outdoor unit sits about 25 ft from the indoor air handler: the included 25 ft pre-charged line set covers that run without modification, and the 9K and 12K 115V systems are rated around 23.5 SEER2. It also suits buyers who want local store availability.
- Zone Air DIY fits well when your run is some other length (12, 18, 32, 40 ft, or anything in between): it offers single-run pre-charged line sets from 5 to 75 ft, so there is no excess copper to coil and no coupler joining two sets. Its 115V models can also use an optional plug-in cord kit where code allows.
Both exceed 20 SEER2 on their 9K to 24K wall-mount single-zone systems, which can help with utility rebates, and with either one a handy homeowner can finish a garage install in a weekend.
Understanding DIY Mini Splits for Garages
A DIY mini split is a ductless heat pump with factory-sealed, pre-charged line sets and quick-connect fittings. It heats and cools, making it a year-round option for garages, workshops, and conditioned storage.
Traditional contractor-installed mini splits require a vacuum pump, flare fittings, nitrogen pressure testing, refrigerant charge verification, and EPA Section 608 certification for refrigerant handling. Pre-charged DIY systems eliminate all of that. When comparing units, rely on SEER2 and HSPF2 values rather than the older SEER ratings.

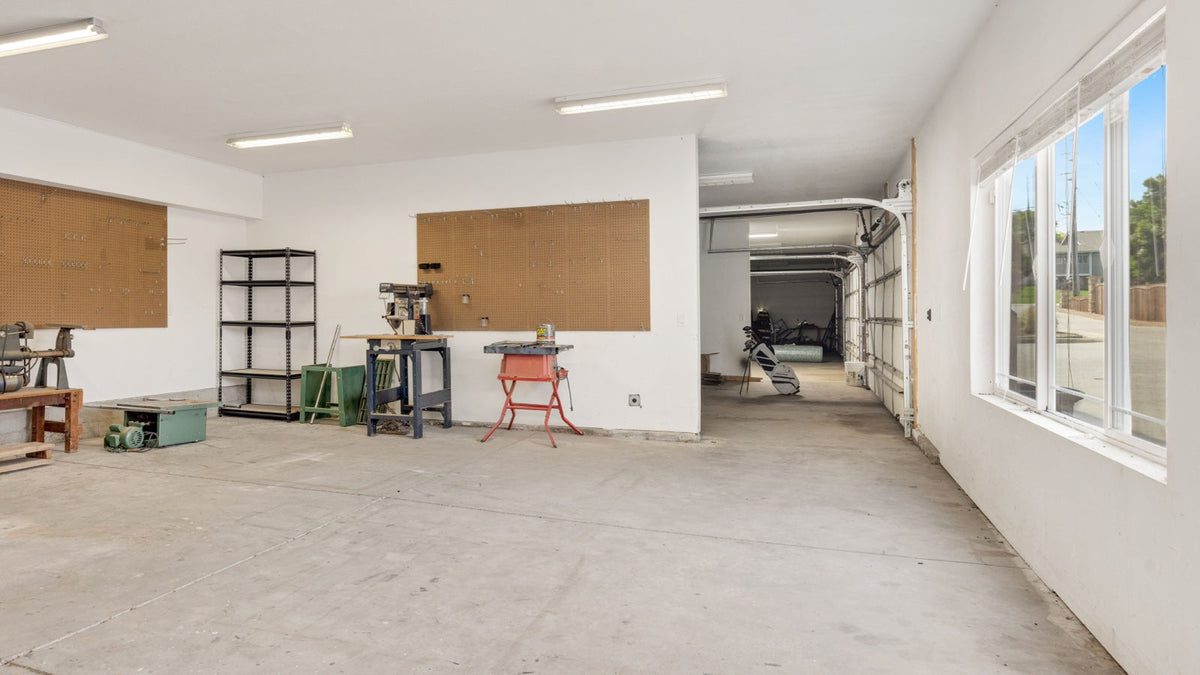

Common garage use cases: two-car garages (400 to 600 sq ft), single-bay workshops, detached hobby shops, and conditioned storage.
MRCOOL DIY 5th Gen Line Set: How the Pre-Charged System Works
MRCOOL DIY 5th Gen single-zone kits ship with a 25 ft pre-charged line set included. Available models cover most garage sizes:
- 9,000 BTU (115V): small single-bay garages and workshops
- 12,000 BTU (115V): up to about 550 sq ft
- 18,000 BTU (230V): larger or poorly insulated garages
- 24,000 and 36,000 BTU (230V): for larger spaces
The MRCOOL DIY 5th Gen line set is pre-charged with R-454B refrigerant and sealed with MRCOOL's patented Quick Connect fittings, and MRCOOL DIY systems require no vacuum pump.
The install concept: route the insulated copper line set from the air handler to the outdoor condenser, remove caps, hand-thread fittings, and tighten with two wrenches. No gauges and no refrigerant handling. MRCOOL's catalog says no special tools or training are necessary.
The practical catch for garages: MRCOOL offers fixed line set lengths, with 25 ft included and 11.5, 16, 35, and 50 ft sets available, plus coupled bundles up to a 75 ft maximum run (MRCOOL DIY Direct line set guide). If your best condenser location is 20 ft from the air handler, you coil 5 ft of excess copper from a 25 ft set. If the run is 40 ft, you either coil 10 ft of a 50 ft set or join a 25 ft set and a 16 ft set with a coupler, which adds a second set of connections.
Zone Air Line Sets for Garage Installs
Zone Air single-zone wall systems include a 16 ft pre-charged line set, and Zone Air offers single-run pre-charged line sets from 5 ft to 75 ft to match your layout, including a standalone 25 ft pre-charged line set kit. Zone Air systems receive final assembly, testing, and inspection in the USA.
A single continuous line set means just one pair of quick-connect connections, versus a coupled MRCOOL run with a second joint. In a garage with overhead doors, shelving, and limited wall space, cleaner routing also matters. The line sets are rated for R-454B pressures and pre-charged at the factory, so no vacuum pump or EPA certification is needed.
On price, the Zone Air 12,000 BTU 115V single-zone system is $1,999.99 (23 SEER2) and the 12,000 BTU 230V version is $2,049.99 (24 SEER2); a comparable MRCOOL DIY 5th Gen 12K 115V was about $2,370 at MRCOOL DIY Direct in September 2026.
Garage Mini Split Sizing and Cold-Climate Heating
Sizing a garage mini split system depends on square footage and insulation quality. General guidelines:
| BTU Capacity | Insulated Garage Size | Typical Use |
|---|---|---|
| 9,000 BTU | 200–400 sq ft | Single-bay, well-insulated |
| 12,000 BTU | 400–550 sq ft | Two-car, insulated ceiling/walls |
| 18,000 BTU | 600–800 sq ft | Large or poorly insulated |
Hyper heat mini splits are cold-climate heat pumps designed to maintain strong heating capacity down to around −22°F. Zone Air wall units and MRCOOL DIY 5th Gen E-Star models are listed to heat down to about −13°F, which covers most of the continental U.S.; MRCOOL's entry-level Easy Pro line is rated to 5°F, and higher-tier MRCOOL DIY models are rated lower. For garage owners in the coldest climates (Minnesota, North Dakota, Maine, interior Canada), a dedicated cold-climate model or a backup heat source may be necessary.
On efficiency, Zone Air's 12K 230V reaches 24 SEER2, while on 115V the two brands are within half a point (Zone Air 23 SEER2, MRCOOL 23.5 SEER2). At 5°F, Zone Air's COP2 of about 2.1 means the heat pump delivers roughly 2.1 units of heat per unit of electricity consumed. For most attached garages in moderate climates, a standard Zone Air or MRCOOL DIY heat pump with a solid HSPF2 rating is enough for year-round comfort. Not sure which size fits? Try the mini split sizing calculator.
Step-by-Step: Typical Garage Installation With a Pre-Charged Line Set
The indoor air handler mounts high on a garage wall, saving floor space. Follow these steps, and always defer to your unit's installation manual:
- Choose the air handler location. Pick a side wall clear of shelves and garage doors with a direct path to the outdoor condenser. Leave the ceiling and side-wall clearances and the minimum mounting height listed in your manual (typically several inches from the ceiling and roughly 6.5 ft or more off the floor).
- Mount the wall bracket. Find studs (16" or 24" on center), use a level, pre-drill, and anchor securely. The bracket must be level for proper condensate drainage.
- Drill the wall penetration. Most kits call for a hole around 3 to 3.5 inches in diameter, angled slightly downward to the outside. Insert the sleeve, then seal with silicone and foam to prevent air infiltration and garage fumes from entering the house.
- Hang the air handler. Feed the line set, drain hose, and control cable through the hole. Confirm the drain slopes downward and the unit clicks firmly into the bracket.
- Place the outdoor condenser. Set it on a pad or wall bracket near the garage exterior, raised off the ground to protect against snow and debris. Keep it clear of debris for airflow and leave clearance from fences and driveways per manufacturer specs.
- Route and connect the pre-charged line set. Carefully uncoil the line, avoiding kinks. Hand-thread quick-connect fittings at both ends and tighten with two wrenches to the manufacturer's torque guidance.
- Leak-check. Once the fittings are connected and the system is pressurized, brush a soap solution on every fitting and watch for bubbles.
- Insulate and protect. Cover the line set with UV-rated tape and a line set cover kit to protect exposed copper from sun and weather.
- Electrical. Zone Air's 9K and 12K 115V models run on a dedicated 15A, 110–120V circuit with a single-pole breaker, and an optional cord kit lets the condenser plug into a dedicated GFCI outlet with a weatherproof cover where local code allows (never a shared circuit or extension cord). MRCOOL's 115V units are hardwired to a disconnect, and the 5th Gen 12K calls for a 20A breaker. For 208 to 230V units, electrical work often requires a new breaker, disconnect, and possibly a licensed electrician.
- First startup. Use the remote or smartphone app to test heating and cooling modes. Confirm condensate drains outside the garage. Verify quiet operation; Zone Air wall units run from 30 dB(A) on mute to 46 dB(A) on turbo.
For a more detailed walkthrough, see our pre-charged DIY mini split installation guide.
MRCOOL DIY vs Zone Air: Specs and Price
How the two brands compare on the specs that matter for a garage:
| Spec | Zone Air 12K | MRCOOL DIY 5th Gen 12K |
|---|---|---|
| Voltage | 115V or 230V | 115V |
| SEER2 | 23 (115V) / 24 (230V) | 23.5 |
| HSPF2 (Region IV) | 10.0 | 10.2 |
| Heating floor | −13°F | About −13°F (E-Star) |
| Price (single-zone) | $1,999.99 (115V) / $2,049.99 (230V) | About $2,370 (Sept 2026) |
| Line set | 16 ft included; 5–75 ft available | 25 ft included; 11.5/16/35/50 ft, coupled up to 75 ft |
| 115V wiring | Dedicated 15A circuit, optional cord kit | Hardwired, 20A breaker |
| Multi-zone options | Wall, cassette, concealed ducted | Wall, cassette (DIY Hybrid ducted air handler is a separate full-size unit) |
| Warranty (compressor/parts) | 7 yr / 5 yr, no registration | 7 yr / 5 yr, no registration |
Upgrading to a 22+ SEER2 mini split can meaningfully cut cooling costs compared to older 14 SEER equipment or window units, especially in a garage used daily as a shop or office.
For a garage plus a nearby bonus room or ADU, Zone Air multi-zone systems run 2 to 3 wall, cassette, or concealed ducted heads on one outdoor condenser; MRCOOL's multi-zone matchup tables list only wall and ceiling cassette heads; its DIY Hybrid ducted air handler is a separate full-size unit.
On reviews, MRCOOL's Trustpilot profile showed 3.2 out of 5 from 89 reviews (September 2026), while Zone Air publishes about 4.8 out of 5 across 150+ verified customer reviews (different review sources, not directly comparable).
Costs, Rebates, and Long-Term Value
- Equipment: about $1,900 to $3,000 for 9k to 18k BTU systems (MRCOOL DIY or Zone Air DIY)
- Accessories: line set covers, wall brackets, pads, electrical whip, disconnect ($100–$300)
- Electrician fees (if a new circuit is needed): $200–$500 for a dedicated breaker and disconnect
ENERGY STAR certification applies only to select mini split models; confirm your chosen unit qualifies before counting on a rebate. The federal 25C energy efficient home improvement tax credit ended for equipment placed in service after December 31, 2025, so in 2026 the incentives that remain are mainly state and utility programs.
A well-maintained mini split can last 15 to 20 years. Clean filters regularly, wash condenser coils annually, and check line set insulation for UV damage.
FAQ: DIY Garage Mini Splits
Is a DIY mini split actually DIY?
Pre-charged systems like MRCOOL DIY and Zone Air DIY are designed for homeowners comfortable with basic tools. Mounting the air handler and routing the line set is within reach for most people. Electrical work for a new circuit may still require a licensed electrician for safety and code compliance.
What about warranty?
Both MRCOOL DIY 5th Gen and Zone Air offer 5-year parts and 7-year compressor coverage on self-installs when instructions are followed, and neither requires registration for that standard coverage. Zone Air's coverage begins at the proof-of-purchase date, and DIY installation does not void it. Pioneer systems use flare line sets that require a vacuum pump, and Pioneer's longer coverage depends on registering within one week after proper installation. Senville's warranty states that DIY installation voids coverage.
Can one unit condition the whole garage?
One properly sized wall-mounted air handler usually handles most one- to three-bay garages. Seal door gaps and add insulation to maximize capacity. For a garage plus an adjoining office or bonus room, a multi-zone system (one outdoor unit, two or three indoor heads) is an option.
What about noise?
Indoor sound levels compare to a quiet room fan. The mounted indoor unit and outdoor condenser are acceptable trade-offs vs. noisy window units or portable ACs.
What maintenance does a garage mini split need?
Clean filters every 60 to 90 days (more often in a dusty workshop), wash the outdoor condenser coils once a year, and visually inspect the line set insulation for cracks or UV degradation. All of it is DIY-friendly with basic tools.
Our Recommendation
We sell Zone Air, so weigh this accordingly. Both brands are true DIY mini splits, and for a garage the deciding factors are usually run length, wiring, and price. If your condenser run is not close to 25 ft, if you want a 115V unit that can plug into a dedicated GFCI outlet where code allows, or if you want the lower 12K price listed above, Zone Air is a good fit. If a 25 ft run fits your layout, you want the slightly higher 115V SEER2 (23.5 vs 23), or you prefer buying from a local store, the MRCOOL DIY 5th Gen is a solid choice. Either way, size the garage correctly, check your panel capacity (115V vs 230V), and decide whether your climate calls for a dedicated cold-climate model. You can compare sizes in our DIY wall mount mini split collection.
