Easiest DIY Mini Split Install: How Pre-Charged Line Sets Work

September 2, 2026

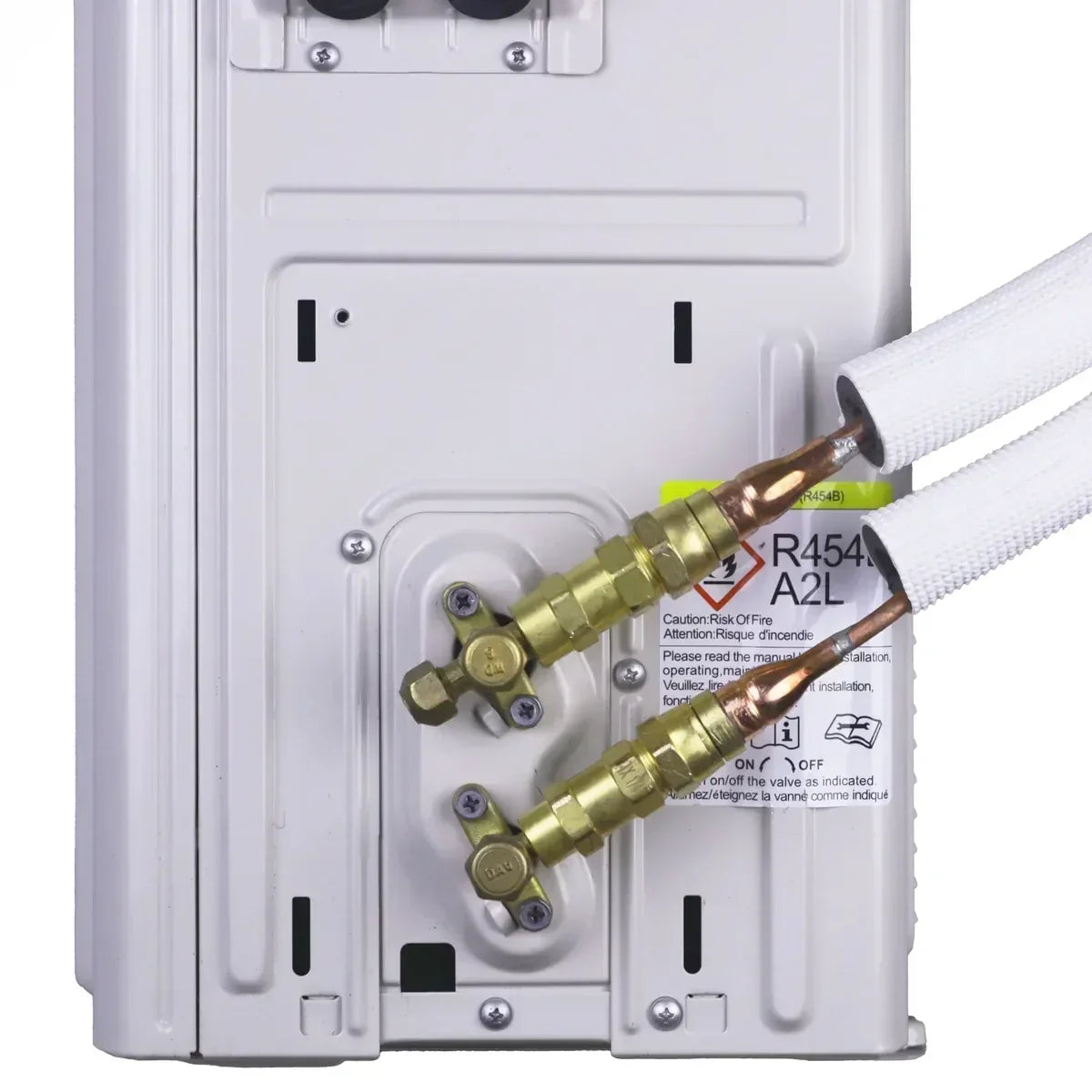

Pre-charged quick connect line set fittings connected to a Zone Air DIY mini split outdoor condenser

If you've been putting off adding heating and cooling to a garage, bonus room, or home addition because of contractor quotes, a DIY mini split with pre-charged line sets is worth a look. These systems let a homeowner handle the refrigerant side of the installation without a vacuum pump, gauges, or an HVAC license. This guide explains how pre-charged line sets work, what to plan before drilling, and the install steps from bracket to first startup.

Quick Answer: What Makes a DIY Mini Split Easy to Install?

The easiest DIY mini split installs use factory-sealed, pre-charged line sets filled with refrigerant at the factory. You never touch refrigerant, never need manifold gauges, and never need an HVAC technician for the refrigerant circuit. Compared with hiring a contractor, the whole job can save you $3,000–$5,000.

MRCOOL DIY and Zone Air are the two DIY mini split brands in this guide that offer true quick-connect, no-vac line sets. Both offer 115V 9K and 12K models with a line set included; MRCOOL's extra sets come in fixed lengths, while Zone Air cuts single-run sets to length.

Here's what "pre-charged line set" actually means: the refrigerant is already loaded inside sealed copper lines at the factory. Internal valves stay closed until you torque the fittings to spec. No vacuum pump, no brazing, no refrigerant handling. That's what turns a job that traditionally required a licensed technician into a realistic weekend project.

What Is a DIY Mini Split with Pre-Charged Line Sets?

A DIY mini split is a ductless heat pump system designed for homeowner installation. Every system has three core parts: an indoor air handler, an outdoor condenser, and a pre-charged line set connecting them. It provides independent climate control for individual rooms without ductwork.

What separates pre-charged line sets from standard copper line sets:

Standard line sets arrive empty. A technician must braze or flare the fittings, pull a vacuum, and charge the system with refrigerant on-site. That requires EPA Section 608 certification and professional equipment.
Pre-charged line sets arrive factory-loaded with R-454B refrigerant (the current low-GWP standard). Internal spring-loaded valves keep the circuit sealed, and quick-connect fittings prevent refrigerant loss during installation.
Both MRCOOL DIY and Zone Air have moved to R-454B across their 2026 lineups, meeting federal and state environmental regulations. Pioneer and Senville, by contrast, do not offer true quick-connect pre-charged lines on most models.

Each air handler in a multi-zone system gets its own matched line set, sized and charged for its BTU capacity.

How Quick-Connect Line Sets Work (MRCOOL DIY Example)

MRCOOL's quick-connect pre-charged line set is well documented. Here's how the connection works on its 5th Gen models:

Each pre-charged line set has spring-loaded valves on both ends. The valves open only when the coupler is fully torqued to spec, allowing refrigerant to flow.
Diameter pairings for 2026 5th Gen models: 1/4″ × 3/8″ liquid/suction for 9,000 and 12,000 BTU units, 1/4″ × 1/2″ for 18,000 BTU, and 3/8″ × 5/8″ for 24,000 BTU and up.
The installer removes protective caps, aligns the fittings, hand-tightens, then uses a torque wrench to reach the manufacturer's spec. That's when internal valves open and the system pressurizes.
No vacuum pump, manifold gauges, nitrogen, or brazing torch are needed.
MRCOOL publishes third-party lab results for its couplers, including a 400 PSI, 8-hour pressure test and a pull test.

MRCOOL pre-charged line sets come in 11.5, 16, 25, 35, and 50 ft lengths; the 25 ft complete-system set and the 35 and 50 ft sets include the communication cable.

MRCOOL DIY vs Zone Air: What Affects Install Difficulty

Both brands use true pre-charged line sets and quick-connect technology. The differences that matter for installation:

Voltage: Zone Air's 9K and 12K models are available in 115V versions that run on a dedicated 15A circuit and, with the optional cord kit, plug into a dedicated GFCI outlet where local code allows. Many MRCOOL DIY models above 12K require 230V, which can mean panel work and an electrician.
Efficiency: Zone Air's 12K 230V model is rated 24 SEER2 (the 12K 115V is 23 SEER2). MRCOOL's 5th Gen 12K is about 23.5 SEER2.
Cold climate: Both brands rate heating performance down to roughly −13°F.
Buying experience: Zone Air bundles a correctly sized pre-charged line set with each unit, and MRCOOL's complete systems include a 25 ft set. MRCOOL's catalog has many line set SKUs across generations, so double-check diameter and generation when ordering; a mismatched line set can void the warranty.
Where to buy: MRCOOL sells through big-box and online retailers. Zone Air sells direct and through dealers.

WiFi control is available on both brands.

Planning Your DIY Mini Split Layout (Before You Drill)

Before any holes go in the wall, plan the full route from indoor unit to outdoor unit:

Indoor air handler location: Choose an exterior wall, away from direct sun exposure, with a clear path for the condensate drain to slope downward and outside.
Line set route: Count the distance, number of bends, and vertical rise between indoor and outdoor unit. Shorter, cleaner runs preserve capacity. Longer runs with excessive bends reduce efficiency and risk oil return issues.
Line set lengths: Included lengths are typically 16–25 ft. MRCOOL sells fixed lengths (longer runs join two sets with couplers); Zone Air offers custom single-run lengths. Shorter is always better for performance.
Matching matters: Each indoor unit must have its own matched line set. Mixing diameters or stretching beyond approved length can void the warranty.
Accessories: Line set covers, wall sleeves, and outdoor brackets protect the system from UV, snow, and physical impact, and tidy up a visible exterior wall.

Use a mini split sizing calculator to confirm your BTU capacity before purchasing.

Step-by-Step DIY Install: From Mount to First Cool Air

The process is similar across MRCOOL DIY and Zone Air systems. The job can be completed in a few hours, but first-timers should budget at least eight. Always follow your manufacturer's manual.

Mount the indoor bracket: Secure it to wall studs using a level. The air handler hangs on this bracket.
Drill the wall penetration: Use a hole saw to create a slightly downward-sloped hole for the line set, condensate drain, and communication wire.
Feed lines through the wall: Bundle the pre-charged lines, drain hose, and control cable. Route carefully through the hole from inside to outside.
Uncoil and route outside: Straighten the line set along your planned path without kinking, especially the larger-diameter suction line. Sweep curves, not sharp bends.
Set the outdoor unit: Place the condenser on a level pad, stand, or wall bracket with adequate airflow clearance on all sides.
Make connections: Connect the line set first to the indoor unit, then to the outdoor unit using the quick-connect coupler. Torque each connection to manufacturer spec with a torque wrench. This is where the internal valves open and the system charges itself.
Final steps: Open service valves on the outdoor unit (if required by model), connect power, verify the communication wire is seated, and run a first test cycle. Check for leaks, abnormal noise, and proper airflow.

For a photo walkthrough, Zone Air's install guide covers each phase with diagrams.

Do You Need an HVAC License or Electrician?

With true pre-charged line sets from MRCOOL DIY or Zone Air, you never open the refrigerant circuit beyond factory-sealed fittings, so no EPA Section 608 certification is required for the refrigerant side of the install.

Electrical rules still apply. Many 230V systems require a dedicated circuit, disconnect box, and proper wire gauge, work that may require a licensed electrician depending on your municipality.
115V models on a dedicated 15A circuit can reduce or eliminate electrician costs where a suitable circuit already exists.
Always check local building and electrical codes. Requirements for permits, disconnect switches, and GFCI protection vary by state.
Even without a legal requirement, confirming breaker sizing and wire gauge with a qualified electrician is a smart move.

Choosing the Right Pre-Charged DIY Mini Split System

Start with the room, not the brand. Use BTU capacity as your anchor:

Room Type	Approximate Size	Suggested BTU
Small bedroom / office	Up to 450 sq ft	9,000 BTU
Medium room / large bedroom	450–600 sq ft	12,000 BTU
Open living area / garage	600–1,000 sq ft	18,000–24,000 BTU

Then compare on the factors that actually matter:

Efficiency: Higher SEER2 means lower running costs over the life of the system. Look for ENERGY STAR certification on whichever brand you choose.
Warranty: Zone Air and MRCOOL DIY 5th Gen both carry 5-year parts / 7-year compressor coverage. Either warranty can be voided by unauthorized modifications or mismatched line sets. Zone Air also has a 30-day return policy for uninstalled systems.
Rebates: The federal 25C tax credit ended for systems installed after December 31, 2025, but state and utility programs may still offer rebates for cold-climate rated, high-SEER2 equipment. Check your specific model's certifications.
Line set fit: Match line set diameter and maximum length to your system's BTU rating to avoid ordering mistakes.

Our recommendation

We sell Zone Air, so weigh this accordingly. MRCOOL is the practical choice if one of its fixed line set lengths fits your run. Zone Air suits first-time installers who want a 115V 9K or 12K unit on a dedicated 15A circuit, a matched line set bundled with the unit, and up to 24 SEER2 on the 12K 230V model.

Map your room and confirm the BTU capacity you need.
Verify your electrical setup (115V dedicated circuit or 230V).
Choose a system with the matching pre-charged line set length.
Block out a weekend for the install.

You can compare our single-zone DIY mini split systems, including the 115V models, by size and voltage.
