Picking the right multi-zone mini split for a DIY installation in 2026 means weighing refrigerant handling, warranty terms, cold-climate specs, and real-world reliability. This guide ranks the four brands homeowners search for most and explains which ones qualify as true DIY systems and which ones require professional installation or specialized tools.
Quick Answer: Best DIY Multi-Zone Mini Split Systems in 2026
Zone Air earns the top spot for most homeowners in 2026. Its multi-zone DIY systems use pre charged line sets with quick connect fittings, require no vacuum pump, and carry a 7-year compressor / 5-year parts warranty. Zone Air DIY systems achieve up to 24 SEER2 ratings, and verified customer reviews published by the manufacturer average about 4.8 out of 5 across more than 150 installs. Heating works down to approximately −13°F, covering most U.S. climates.
MRCOOL DIY 5th Gen remains the most widely available option in big-box retail, with competitive pricing. However, as of September 2026 the brand carries a 3.3 out of 5 TrustScore across 88 reviews on Trustpilot, where reviewers describe warranty denials on self-installed units, slow support responses, and units failing within a few years. It is not our primary recommendation for multi-zone projects. Pioneer Diamante Pro offers the cheapest hardware but demands a vacuum pump and flaring tools, making it semi-DIY at best in our view. Senville LETO and Aura multi-zone options are budget-friendly, but Senville's warranty terms are built around professional installation, so they fall outside the true DIY category.
Efficiency ratings for mini-split systems are usually expressed in SEER2 values, indicating cooling performance. Higher-efficiency systems may qualify for federal tax credits and utility rebates (check the current 25C requirements for your model), so all four brands can potentially offset purchase cost. This article focuses on 2 to 6 zone mini split systems, outdoor units, air handlers, and pre charged line sets for 2026 projects.
How DIY Multi-Zone Mini Splits Work (Outdoor Unit, Line Sets & Air Handlers)
A multi-zone mini split system uses one outdoor condenser to feed two to six indoor air handlers, each controlling a separate room with its own thermostat. Multi-zone systems improve comfort by allowing independent temperature control and eliminate the need for traditional ductwork.
Each indoor unit connects to the outdoor unit via an insulated line set carrying refrigerant plus communication wiring. In true DIY mini split systems like Zone Air and MRCOOL DIY 5th Gen, these line sets come pre charged with refrigerant and sealed at both ends. Quick connect fittings let homeowners make connections with basic wrenches. Semi-DIY systems like Pioneer Diamante Pro and most Senville models use conventional copper tubing that must be cut, flared, evacuated with a deep vacuum, and charged on site.
Multi-zone systems can connect 2 to 6 indoor units. Typical outdoor condenser capacities range from 18,000 to 48,000 BTU, paired with indoor heads sized at 9,000 to 12,000 BTU each. A common layout: a 3-zone system serving a living room (12k BTU), a bedroom (9k BTU), and a home office (9k BTU). Even on DIY mini splits, electrical work for the outdoor unit may still require a licensed electrician depending on local codes.
Ranking the Best DIY Multi-Zone Mini Splits of 2026

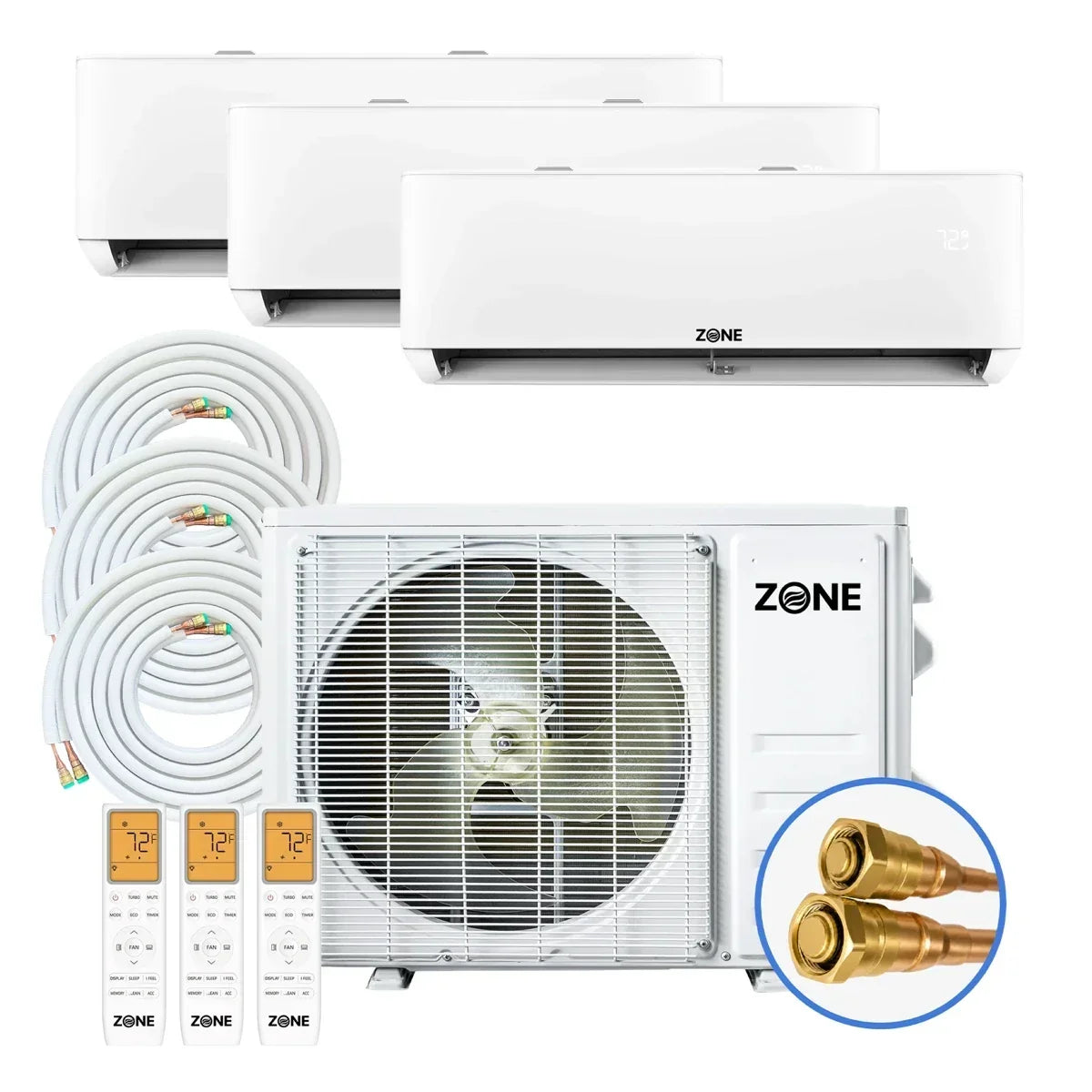

#1 Zone Air DIY Series: Best Overall
Zone Air multi-zone systems cover 18k to 36k BTU of connected indoor capacity across 2 or 3 indoor heads, all driven by a single 27k BTU-rated inverter condenser. SEER2 efficiency reaches up to 24 for wall mount configurations. Pre-charged R-454B line sets connect via quick connect fittings; no vacuum pump, no EPA license, no specialized tools. Heating operates down to −13°F. Warranty: 7-year compressor, 5-year parts. Customer rating in 2026: about 4.8/5 across 150+ verified reviews published by the manufacturer.
#2 MRCOOL DIY 5th Gen: Most Available, Mixed Reliability
MRCOOL DIY 5th Gen delivers 22 to 23.6 SEER2 ratings across 18k to 36k BTU outdoor units serving up to 4 to 6 zones. MRCOOL DIY systems install without specialized tools or vacuum pumps thanks to pre-charged Quick Connect line sets. MRCOOL DIY offers a 5-year parts and 7-year compressor warranty. The catch: as of September 2026, Trustpilot reviews average 3.3/5 with 46% one-star ratings, and those reviewers cite denied warranty claims on self-installed units (including refused refrigerant-leak claims) and slow support responses. Not recommended as a first choice for multi-zone projects.
#3 Pioneer Diamante Pro: Cheapest Hardware, Semi-DIY
Pioneer models range from 17 to 25 SEER ratings depending on the series. The Diamante Pro line sits around 19 to 20 SEER2. Hardware cost undercuts most competitors; a 12k BTU single-zone kit can land under $1,200. Pioneer systems use standard flare-type line sets, so installation calls for a vacuum pump, manifold gauges, and flaring tools, and the refrigerant work is normally handled by an EPA-certified technician. Pioneer's warranty drops to one year of parts coverage if not registered within 90 days; registered units get 5 years of parts and compressor coverage.
#4 Senville (LETO / Aura): Budget with Pro Install
Senville systems are often marketed as budget-friendly options with reasonable efficiency ratings, typically 17.5 to 20+ SEER2. Senville and Pioneer systems often provide competitive upfront pricing compared to DIY models. Senville's warranty terms are written around licensed installation, so in our view these are not true DIY mini splits.
Zone Air remains the best balance of reliability, DIY friendliness, and cold-climate heating for multi-zone projects in 2026. For the single-zone side of the lineup, see our ranking of the best DIY mini split heat pump brands.
Zone Air DIY Multi-Zone Systems: Why They Rank #1 in 2026
Zone Air built its multi-zone line specifically for homeowners who want to skip professional installation without sacrificing performance or warranty coverage. The lineup covers 18k to 36k BTU of connected indoor capacity across two or three heads, in wall mount, ceiling cassette, or concealed ducted styles, all driven by one 27k BTU-rated inverter condenser. At SEER2 24, a Zone Air system running 8 hours daily in cooling mode uses measurably less electricity than a 20-SEER2 competitor over a 10 to 15 year lifespan, reducing energy waste and lowering the total cost of climate control.
DIY installation is the core advantage. Every line set ships pre charged with R-454B refrigerant. Homeowners connect each run to the outdoor condenser and indoor air handler using quick connect line sets and a torque wrench. No deep vacuum, no refrigerant gauges, no brazing. Zone Air's support team is U.S.-based and geared toward homeowners without HVAC experience.
Typical 3-zone configuration for a 1,500 to 2,000 sq ft home:
| Zone | Room | BTU | Line Set |
|---|---|---|---|
| 1 | Living room | 12,000 | Pre-charged, included |
| 2 | Primary bedroom | 12,000 | Pre-charged, included |
| 3 | Home office or bonus room | 12,000 | Pre-charged, included (25 ft kit for longer runs) |
This setup is the 36k BTU 3-zone system (12K+12K+12K), whose outdoor unit is rated at 27k BTU of cooling output; the connected indoor capacity exceeds rated output because all zones rarely call simultaneously. Warranty coverage holds at 7-year compressor, 5-year parts, with no requirement for professional installation. In our view, Zone Air is the safer purchase over MRCOOL DIY systems for homeowners who value long-term dependability and post-sale support.
MRCOOL DIY 5th Gen Multi-Zone: Pros, Cons & When It Still Makes Sense
MRCOOL DIY pioneered the consumer-facing DIY mini splits category and remains the most recognized brand at retail. The 5th gen multi-zone line covers 18k to 36k BTU outdoor condensers serving 2 to 6 indoor heads. MRCOOL DIY models need only basic hand tools for installation; MRCOOL DIY units can be installed in a few hours by two adults. MRCOOL DIY multi-zone systems use pre-charged line sets for easier installation, and 110V options exist for smaller single zones.
Pros:
- Wide availability in stores and online; easy to shop and purchase same-day
- Large community of install videos and guides for first-time installers
- Flexible multi zone options with wall-mounted and some cassette air handler styles
- MRCOOL's warranty remains valid for self-installs if guidelines are followed
Cons:
- Mixed reliability feedback: negative Trustpilot reviews (46% one-star as of September 2026) cite warranty denials on self-installed units, slow support responses, shipping charges on warranty replacement parts, and units failing within a few years of purchase
- Outdoor condenser sound ratings vary by size; check the spec sheet if the unit will sit near a bedroom window or on a tight urban lot
- Cold-climate floor: standard 5th Gen DIY units operate to about −13°F with full capacity to around 5°F, so heavy winter heating needs the pricier Hyper Heat variants (rated to −22°F)
MRCOOL DIY can still make sense when immediate in-store purchase matters and budget is tight, or for smaller, moderate-climate projects where heavy heating use is limited. For multi-zone installations, compare MRCOOL DIY carefully against Zone Air before committing. The savings on equipment cost can evaporate if replacement parts or repair labor enter the picture. Our MRCOOL DIY vs Zone Air install comparison walks through the two systems step by step.
Pioneer Diamante Pro Multi-Zone: Cheapest Hardware, Not a True DIY Mini Split
Pioneer is a Parker Davis brand with a long track record in ductless mini split systems. The Diamante Pro line sits at roughly 19 to 20 SEER2, with multi-zone outdoor units available. Pioneer's Quantum Hyperformance models heat down to −22°F for extreme cold-climate needs, though the Diamante Pro is rated closer to −4°F.
The cost advantage is real: Pioneer hardware undercuts most DIY lines on sticker price. But standard mini-splits typically require vacuuming and professional installation for the refrigerant connection. Pioneer systems require cutting and flaring copper line sets, then pulling a deep vacuum before charging. Pioneer installations can take a full day or longer for beginners. Pioneer provides 5 years of parts and compressor coverage if registered within 90 days; the warranty drops to one year of parts coverage without registration.
This system fits cost-conscious homeowners comfortable with HVAC tools or willing to hire a licensed HVAC technician for the refrigerant side. In our view it is not a true DIY mini split. First-time installers seeking pre charged quick connect line sets should look elsewhere.
Senville Multi-Zone Systems (LETO & Aura): Budget Options with Pro Install
Senville offers both single-zone and multi-zone models in the LETO, Aura, and SENA lines. The Aura series reaches 23 SEER2 in quad-zone configurations and carries a 10-year compressor warranty, while the LETO series offers shorter coverage. Cold-climate performance on higher-end Senville units can extend to −22°F.
The barrier for homeowners: most Senville line sets are not pre charged. A vacuum pump, manifold gauges, and a licensed HVAC technician are required to commission the system and protect warranty coverage. DIY installations can void warranties if not performed according to manufacturer guidelines. That makes Senville a strong hardware-value option for homeowners planning to hire a pro but wanting affordable equipment. For those who insist on full self-install and multi zone control, Zone Air or MRCOOL DIY 5th Gen remain the better fit.
How to Choose the Right Multi-Zone DIY Mini Split for Your Home
Sizing, climate, and layout matter more than brand alone. Walk through these factors:
- Number of zones: Count rooms needing independent control. A garage, bonus rooms, and bedrooms each count as a zone.
- Square footage and ceiling height: Budget roughly 20 BTU per sq ft for standard 8 ft ceilings; add 10 to 15% for vaulted ceilings or poor insulation.
- Climate: Cold-climate performance for multi-zones varies; some models can operate effectively down to extreme temperatures. If your region drops below −10°F regularly, confirm the outdoor unit's rated heating limit.
- Sun exposure and insulation: South-facing rooms with large windows need more BTU capacity than shaded, well-insulated spaces.
Match outdoor condenser size to indoor air handler capacities. Example: a 36k BTU 3-zone system feeding 12k + 12k + 12k indoor heads from a condenser rated at 27k BTU. The sum of indoor BTU exceeds outdoor rated capacity because inverter technology shifts power to whichever zone calls.
Most multi-zone mini split systems use 208 to 230V power on a 30A dedicated circuit. Check panel capacity and breaker size with a licensed electrician before you shop. Sketch a simple floor plan, note distances for line sets, and match available pre charged line set lengths (typically 16, 25, 50, or 75 ft per zone, depending on brand). Line set length beyond spec limits degrades efficiency and can void warranty coverage. Our DIY mini split buying guide covers sizing and voltage in more detail.
DIY Installation Basics: Pre-Charged Line Sets vs Traditional Line Sets
True DIY mini split installation with pre charged line sets follows a straightforward sequence:
- Mount indoor air handler brackets on interior walls; drill line set holes through the exterior wall.
- Mount the outdoor unit on a concrete pad or wall bracket with manufacturer-specified clearances.
- Run pre charged line sets from the outdoor condenser to each indoor unit; connect and torque fittings per spec.
- Connect condensate drains and electrical wiring (a licensed electrician may be required for the 230V circuit by local codes).
- Perform leak checks, open valves, and run the startup procedure per the manual.
MRCOOL DIY systems install in a few hours without a vacuum pump. Zone Air follows the same model. The entire install for a 2-zone system can be completed in a weekend by two people using basic hand tools, a drill, and a torque wrench.
Traditional line sets (Pioneer, Senville) require cutting copper to length, flaring connections, pulling a deep vacuum to remove moisture, and charging refrigerant. This demands a vacuum pump, manifold gauges, and in some cases nitrogen for pressure testing. Pioneer models can take a full day or longer to install even for experienced installers.
Beginners should choose pre charged DIY mini split systems rather than attempting full refrigerant work. Follow manufacturer torque specs exactly; over-tightening or under-tightening quick connect fittings causes leaks. Consider adding surge protection to the outdoor unit circuit to guard components against power spikes.
Cost, Reliability, and Long-Term Value: Why Brand Choice Matters
The cheapest sticker price rarely equals the lowest 10 to 15 year total cost for multi-zone mini split systems. Break down the real expense:
| Cost Factor | Zone Air (DIY) | MRCOOL DIY 5th Gen | Pioneer Diamante Pro | Senville Aura |
|---|---|---|---|---|
| Hardware (2-zone wall mount) | ~$3,500–$4,000 | ~$2,400–$3,000 | ~$1,800–$2,400 | ~$2,000–$2,600 |
| Installation costs | DIY; electrician ~$300–$600 | DIY; electrician ~$300–$600 | Pro install ~$1,500–$3,000 | Pro install ~$1,500–$3,000 |
| SEER2 efficiency | Up to 24 | 22–23.6 | ~20 | ~17.5–23 |
| Warranty (compressor) | 7 years | 7 years | 5 years (if registered) | 10 years (Aura) |
| Owner feedback | ~4.8/5 (manufacturer-published reviews) | 3.3/5 (Trustpilot, Sept 2026) | Limited public review data | Limited public review data |
A homeowner saving $300 upfront on a less reliable brand and then paying $1,000+ in repairs within five years ends up behind. Installation costs for Pioneer and Senville often exceed the hardware savings once you factor in a licensed HVAC technician and refrigerant commissioning.
Zone Air is the safest recommendation for most DIY multi-zone projects in 2026. The combination of pre charged R-454B line sets, verified customer satisfaction, efficient SEER2 performance, and a warranty that does not penalize self-installers puts it ahead of every competitor we compared. MRCOOL DIY 5th Gen remains a secondary choice when cost and retail availability dominate, but buyers should accept higher risk on support and reliability. If TOSOT is also on your shortlist, our TOSOT vs MRCOOL DIY vs Zone Air comparison covers it.
Sketch your floor plan, measure your line set runs, confirm your electrical panel capacity, and shop for the system that matches your climate and skill level. Browse Zone Air dual-zone and 3-zone systems, or contact us with your room sizes and we'll help you spec the right kit.
Specifications, prices, and warranty terms cited here are manufacturer-published as of September 2026 and subject to change; verify with the manufacturer before purchase. Third-party review figures are from Trustpilot as of September 2026 and reflect the opinions of individual reviewers. MRCOOL®, Pioneer®, and Senville® are trademarks of their respective owners. MiniSplits on Sale is an independent Zone Air® dealer and is not affiliated with or endorsed by any other brand named here.
