Easiest DIY Mini Split Install in 2026: Pre-Charged Line Sets, MRCOOL Easy Pro, and a Smarter Alternative

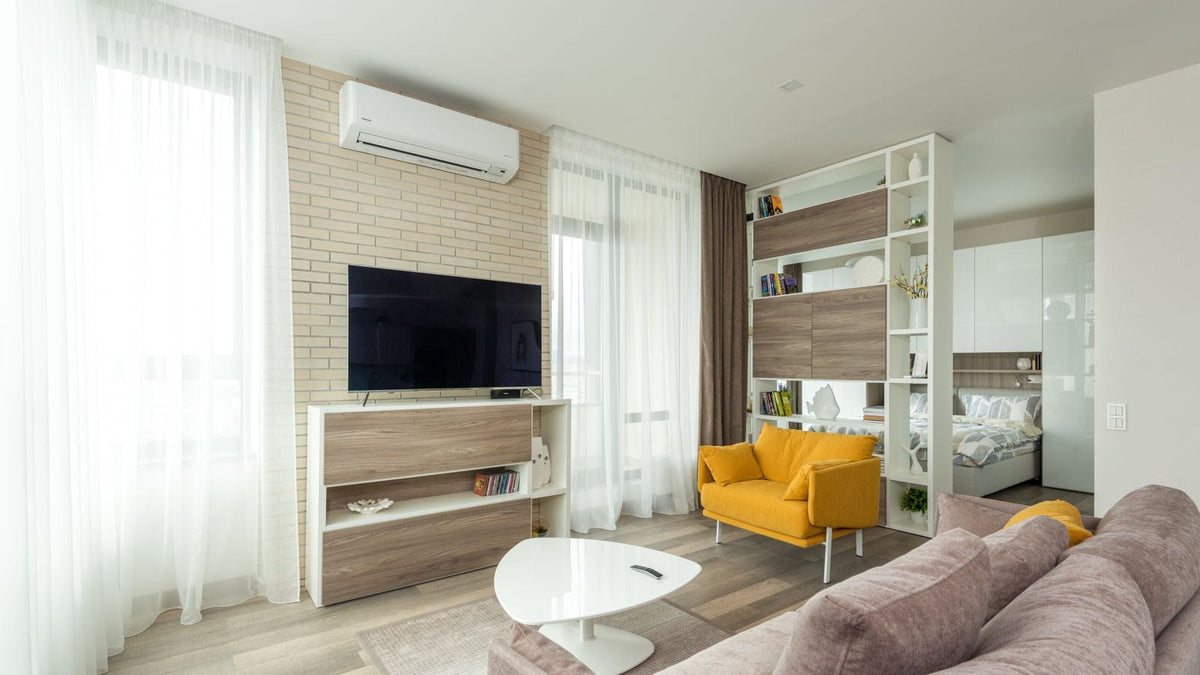

White ductless mini split wall unit on a brick living room wall, the type of pre-charged DIY install compared here: MRCOOL Easy Pro vs Zone Air

If you want to skip the contractors and handle your own heating and cooling, 2026 is the best year yet to do it. Here's exactly how pre-charged line sets, quick-connect fittings, and 115V power make a DIY mini split install something any handy homeowner can finish in a weekend.

Answer First: What Is the Easiest DIY Mini Split to Install in 2026?

The easiest DIY mini split install in 2026 uses a fully pre-charged mini split system with quick-connect line sets and a 115V outdoor unit. You don't need an HVAC license, a vacuum pump, or refrigerant gauges because the refrigerant is factory-sealed inside the pre-charged line and outdoor condenser.

MRCOOL DIY and MRCOOL Easy Pro are the big-box options with pre-charged line sets, but Zone Air is an even easier, higher-efficiency alternative with custom-length single-run line sets and 115V condensers that run on a dedicated 15A circuit. DIY mini split systems can save homeowners $3,000–$5,000 in installation costs by eliminating HVAC technician labor entirely, with most homeowners saving $1,000–$2,000 compared to budget professional installation.

  • Zone Air 9K BTU 115V: 23 SEER2, custom single-run line set 5–75 ft, $1,899.99, 5-yr parts / 7-yr compressor warranty with no registration required
  • Zone Air 12K BTU 230V: 24 SEER2, custom single-run line set 5–75 ft, $2,049.99, same warranty (the 12K 115V version is 23 SEER2 at $1,999.99)
  • MRCOOL Easy Pro 12K 115V (EZPRO-12-HP-11511DE-O): 19.5 SEER2, 11.5 ft pre-charged line set included, $1,599 at MRCOOL DIY Direct as of September 2026, 3-yr parts / 5-yr compressor warranty

Both brands aim to let homeowners finish a DIY mini split install using only basic hand tools. No special tools, no brazing, no gauges.

What "Pre-Charged DIY Mini Split" Really Means in 2026

Traditional mini splits require an HVAC technician to pull a vacuum on the line set, weigh in refrigerant with scales, and pressure-test the system with manifold gauges. That process demands expensive equipment and training most homeowners don't have.

Pre-charged line sets change the game. They are copper line sets shipped from the factory already filled with the correct charge of R-454B refrigerant and sealed with mechanical quick-connect valves at each end. A full DIY pre-charged mini split kit includes:

  • An outdoor unit (condenser) with its own factory refrigerant charge
  • One or more indoor air handler heads
  • Matching pre-charged line sets with quick-connect ends, ready to connect

This is different from older "pre-charged outdoor unit only" systems where a tech still had to charge the lines on site. Pre-charged line sets eliminate the need for vacuuming altogether. In 2026, leading systems like MRCOOL DIY, MRCOOL Easy Pro, and Zone Air have moved to A2L refrigerants such as R-454B, making factory charging and sealed connections critical for safety. Pre-charged line sets cannot be cut or altered once manufactured. They are available in fixed lengths of 16, 25, 35, and 50 feet for MRCOOL (the 66 and 75 ft options are two sets joined with couplers), or custom-cut to your exact measurement, from 5 to 75 feet, with Zone Air. Our pre-charged 12K and 18K installation guide covers sizing and tools in more depth.

How Pre-Charged Line Sets and Quick Connect Fittings Work

Quick-connect, no-vac technology is what makes a DIY mini split install possible without an HVAC license or specialized tools. Here's what's inside the box and how the connection works.

Each pre-charged line consists of copper tubing sized for the suction and liquid lines, wrapped in insulation, with a spring-loaded valve at each end holding the refrigerant charge inside. MRCOOL's Quick Connect system prevents refrigerant loss during installation, and MRCOOL describes its quick-connect fittings as patented. Zone Air follows comparable quality standards for its valves and sealing.

The connection sequence homeowners follow:

  1. Remove protective caps only when you're ready to connect
  2. Carefully align male and female quick-connect fittings
  3. Always hand-tighten threaded connections first to prevent cross-threading
  4. Torque to the manufacturer's specified value so the internal valves open fully
  5. Perform a leak check before sealing the refrigerant lines. Test for refrigerant leaks with a soapy water solution before opening valves

MRCOOL says its line sets and connections are leak-tested at 400 PSI for at least eight hours and that its couplers withstand over 500 pounds of pull force in testing. You must never cut, re-flare, or braze a pre-charged line set. Doing so releases factory refrigerant, voids the warranty, and may violate EPA rules on refrigerant handling.

MRCOOL DIY & Easy Pro vs Zone Air: Pre-Charged Line Set Options

MRCOOL DIY and Easy Pro are sold through big-box retailers and MRCOOL's own online stores. Zone Air is a direct-to-consumer brand, also carried by distributors like MiniSplits on Sale, designed for easier installs and better value. The structural differences matter more than the marketing.

Line sets, the biggest difference:

MRCOOL DIY pre-charged line sets come in fixed lengths of 16 ft, 25 ft, 35 ft, and 50 ft with common diameter pairs (1/4" × 3/8", 1/4" × 1/2", 3/8" × 5/8"), pre-charged with R-454B and compatible with DIY single-zone, multi-zone, and Easy Pro units. If your run is about 60 ft, you must join a 25 ft and a 35 ft line set with a coupler, adding extra quick-connect joints and leak points (MRCOOL's own longer line set guide explains the coupler approach). If your run is 40 ft, you coil 10 extra feet of copper behind the condenser.

Zone Air's custom-cut, single-run pre-charged line sets range from 5 ft to 75 ft. A 40 ft install gets an exact-length line. No excess coil, no coupler, no extra valves. Fewer joints means a more reliable system with fewer potential leaks over its lifetime. Installation involves connecting indoor and outdoor units with quick fittings regardless of brand, but Zone Air reduces the total connection count. Need a longer run than the included 16 ft? Extra pre-charged line set kits are available.

Efficiency and price:

Zone Air single-zone units reach 24 SEER2 on the 12K 230V model (23 SEER2 on the 115V and 18K models), while MRCOOL DIY 5th Gen E-Star tops out at 23.6 SEER2 on its 12K 230V model and Easy Pro units sit at 19.5–20.2 SEER2. Over time, that gap translates to meaningful cooling cost savings, especially against Easy Pro. A 12,000 BTU single-zone MRCOOL DIY 5th Gen E-Star kit lists at $2,359–$2,370 at MRCOOL's own online stores as of September 2026, while a comparable Zone Air system runs $2,049.99 (230V) or $1,999.99 (115V), roughly 13–15% less thanks to direct-to-consumer pricing. Note that MRCOOL DIY kits include a 25 ft line set versus Zone Air's 16 ft, so factor that in on long runs.

Reviews and multi-zone flexibility:

MRCOOL's reviews are notably mixed: its Trustpilot page sits at 3.2/5 from 89 reviews (47% one-star) as of September 2026, with reviewers describing warranty claims denied on self-installed units, slow support responses, and shipping charges on warranty replacement parts. Zone Air's manufacturer-published customer reviews average about 4.8/5 across 150+ reviews. Zone Air also supports mix-and-match multi-zone setups: wall-mounted, cassette, and concealed ducted air handler types on a single outdoor unit. MRCOOL DIY multi-zone covers wall and cassette heads plus a larger ducted air handler, but no slim concealed-duct head, which matters for whole-house layouts or anyone who might add a head later.

Planning Your DIY Mini Split Install: Line Set Path, Length, and Power

Before you drill a single hole, plan the route from the indoor air handler to the outdoor unit. Measure with a tape, including vertical rise, bends around corners, and obstacles. Choose the shortest practical path to minimize refrigerant flow restriction.

  • Fixed-length MRCOOL DIY line sets force compromises: extra slack coiled behind the outdoor unit or multiple sections joined with couplers. Zone Air's custom-length pre-charged line sets eliminate most of this guesswork.
  • Each indoor air handler in a multi-zone DIY mini split needs its own dedicated line set run. You cannot share copper between heads.
  • Minimizing bends in the line set is important to prevent refrigerant flow restriction, and kinking the copper line set can damage it and impede refrigerant flow permanently.
  • MRCOOL's 115V models are hardwired to a disconnect (the DIY 5th Gen 12K 115V specs a 20A breaker), and its 18K and larger systems need a 208/230V circuit. Zone Air's 9K and 12K 115V condensers run on a dedicated 15A circuit and, with the optional cord kit, plug into a dedicated GFCI outlet where local code allows, the simplest possible power connection.
  • Electrical connections must comply with local building codes and requirements. Even if no HVAC license is needed for the refrigerant side, a 240V circuit or new subpanel may require a permit or licensed electrician.
  • Outdoor condenser units should be placed on a solid, level surface or a wall bracket, clear of obstructions for proper airflow and service access.

Step-by-Step Overview: From Drilling the Hole to Powering On

This is a high-level installation roadmap for any DIY mini split with pre-charged line sets, whether MRCOOL DIY, Easy Pro, or Zone Air. Always follow your manufacturer's manual. MRCOOL systems are designed for DIY installation without HVAC training, and Zone Air's process is equally simple.

  1. Mount the indoor air handler. Selecting the right indoor wall location is crucial for airflow clearance. Find studs, and make sure mounting plates are secured to wall studs for better support. Keep the unit level. A slightly uneven indoor unit can cause drainage problems.
  2. Drill the wall penetration. The diameter of the wall hole typically ranges from 2.5 to 3.5 inches. Drilling a wall penetration hole requires a slight downward slope toward the outside for proper drainage. Check from both sides to avoid hitting electrical or plumbing lines.
  3. Route the line set. Slowly uncoil the insulated pre-charged line, maintain a wide radius on turns, and protect the suction line from kinks. Condensate drainage requires a continuous downward slope without dips or sags.
  4. Connect the air handler. Remove caps only when ready. Align the quick-connect fittings by hand, then torque with wrenches to the specified value so valves open fully. The fittings need the manufacturer's specific torque values to avoid leaks or damage.
  5. Connect the outdoor unit. Set the condenser on a level pad or wall bracket. Connect the other end of the line set to the outdoor condenser's quick-connect ports, then secure and insulate exposed fittings.
  6. Startup checks. Verify valves are open, power on the system, run it in cooling and heat modes, and listen for unusual sounds. Do a basic leak check with soapy water on accessible joints. Installation requires no specialized HVAC tools or training for any of these steps.

Never modify or extend pre-charged line sets beyond the manufacturer's allowed methods. Excess slack should be neatly coiled and supported, never cut.

Protection, Warranty, Efficiency, and Rebates in 2026

Getting a DIY mini split running is only half the job. Long-term protection, warranty compliance, and efficient operation determine whether the system pays off.

  • Line set covers: Protecting exposed lines from UV and pests preserves insulation quality and extends lifespan. Line hide systems improve curb appeal and protect against snow, ice, and physical damage for both MRCOOL and Zone Air installs.
  • Warranty: MRCOOL Easy Pro offers 3-year parts and 5-year compressor coverage on the current 12K 115V model (MRCOOL DIY Direct listing); MRCOOL's DIY 5th Gen line carries 5 years parts and 7 years compressor. Zone Air offers 5 years parts and 7 years compressor with no registration required, and DIY installation does not void it (Zone Air warranty terms). Cutting, re-flaring, or brazing a pre-charged line, or using mismatched diameter line sets, voids coverage on both brands.
  • Efficiency: Zone Air reaches 24 SEER2 on its 12K 230V single-zone unit and 23 SEER2 on the rest; MRCOOL DIY 5th Gen E-Star runs 22.5–23.6 SEER2 and Easy Pro 19.5–20.2. Over a system's life, especially in hot or mixed climates, the Easy Pro gap adds up to real savings on your power bill.
  • Rebates: Many high-SEER2, high-HSPF2 models qualify for state or utility rebates. The federal 25C energy-efficient home improvement tax credit is not available for equipment placed in service after December 31, 2025, so check state and utility incentive databases for your specific model before shopping.

Register your warranty where the brand requires it (Zone Air and MRCOOL DIY 5th Gen don't), keep your receipts, and take photos of every connection during your install for future support or rebate claims.

Is a DIY Pre-Charged Mini Split Right for You?

Ask yourself: are you comfortable with a drill, a wrench, a ladder, and reading instructions for at least a few hours? If yes, a pre-charged mini split can deliver comfort, control, and serious savings for your room, garage, or whole-home space.

  • MRCOOL DIY or Easy Pro fits well for a single bonus room or garage where fixed line set lengths align with your run and you want to buy in person at a big-box store.
  • Zone Air is the ideal choice for odd distances, multi-zone layouts mixing wall, cassette, and concealed ducted heads, or homeowners who want maximum efficiency at 24 SEER2, 115V condensers on a 15A circuit, and fewer leak-prone joints. It's a simple, reliable, and tested system.
  • LG, Mitsubishi, or other premium brands with professional installation still make sense for complex whole-home systems, but pre-charged DIY mini splits now cover a huge share of single- and multi-room projects.

Before you decide, compare total installed cost (equipment plus any electrician help), efficiency specs, customer reviews, and line set design. Check MRCOOL's Trustpilot against Zone Air's feedback, use our DIY mini split buying guide to size the room, and contact us if you need help choosing a system.

Frequently Asked Questions: Easiest DIY Mini Split Install

Do I need an HVAC license to install a pre-charged mini split?

No. With a pre-charged quick-connect system from Zone Air or MRCOOL, the refrigerant stays sealed, so you never handle it. You may still need an electrician or a permit for a new 230V circuit, depending on local code.

Which is easier to install, MRCOOL Easy Pro or Zone Air?

Both use pre-charged quick-connect line sets and basic hand tools. Zone Air is easier when your run isn't exactly 11.5 or 16 feet, because the line set is cut to your measurement, and its 115V condenser can plug into a dedicated GFCI outlet with the optional cord kit where code allows instead of being hardwired.

Can I cut or extend a pre-charged line set?

No. Cutting releases the factory refrigerant charge and voids the warranty. Order the right length up front: a custom single run from Zone Air, or the closest fixed length (and a coupler for very long runs) from MRCOOL.

Can a DIY mini split really plug into an outlet?

Zone Air's 9K and 12K 115V models run on a dedicated 15A circuit, and with the optional cord kit they plug into a dedicated 15A GFCI outlet with a weatherproof cover where local code allows. Never use an extension cord. MRCOOL's 115V units are hardwired to a disconnect.

Related reading: MRCOOL DIY 5th Gen vs Zone Air on the easiest install, our pre-charged 12K and 18K installation guide, the best quick connect mini split systems, and the DIY 12,000 BTU 115V mini split comparison.

Specifications, prices, and warranty terms above are manufacturer- or retailer-published as of September 2026, are subject to change, and should be verified before purchase. MRCOOL, Easy Pro, LG, and Mitsubishi are trademarks of their respective owners; MiniSplits on Sale is not affiliated with or endorsed by them.
