Pre-Charged DIY Mini Split (12,000 & 18,000 BTU): Installation Guide

Installing your own ductless heating and cooling system used to mean hiring a contractor, renting specialty tools, and paying thousands in labor. Pre-charged DIY mini split systems in the 12,000 and 18,000 BTU range have changed that. This guide covers how these systems work, how to size them, what tools you need, the install steps, and how the main pre-charged options compare.

Quick Answer: What Is a Pre-Charged DIY Mini Split (12K & 18K BTU)?

A pre-charged DIY mini split is a ductless heat pump and air conditioner with refrigerant already factory-sealed inside the line set and condenser, so a homeowner can install it without a vacuum pump or professional HVAC training.

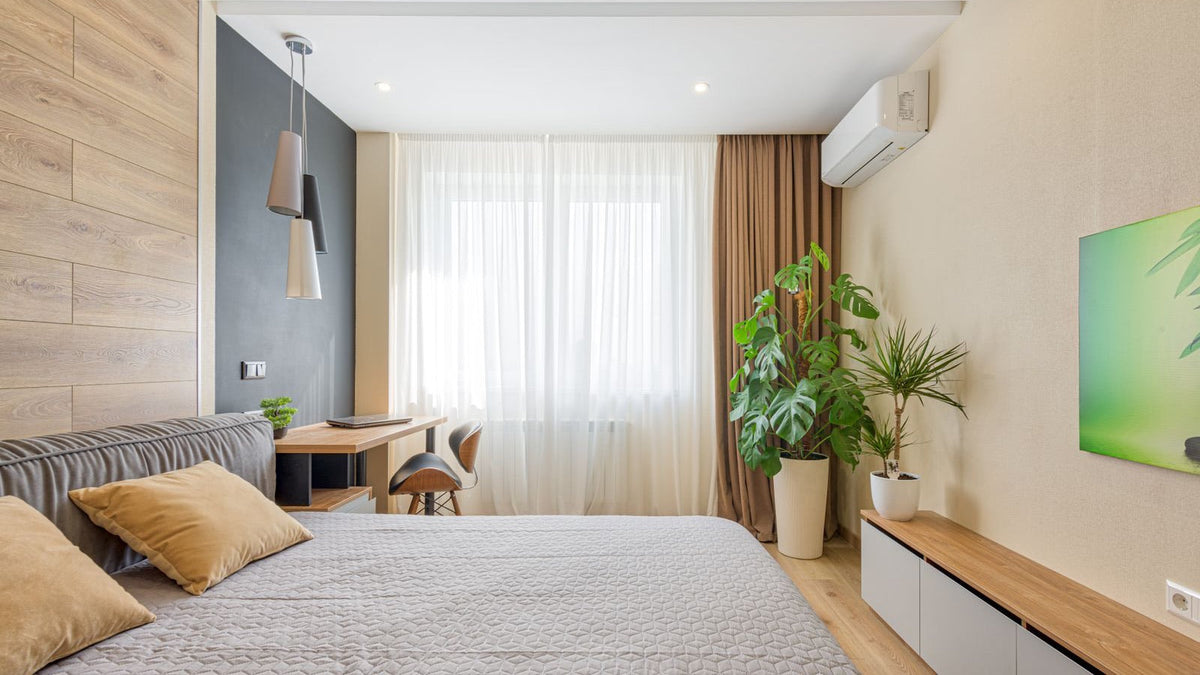

• A 12,000 BTU system suits rooms around 400–600 sq ft, such as bedrooms, offices, or sunrooms.
• An 18,000 BTU unit covers roughly 500–900 sq ft, such as a great room, garage workshop, or small apartment.
• Quick-connect fittings mean most handy homeowners can complete the install with basic tools in a weekend.
• 115V 12K models (for example Zone Air's, which runs on a dedicated 15A circuit and, with the optional cord kit, plugs into a dedicated GFCI outlet where local code allows) can avoid an electrician for the unit hookup in many retrofits.
• Homeowners typically save between $1,000 and $3,000 in labor by installing mini-split systems themselves.

Pre-Charged 12K and 18K DIY Mini Splits at a Glance (September 2026)

Zone Air prices are MiniSplits on Sale prices; MRCOOL's price is the MRCOOL DIY Direct listing as of October 2026 and changes often. MRCOOL kits include a 25 ft line set versus Zone Air's 16 ft, so factor that in if your run is long.

How Pre-Charged Mini Split Systems Work

A mini split consists of an outdoor condenser (which houses the heat pump compressor and fan) and one or more indoor air handlers, connected by refrigerant line sets and control wiring. There are no ducts; refrigerant carries heating and cooling energy directly between the two units.

• "Pre-charged" means the refrigerant is factory-sealed inside both the condenser and the matching line set. There is no on-site charging, vacuum, or refrigerant handling.
• The homeowner attaches the pre-charged line set between the condenser and the air handler, torques the fittings, then opens service valves to release refrigerant into the circuit.
• Zone Air's DIY systems operate in heating mode down to −13°F. MRCOOL's DIY 5th Gen E-Star line is cold-climate rated to a similar floor (the budget Easy Pro line stops at 5°F, and higher-tier MRCOOL models are rated lower).
• Line set lengths differ by brand: Zone Air offers custom-cut single runs from 5 to 75 feet (one pair of quick-connect valves per install), while fixed 11.5, 16, 25, 35, or 50 ft lengths mean coiling excess copper or joining two sets together.

Why Choose 12,000 vs 18,000 BTU for Your Space?

An oversized unit short-cycles, wastes electricity, and controls humidity poorly. An undersized unit can't keep up during peak summer heat or deep winter cold. Proper sizing depends on room volume, insulation, and local climate.

• 12,000 BTU single-zone: A 400–600 sq ft bedroom, home office, or small open-plan living area. In mild climates (Pacific Coast, Southeast), this size handles most rooms comfortably.
• 18,000 BTU single-zone: A 500–900 sq ft great room, converted garage, or small apartment. For a workshop producing heat or high ceilings, this is the safer choice.
• Factors that push you up a size: Cold climate zone (e.g., Northeast winters), poor insulation, lots of windows, high ceilings, heat-generating appliances like ovens or servers.
• Factors that push you down: Mild climate, well-insulated building, small room with few exterior walls.
• If you're between 12K and 18K, lean toward 18K for poorly insulated or high-heat-gain spaces. Consult the manufacturer's sizing charts and measure your room before buying.

Key Components of a DIY Pre-Charged Mini Split Kit

• Outdoor condenser unit: Houses the compressor and fan.
• Indoor air handler: Usually wall-mounted; Zone Air also offers ceiling cassette and slim concealed ducted indoor units in single-zone and multi-zone systems.
• Pre-charged line set: Copper tubing pair that carries refrigerant. Custom-cut runs (Zone Air, 5 to 75 ft) or fixed 11.5/16/25/35/50 ft lengths that cannot be shortened on site.
• Control cable and communication wiring: Connects the indoor and outdoor units.
• Wall sleeve: Protects the line set, drain, and wiring where they pass through the exterior wall.
• Condensate drain tubing: Carries moisture from the indoor unit to the outside.
• Mounting hardware: Brackets for the air handler and a pad or stand for the condenser.
• A disconnect box, outdoor condenser wall bracket, or line set cover kit may be sold separately depending on the seller. Check what's included before you order.

Tools & Skills You Need (With and Without a Vacuum Pump)

Pre-charged systems from Zone Air and MRCOOL DIY eliminate the need for vacuum pumps and gauges and require no special training.

Basic tools required:

• Drill with a hole saw (typically 2–3 inches) for the wall penetration.
• Level, tape measure, and stud finder for mounting the air handler.
• Adjustable wrenches and screwdrivers for brackets and electrical connections.
• Utility knife, safety glasses, and gloves.
• Possibly a bending tool to maintain the minimum bend radius and avoid kinking the copper.

When you still need specialty tools:

• A vacuum pump and manifold gauge set are necessary for traditional "pro" mini splits with flared connections and no factory charge.
• A flaring kit is needed for bare-copper flare joints on non-pre-charged systems.
• Pre-charged quick-connect kits need none of these.

Skill level: A confident weekend DIYer comfortable with basic electrical work and cutting a hole in a wall. Most systems in this range need a 230V dedicated circuit, which may mean an electrician for the panel hookup; 115V 9K and 12K models run on a dedicated 15A 115V circuit instead.

Step-by-Step DIY Installation Overview

Always follow the manufacturer's manual and local codes. Check local building codes for permits, and you may need a licensed electrician for the final electrical hookup.

1. Choose locations: Pick the indoor wall for the air handler (high on the wall, away from direct sunlight and obstructions) and the outdoor spot for the condenser (level ground, good airflow, away from heavy snow or leaf buildup).
2. Mount the indoor air handler: Secure the mounting plate to wall studs, check it with a level, and hang the unit.
3. Drill the wall penetration: Use a hole saw at a slight downward slope to the outside so condensate drains by gravity. Insert the wall sleeve.
4. Route the line set, drain, and wiring: Pull the pre-charged line set, condensate hose, and control cable through the wall. Protect the bend radius of the copper; don't kink it.
5. Mount the outdoor condenser: Set it on a pad or wall bracket with at least 18–24 inches of clearance on all sides for airflow and service access.
6. Connect quick-connect fittings: Attach the line set at both the air handler and condenser ends, following the torque specs in the manual. Check for leaks per the instructions.
7. Make electrical connections: Wire the dedicated circuit (15A single-pole 115V for the Zone Air 12K 115V, 15A double-pole 230V for the 12K 230V, 30A double-pole 230V for the 18K). Install the disconnect box.
8. Open service valves: Release refrigerant from the condenser into the line set and indoor unit.
9. Power up and test: Set the system to cool or heat mode, verify airflow at the air handler, and confirm the condenser is running.

Do You Still Need a Vacuum Pump or Professional Help?

When a vacuum pump is needed:

• Installing a traditional "pro" mini split (Mitsubishi, Fujitsu, or similar) with flared copper line sets and no factory charge in the lines.
• Extending or modifying an existing refrigerant circuit, or reclaiming refrigerant before removal.
• Troubleshooting suspected contamination or moisture inside a system that has been opened.

When you can skip it: With a fully sealed quick-connect system and properly matched pre-charged line sets, a vacuum procedure is not part of normal DIY installation. The refrigerant circuit stays sealed until you open the valves.

When to call a professional:

• You suspect a refrigerant leak and don't have leak search tools or gauges.
• You are not comfortable running a dedicated 230V circuit or navigating local permitting.
• Your home insurance or local codes require licensed work for high-voltage connections.
• Some refrigerant-handling activities, particularly opening or recharging a system, require EPA Section 608 certification.

Single-Zone vs Multi-Zone Mini Splits

A single-zone system pairs one condenser with one indoor air handler, the most common setup for a 12K or 18K install. A multi-zone system runs multiple indoor heads off a single outdoor unit.

• Single-zone use cases: A garage conversion, a bonus room, a sunroom, or a single large bedroom.
• Multi-zone use cases: A small apartment with a living room and bedroom, an ADU, or a house where you want independent climate control in two or three rooms.
• MRCOOL DIY 5th Gen multi-zone condensers support up to six indoor units on the largest condensers, ; MRCOOL's multi-zone matchup tables list only wall and ceiling cassette heads; its DIY Hybrid ducted air handler is a separate full-size unit.
• Zone Air's two- and three-zone systems can mix wall-mounted air handlers, ceiling cassettes, and concealed ducted units on one condenser. Example wall-mount configurations include a dual-zone 18K (9K + 9K) for two bedrooms or 21K (12K + 9K) for a living area and office, at 24 SEER2.

For more on multi-room layouts, see our guide to DIY multi-zone mini split systems.

Efficiency, Cost, and Warranty Compared

SEER2 and HSPF2 translate directly into your electric bill: higher SEER2 means cheaper cooling, higher HSPF2 means cheaper heating. Over 10–15 years, even a fraction of a SEER2 point adds up.

• Zone Air single-zone systems are rated 24 SEER2 on the 12K 230V model and 23 SEER2 on the 115V and 18K models.
• MRCOOL's DIY 5th Gen E-Star line is rated up to 23.6 SEER2 on the 9K, 23.5 on the 12K 115V and 22.5 SEER2 on the 18K. The gap between the brands is under a point.
• Zone Air's 12K and 18K models are rated for heating to −13°F with a Region IV HSPF2 of 10.0 (8.6 to 8.8 in Region V). Zone Air publishes rated heating performance at 5°F.
• Inverter-driven compressors ramp smoothly instead of short-cycling. Zone Air's 12K indoor unit runs as low as 30 dB(A) in quiet mode and the 18K as low as 34 dB(A).
• Price: the Zone Air 12K is $2,049.99 on 230V ($1,999.99 on 115V) and the 18K is $2,599.99. A comparable MRCOOL DIY 5th Gen E-Star kit lists at $2,370 (12K 115V, MRCOOL DIY Direct) as of October 2026, though MRCOOL includes a longer (25 ft) line set.
• Warranty: both brands back their DIY lines with 5 years on parts and 7 years on the compressor with no registration required (Zone Air warranty terms; MRCOOL DIY 5th Gen warranty PDF). Check which MRCOOL line you're buying: the lower-priced DIY Select carries only 1 year on parts and 2 years on the compressor.
• Reviews: MRCOOL's Trustpilot profile showed a TrustScore of 3.2 out of 5 from 89 reviews (September 2026). Zone Air's manufacturer-published reviews average about 4.8/5 across 150+ reviews (different review sources, not directly comparable).

Custom-Length vs Fixed-Length Line Sets

The length and number of connections in the line set run affect reliability, efficiency, and appearance.

• With fixed lengths, a 40 ft run on a 50 ft set leaves 10 ft of copper coiled behind the condenser. That excess has to be coiled neatly, and standard pre-charged sets cannot be shortened.
• A 60 ft run with fixed lengths means joining two sets, doubling the quick-connect valves. MRCOOL's own 66 and 75 ft options are two line sets joined with couplers.
• Custom-cut single runs (Zone Air, 5 to 75 ft) have one pair of connections, less visible coiled copper, and fewer fittings to inspect if something goes wrong.
• On the other hand, MRCOOL kits include 25 ft rather than 16 ft.

Operating Modes and Controls

A DIY mini split is both an air conditioner and a heat pump, and each indoor air handler controls its own temperature, so you only condition the rooms you use.

• Cooling: Pulls heat from the room and exhausts it outdoors.
• Heating: Reverses the cycle, pulling warmth from outdoor air even in cold temperatures.
• Dry / Dehumidify: Removes moisture without dramatically dropping the temperature.
• Fan-only: Circulates air without heating or cooling.
• Auto: Switches between heating and cooling as needed, useful in spring and fall.

Controls typically include a handheld remote (temperature, fan speed, vane direction), timer and sleep functions, and Wi-Fi app control for scheduling and remote monitoring.

Maintenance Tips & Long-Term Reliability

Homeowner tasks:

• Clean or rinse indoor filters every 4–8 weeks depending on dust and pet levels.
• Keep the outdoor condenser clear of leaves, snow, and debris, with at least 18–24 inches of clearance.
• Inspect line set insulation annually for UV damage or critter chewing, and protect exposed sections with line set covers if needed.
• Check that condensate drains flow freely during the cooling season.

When to call a professional:

• Suspected refrigerant leak: oily residue on fittings, declining performance, or ice buildup on the line set or coils.
• Electrical faults, burning smells, or tripping breakers.
• Advanced diagnostics requiring gauges or leak search equipment.

Is a Pre-Charged DIY Mini Split Right for You?

Good fit:

• Converting a garage, attic, or basement into livable space.
• Adding comfort to a sunroom, ADU, or home office without extending ductwork.
• Replacing window air conditioners with a permanent, efficient solution that also heats.

Possible limitations:

• An electrical panel that cannot support a new dedicated circuit.
• Layout or aesthetic constraints that make indoor air handlers or exterior condensers difficult to place.
• Local codes that mandate professional installation for all HVAC work.

Our recommendation

We sell Zone Air, so weigh this accordingly. Measure the room, note your climate, and choose 12K or 18K based on square footage, insulation, and heat load. MRCOOL DIY 5th Gen is a good fit if you want to buy at retail and a 25 ft (or other fixed-length) line set suits your run. Zone Air fits runs that need an exact length (5–75 ft single run), a 115V 12K option on a 15A circuit, or a multi-zone layout that mixes wall, cassette, and concealed ducted heads. Brands that use flare fittings, such as Senville, state that DIY installation voids coverage, so read any warranty before you buy.

If Zone Air fits your project, you can compare our single-zone DIY mini split systems in 12K and 18K sizes.

Frequently Asked Questions: Pre-Charged 12K and 18K DIY Mini Splits

Do I need a vacuum pump to install a pre-charged mini split?

No. A pre-charged quick-connect system ships with the refrigerant sealed in the condenser and line set, so you tighten the fittings to the torque spec and open the service valves. A vacuum pump is only needed for flare-fitting "pro" systems or if a sealed circuit is later opened for repair.

Can I run an 18,000 BTU mini split on 115V?

Not from Zone Air or MRCOOL. Both brands' 18K DIY systems are 230V. Zone Air's 115V options are the 9K and 12K models, which run on a dedicated 15A circuit. If you only have 115V available and need more than 12K, a second 115V unit or a 230V circuit is the answer.

What size mini split do I need for a garage?

A typical insulated two-car garage of 400–600 sq ft is a 12K job. Poorly insulated garages, workshops with heat-producing tools, or spaces approaching 900 sq ft should step up to 18K.

Does installing a mini split myself void the warranty?

Not with Zone Air, whose 5-year parts and 7-year compressor warranty covers DIY installs with no registration required. MRCOOL's DIY 5th Gen line is also warranted when installed per the manual. Brands that use flare fittings, such as Senville, state that DIY installation voids coverage.
