DIY Ceiling Cassette Mini Split: Easy Install Guide

Installing a ceiling cassette mini split used to mean hiring an HVAC contractor, renting a vacuum pump, and spending thousands on labor. That has changed. MRCOOL DIY and Zone Air both ship ceiling cassette systems designed for homeowners to install themselves, and the results can rival professional work when you plan correctly. This guide walks through how these systems work, what actually separates the two brands, and what the install involves.

Quick Answer: Is a DIY Ceiling Cassette Mini Split Really "Easy Install"?

Yes, a DIY ceiling cassette mini split is a realistic project for a competent homeowner. The reason: a cassette does not require specialized refrigerant tools when you choose a system with a pre-charged line set and quick-connect fittings. You skip the vacuum pump, the manifold gauges, and the EPA Section 608 certification that traditional installs demand.

MRCOOL DIY 5th Gen OuttaSight cassettes and Zone Air Airframe cassettes both use R-454B refrigerant sealed inside a quick-connect line set. You hang the cassette, run the line set, remove the caps, hand-thread the fittings, and tighten with two wrenches. The refrigerant circuit stays closed the whole time. No brazing, no evacuation, no manual charging.

The real difference between the two is the shape of the cassette and the ceiling it fits. MRCOOL's OuttaSight is a one-way cassette measuring roughly 50" long × 13" deep × 9" tall, which is exactly why it slides between 16" on-center ceiling joists, including pre-manufactured I-joists. Zone Air's Airframe is a 4-way (360°) cassette with a 22½" square chassis and a 25⅝" square decorative panel, which is sized for a standard 24" × 24" drop-ceiling grid or a framed opening in a joisted ceiling. Neither approach is better in the abstract; the right one depends on what is above your ceiling.

When should you DIY? If you have working attic or ceiling-cavity access, a line run under the manufacturer's maximum, and comfort with basic electrical work, this is your project. Call a pro for runs exceeding brand limits, complex multi-zone branch layouts, or when local code requires licensed electrical work.

How a Ceiling Cassette Mini Split Works (and Why It's Different)

A ceiling cassette is a mini split air handler that recesses into the ceiling so only the grille is visible from the room below. It delivers flush-mount climate control without ductwork, which makes it a clean alternative to a bulky ducted system and frees the wall space a conventional head would occupy.

The components are the same as any mini split: an outdoor condenser on a pad or bracket, an indoor cassette containing the evaporator coil and blower, a pre-charged refrigerant line set connecting the two, a control cable, and a condensate drain. What is different is that the indoor unit lives inside the ceiling, so the install adds two things a wall-mount install does not have: a ceiling opening and a condensate path.

Both brands' cassettes include a condensate pump, which matters more than it sounds. A wall unit can usually gravity-drain out the back. A cassette sits in a flat ceiling with nowhere obvious to go, so the pump lifts condensate to a height where you can slope a drain line to an exterior wall or an existing plumbing drain.

Airflow distribution is the other structural difference. A 4-way cassette pushes conditioned air down and outward in all four directions from a center point, which suits a square, open room. A one-way cassette throws in a single direction, more like a long linear diffuser, which suits a rectangular room, a hallway-adjacent space, or a ceiling where the joist direction forces the unit's orientation anyway.

Multi-zone systems let one outdoor unit feed several indoor heads. Zone Air's multi-zone condensers accept a mix of wall, cassette, and slim concealed-ducted heads on the same outdoor unit, which is useful when one room wants a cassette and another only has wall space. MRCOOL's DIY multi-zone condensers scale to more zones than Zone Air's do, and accept wall heads, cassettes, and the DIY Hybrid ducted air handler, though MRCOOL does not offer a slim concealed-duct head in the DIY line.

MRCOOL DIY Ceiling Cassette: Features, Pros, and Limits

The MRCOOL DIY OuttaSight ceiling cassette is a one-way DIY ceiling cassette. The 4th Gen cassettes are discontinued and showing sold out at MRCOOL's own stores, so the 5th Gen is what you will actually be able to buy.

The 5th Gen OuttaSight comes in 6K, 9K, 12K, and 18K BTU air handlers, all 208–230V, all R-454B. MRCOOL HVAC Supply lists the air handlers at $1,312 (6K), $1,410 (9K), $1,421 (12K), and $1,440 (18K) as of September 2026, and the 18K complete single-zone system (DIY-18-HP-CS-230D25-O, condenser + cassette + 25 ft pre-charged line set + remote) at $3,418. The 18K is rated for up to 800 sq ft and the 12K for up to 550 sq ft. MRCOOL lists an ENERGY STAR version of the 18K cassette system and integrates with Google Home and Alexa through the SmartHVAC app.

Pros:

• Pre-charged Quick Connect line sets, no vacuum pump
• Fits between 16" on-center ceiling joists, including I-joists, with no reframing
• Condensate pump included
• Elevation function lowers the filter panel for maintenance
• 5-year parts and 7-year compressor warranty with no registration required, and a limited lifetime compressor warranty when you do register

Limitations:

• One-way discharge only. MRCOOL brands these explicitly as "One-Way Ceiling Cassette," so a large square or open-plan room can end up with a weak corner
• All DIY cassettes are 208–230V. There is no 115V cassette in the line
• Fixed line set lengths (16, 25, 35, 50 ft, coupled to a 75 ft maximum) mean coiling excess copper or adding couplers, and every coupler is another joint
• Published specs disagree between retailers. The same 18K cassette system is listed at 21.4 SEER2 by Mini Split Warehouse and 22.5 SEER2 by MRCOOL HVAC Supply, and the low-temperature heating rating is listed as −13°F in one place and −22°F in another. Pull the spec sheet for the exact model number before you rely on either figure

Zone Air vs MRCOOL DIY: Key Differences That Matter for DIYers

MiniSplits on Sale sells Zone Air, so keep that in mind; this section sticks to structural differences.

Airflow pattern. Zone Air's Airframe cassette is a 4-way, 360° unit: conditioned air leaves all four sides of a square panel. MRCOOL's OuttaSight is a one-way unit. In a square 12' × 14' bedroom or a 500 sq ft open living area, 4-way distribution is the one that avoids a cold corner. In a long, narrow room, a one-way throw down the length of the space can actually be the better match.

Ceiling type. This is the trade-off that goes with the airflow pattern. MRCOOL's narrow one-way chassis is what fits between 16" on-center joists untouched. Zone Air's 4-way chassis is 22½" square with a 25⅝" panel, so it drops into a standard 24" × 24" drop-ceiling grid, or needs a framed opening with a header between joists in a drywall ceiling. Check what is above your ceiling before you pick the airflow pattern you want.

Line set design. MRCOOL sells fixed 16, 25, 35, and 50 ft quick-connect sets, coupled up to a 75 ft maximum, with a 25 ft set included in the single-zone cassette kit. Zone Air builds pre-charged line sets to length instead of forcing a fixed size, so a 40 ft run is 40 ft with one pair of quick-connect fittings and no coil of excess copper behind the condenser. Note that Zone Air cassette systems are sold without a line set — the line set is a separate line item. The stocked kit here is a 25 ft pre-charged R-454B quick-connect line set at $250 for 9K–12K systems.

Efficiency. Zone Air's single-zone 9.5K and 12K cassette systems are rated 21.0 SEER2; its 3-zone cassette systems are rated 24 SEER2. MRCOOL's 18K cassette system is published between 21.4 and 22.5 SEER2 depending on the retailer. At single-zone cassette sizes these two brands are close enough that efficiency should not decide the purchase — airflow pattern and ceiling fit should.

Cold weather. Zone Air cassettes are rated to operate down to −13°F, with a 12K COP2 of 3.5 at 47°F and 1.9 at 5°F. MRCOOL's DIY cassette listings disagree with each other on the low-temperature limit, so verify by model number if you are in a cold climate.

Voltage. Both brands' cassettes are 208–230V. Zone Air's 115V models exist, but they are wall-mount units, not cassettes. If you were hoping to avoid a 230V circuit by going cassette, neither brand has that option today. The Zone Air 12K cassette needs a 15A double-pole breaker; MRCOOL's 12K cassette lists a 15A maximum fuse.

Price. A Zone Air 12,000 BTU cassette system is $2,799.99 here and the 9,500 BTU is $2,699.99, with the line set separate. MRCOOL's only listed complete single-zone cassette system is the 18K at $3,418 with a 25 ft line set included. Those are different capacities, so the fair reading is that complete-system pricing between the two brands is close, and the 18K MRCOOL is the cheaper unit per BTU. Price is not the reason to pick one over the other.

Reviews. As of September 2026, MRCOOL's Trustpilot profile shows a TrustScore of 3.2 out of 5 from 89 reviews. Zone Air's manufacturer-published reviews average about 4.8 out of 5 across more than 150 reviews.

Planning Your Ceiling Cassette Project

Most DIY failures are planning failures. Before anything goes in a cart, answer these:

Sizing. Match capacity to the room, using each brand's published coverage rather than a generic rule of thumb:

• Zone Air 9,500 BTU cassette: up to 475 sq ft
• Zone Air 12,000 BTU cassette: 350–600 sq ft
• MRCOOL 12K cassette: up to 550 sq ft
• MRCOOL 18K cassette: 600–800 sq ft

Adjust for ceiling height, window exposure, insulation, and climate. Oversizing short-cycles the compressor and leaves humidity behind, so resist the urge to round up "just in case."

Single vs multi-zone. A single-zone cassette is right for one main room. Go multi-zone when you are conditioning several rooms, a whole floor, or a mixed-use commercial space. Zone Air's multi-zone cassette systems run 2–3 indoor heads on a 27,000 BTU outdoor condenser: dual-zone cassette systems (19K, 21.5K, and 24K combinations) at $4,499.99, and 3-zone cassette systems at $5,599.99 rated 24 SEER2. Because the condenser accepts mixed head types, you can put a cassette in the living room and a wall head or concealed ducted head in the bedrooms on the same outdoor unit.

Cassette placement. Center it in the room where you can, clear of beams, recessed lights, and plumbing. Confirm you have at least 9–10 inches of clear cavity depth above the ceiling line (both brands' cassettes are about 9 inches tall) plus room for the drain line to slope. Then confirm the width: a one-way cassette needs a clear joist bay; a 4-way cassette needs a 24" grid opening or a framed opening with a header, which is real carpentry, not a jigsaw job.

Line run path. Trace the path from the cassette to the planned condenser location before you cut anything. You need a straight or gently sweeping route for the line set, control cable, and drain tubing through the rim joist or wall. With Zone Air, order the exact length. With MRCOOL, plan where you will manage the excess from the nearest fixed length. Minimize bends — each one adds resistance.

Electrical. Plan for a dedicated 208–230V circuit; for the Zone Air 12K cassette that is a 15A double-pole breaker. If your panel has no room, budget for an electrician before you budget for the equipment.

Permits and codes. Many jurisdictions require a permit for HVAC installation, and some require a licensed electrician for the service connection even on a DIY system. Always respect the manufacturer's maximum line set length and elevation difference.

What Comes in a DIY Ceiling Cassette Kit?

Indoor components: ceiling cassette air handler, mounting hardware or suspension brackets, decorative panel, wireless remote, and a control cable. MRCOOL includes a 25 ft DIY Pro cable and line set in its single-zone kit.

Outdoor components: DIY-rated condenser pre-charged with R-454B, service valves with quick-connect fittings, and vibration feet.

Line sets: included in the MRCOOL single-zone kit at 25 ft; sold separately on Zone Air cassette systems. Insulation and fittings come attached either way.

Not included on either brand: the outdoor pad or wall bracket, electrical disconnect and whip, PVC fittings for drain termination, and line set cover kits for a clean exterior run. Verify your indoor and outdoor units are the same brand and series before ordering — cassettes and condensers are not cross-compatible between manufacturers.

Step-by-Step Overview: Installing the Indoor Cassette

This is an overview of the work, not a replacement for your model's installation manual.

1. Cut the ceiling opening. Locate the joists, confirm their direction and spacing, and lay out the opening to the chassis dimensions plus the manufacturer's clearance. A one-way cassette generally fits a clear 16" o.c. bay. A 4-way cassette needs a 24" × 24" grid opening, or joists cut and headered off in a drywall ceiling — do that framing properly, because it is structural.
2. Mount the cassette. Lift the chassis into the cavity and suspend it from threaded rod or brackets anchored to framing. Level it carefully in both axes. A level cassette is what lets the integrated condensate pump and drain pan work as designed.
3. Connect drainage. Attach the pump outlet to flexible drain tubing, route it to your termination point with continuous slope after the pump's lift, and clamp every joint. Test it with a cup of water before the panel goes on.
4. Run wiring. Route the control cable from the cassette to the condenser location, following the color codes exactly and protecting the cable where it crosses framing or sheet metal.
5. Connect the line set (indoor side). Bend the pre-insulated lines at generous radii, feed them through the ceiling and wall penetration, and connect to the cassette using two wrenches so you never twist the copper.

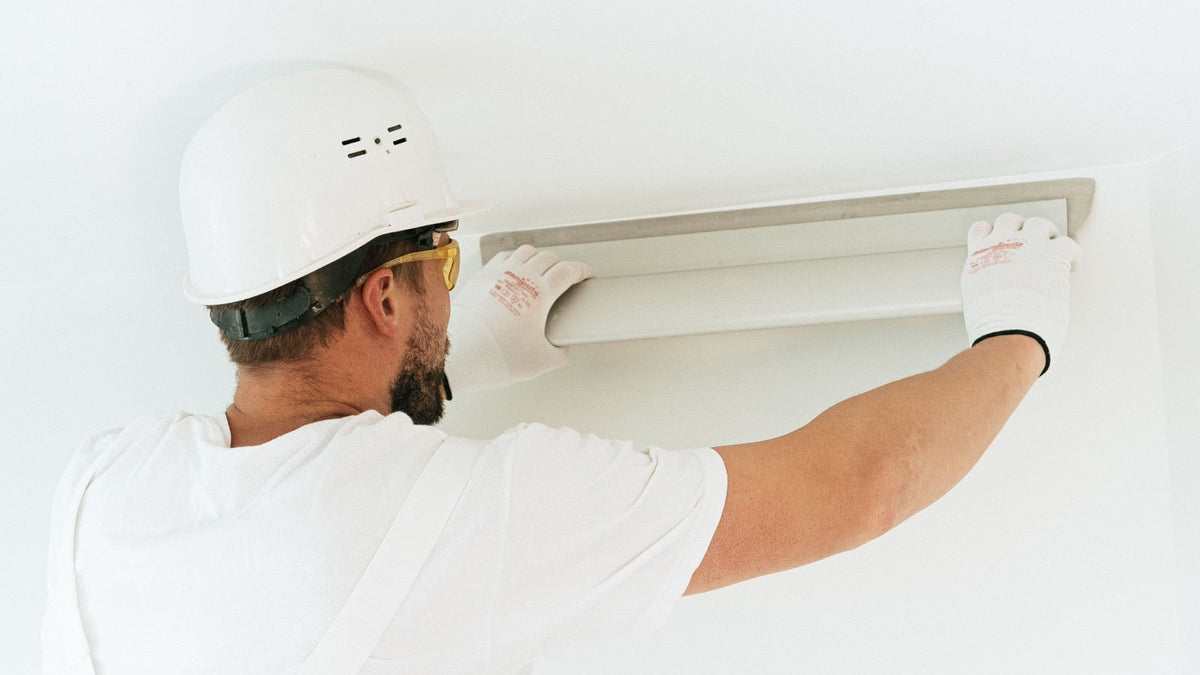

6. Install the panel. Align the decorative panel, clip it in, and confirm the filter panel drops down for cleaning and that the grille sits flush with the ceiling.

Kill the power at the breaker before any wiring, wear eye protection when cutting overhead, and have a second person for the lift — a cassette weighs 32–45 lbs and you are holding it over your head.

Outdoor Unit, Line Set, and Startup

Site the condenser on a level pad or wall bracket with the clearances in the manual, away from dryer vents and snow drift lines. Route the line set and control cable through one sealed wall penetration using a sleeve or grommet, then up into the ceiling cavity, strapping every few feet.

With MRCOOL, coil any excess length neatly near the condenser in a horizontal loop, never a vertical one that traps oil. With a made-to-length Zone Air line set, there is nothing to coil. Either way, remove the protective caps, align the quick-connect fittings by hand so you cannot cross-thread them, then torque to the manual's spec — under-torquing leaks, over-torquing deforms the seal.

For the electrical hookup, install the correctly sized breaker, run to a disconnect beside the condenser, and land line and ground per the NEC and the manufacturer's diagram. This is the step where a licensed electrician earns their fee if 230V work is outside your comfort zone. Our pre-charged install guide walks through the wiring sequence in more detail.

At startup: restore power, run cooling mode, confirm the outdoor fan and compressor start, and check for cool air at the grille after several minutes. Inspect every fitting for oil residue, which is the tell-tale of a refrigerant leak. Confirm condensate is actually reaching its termination with no drip at the ceiling, listen for rattles or fan contact, and pair the system to the app.

When to Call a Pro (and How to Protect Your Warranty)

Both brands are designed for homeowners, but hire a licensed professional when:

• The refrigerant run approaches or exceeds the brand's maximum length or elevation difference
• You are building a multi-zone system with a branch box layout you cannot diagram confidently
• There is no safe access above the ceiling
• A 4-way cassette requires cutting and heading off structural joists
• Your panel needs a service upgrade to add a 230V circuit

Both Zone Air and MRCOOL DIY offer 5-year parts and 7-year compressor coverage that does not require registration and is not voided by a proper self-install; MRCOOL adds a limited lifetime compressor warranty for owners who do register. Zone Air coverage starts at the proof-of-purchase date and includes 30-day returns on uninstalled systems. Some jurisdictions still require a licensed electrician for the service connection regardless of who mounts the equipment.

Common Questions About DIY Ceiling Cassettes

Can a ceiling cassette really fit between joists?

A one-way cassette like the MRCOOL OuttaSight can, because it is long and narrow — roughly 13" deep — and slides into a 16" on-center bay. A 4-way cassette cannot: at 22½" square it is wider than the 14½" clear space between 16" o.c. joists, so it needs a 24" × 24" drop-ceiling grid or a properly headed framed opening.

Do I need a condensate pump?

You have one. Both the Zone Air Airframe and the MRCOOL OuttaSight include an integrated condensate pump, which is what makes a flat-ceiling install practical. You still need to plan a drain route with slope after the pump's lift and terminate it somewhere legal.

Is there a 115V ceiling cassette?

Not from either brand as of September 2026. Every DIY cassette in both lines is 208–230V. If you need a 115V system on a standard circuit, you are looking at a wall-mount head instead.

Which airflow pattern should I choose?

Match it to the room, then check the ceiling. Square or open-plan rooms benefit from 4-way distribution. Long, narrow rooms do fine on a one-way throw. If your ceiling joists run the wrong way and reframing is off the table, the ceiling makes the decision for you.

Can I mix cassettes with other indoor units?

Yes on both brands' multi-zone condensers. Zone Air's 27K multi-zone condenser accepts 2–3 heads in any combination of wall, cassette, and slim concealed ducted. MRCOOL's DIY multi-zone condensers accept wall heads, cassettes, and the DIY Hybrid ducted air handler, and scale to more zones than Zone Air's do.

Our Recommendation

We sell Zone Air, so weigh this accordingly: the choice between MRCOOL and Zone Air is less about price or efficiency — at single-zone cassette sizes those land close — than about airflow pattern and what is above your ceiling. If you have a drop ceiling or are willing to frame an opening, we recommend Zone Air's 4-way cassette for even distribution in a square room and a condenser that mixes head types. If your only practical mounting spot is a 16" joist bay, or you want the 6K or 18K sizes, MRCOOL's one-way OuttaSight is the cassette that fits without touching structure.

Once you have measured the room, checked the cavity above the ceiling, and mapped the line run, you can compare sizes in our ceiling cassette collection.
