Best 2 Zone DIY Mini Split 2026: MrCool DIY Dual Zone vs Zone Air (Official Guide)

If you need to condition two rooms without ripping open walls or hiring a contractor, a 2 zone diy mini split is the best move you can make in 2026. This guide breaks down the two leading pre-charged, quick-connect DIY options head to head so you can pick the right system for your home.

Best 2 Zone DIY Mini Split for 2026

For 2026, Zone Air has the top spot as the best overall 2 zone diy mini split system. It gets you 24 SEER2 (Zone Air Dual Zone 36K) with wall-mount heads on 230V, is rated to heat down to −13°F, comes with pre charged line sets and quick connect fittings, and keeps your warranty valid with homeowner installation. At Home Depot and other big retailers, you will find the MrCool DIY 5th Gen multi zone range as the alternative, with strong performance and a familiar brand name.

Both brands use pre charged line sets for easy installation and are specifically designed for diy homeowners, but Zone Air does final assembly, testing, and inspection in the USA from parts from around the world. With one outdoor unit, Zone Air lets you mix different indoor unit types, such as a wall mounted air handler paired with a ceiling cassette or a concealed ducted unit, while MrCool DIY multi zone packages offer wall-mount and ceiling cassette heads but no concealed-duct DIY head.

A concrete comparison: a Zone Air dual zone heat pump system with two 18K wall heads (36,000 BTU of connected indoor capacity on one 27,000 BTU outdoor unit) covers up to 1,800 sq ft across two zones at 24 SEER2. A MrCool DIY 36K multi zone condenser with two 18K wall units is rated at 23 SEER2. Both handle heating and cooling year-round. This article is specifically about dual zone diy mini split systems and walks you through performance, installation, cost and when to choose Zone Air vs MrCool.

What Is a 2 Zone DIY Mini Split?

A 2 zone ductless mini split heat pump is made up of one outdoor condenser that runs two indoor air handlers in separate rooms. Each indoor unit is on its own, giving you independent temperature control for two spaces. Running an inverter-driven compressor, the outdoor unit changes its output to match the demand from whichever zones are active. The systems are made to provide air conditioning in summer and heating in winter through a switching refrigeration cycle.

What makes a diy mini split system "true DIY" is the installation method. True diy systems come with pre charged line sets and quick connect fittings, which means you never need to handle refrigerant, rent a vacuum pump or hold an EPA Section 608 certification. Sealed in the factory-charged line set, the refrigerant never opens to the atmosphere, so the vacuum pump, manifold gauges and flaring tools that Zone Air's FAQ puts at $400–600 to rent or buy (see Zone Air's FAQ) stay out of the job. This separates diy mini split brands from standard models that need brazing, flaring and professional charging.

A 2 zone diy system hits a practical sweet spot:

• Zones: two indoor units with independent temperature control for each room
• Outdoor condenser: one shared compressor unit that serves both heads
• Pre charged quick connect line sets: sealed refrigerant circuit, so you don't need a vacuum or manifold gauges
• Heat pump: gives you both heating and cooling from a single outdoor condenser
• Ideal for: smaller homes, ADUs, finished basements, townhomes or any space where exactly two rooms need conditioning

Zone Air vs MrCool: Who Really Wins Dual Zone DIY in 2026?

From our analysis, Zone Air is the best dual zone diy option overall in 2026. MrCool DIY 5th Gen is the easiest to find in big-box retail and online. Both are true diy mini splits with pre charged quick connect line sets and no need for a vacuum pump, manifold gauges or EPA certification. Zone Air does final assembly, testing, and inspection in the USA from parts from around the world, while MrCool's equipment is made abroad.

Zone Air diy systems give more flexibility in mixing wall-mount, ceiling cassette and concealed ducted indoor units on the same outdoor unit. As of October 2026 it is the only DIY mini split that lets you mix all three styles on one outdoor unit (see Zone Air's system builder). MrCool DIY multi zone condensers accept wall mounted air handlers and the OuttaSight ceiling cassette, but no concealed-duct head. Zone Air pre-charged line sets come in any whole-foot length from 5 to 75 ft, while MrCool sends fixed 11.5, 16, 25, 35 and 50 ft sets plus connectors and has you coil the excess behind the condenser. Efficiency ratings are measured in SEER2 and HSPF2 values, and 2026 SEER2 ratings give you realistic performance data under updated testing standards.

Key comparison points:

• Efficiency: Zone Air's dual zone outdoor unit gets up to 24 SEER2 with wall heads. Of the pre-charged quick-connect brands compared here, that is the highest multi zone rating. MrCool's diy multi zone condensers are rated 23.9 SEER2 on the 18K, 23 on the 27K and 36K, 21.8 on the 48K and 22 on the 55K. With cassette and concealed ducted heads, the same outdoor unit from Zone Air goes down to 21 and 19 SEER2.
• Heating performance: both are rated to −13°F. On every system, Zone Air puts an outdoor heating range of −13 to 86°F. MrCool's 18K through 48K multi zone condensers are rated −13°F to 75°F in heating, and its 55K condenser and higher-tier DIY models are rated lower.
• Warranty: Zone Air offers a 5-year parts warranty and 7-year compressor coverage with no registration deadline, and installing it yourself does not void it. MrCool's DIY 5th Gen provides a 5-year parts warranty and 7-year compressor warranty with no registration needed. Both cover units installed by you without requiring professional sign-off.
• Indoor unit flexibility: Zone Air supports wall mount, ceiling cassette and concealed duct heads on one condenser. MrCool offers wall units and a ceiling cassette on its multi zone condensers.
• Returns: Zone Air offers 30-day returns on uninstalled units with an RMA. MrCool puts out no manufacturer return policy, so returns depend on the seller you buy from.

Verdict: Zone Air is the best dual zone diy mini split for 2026, particularly for buyers who value build quality, indoor unit versatility and the confidence that comes with final assembly, testing, and inspection in the USA. MrCool DIY 5th Gen stays a solid choice for simple wall-mount setups and easy availability.

MrCool DIY 5th Gen Dual Zone (18,000–55,000 BTU)

The MrCool DIY 5th Gen multi zone range is the 2 zone diy mini split option most diy homeowners run into first, because it is stocked at major retailers like Home Depot. Coming in 18K through 55K BTU sizes, the 5th Gen condensers support 3 to 6 zone ports depending on model. There is no dedicated two-zone condenser. For two heads, the usual choice is the 18K (3 ports) and 27K (4 ports).

A typical larger two-zone setup pairs a 36,000 BTU 5-zone condenser with two 18,000 BTU wall-mount indoor air handlers. A 48,000 BTU condenser offers more room, supporting combinations like an 18K head plus a larger unit for open-plan spaces. MrCool's rule is that connected indoor capacity must be at least three quarters of the condenser rating, so match the condenser to the heads you actually need.

These systems use Quick Connect pre charged line sets with R-454B refrigerant, removing the need for a vacuum pump or flare connections. MrCool's catalog says "no special tools or training are necessary to install". Running on 208-230 V power with a dedicated breaker, the multi zone condensers power the indoor heads from the condenser.

• SEER2: 23.9 (18K), 23 (27K and 36K), 21.8 (48K), 22 (55K)
• Heating: is rated to −13°F on the 18K through 48K condensers, −22°F on the 55K
• Refrigerant: R-454B (low GWP)
• Controls: MrCool app with Alexa and Google voice control
• Ports per condenser: 3 to 6. Two-zone is a smaller configuration

From your phone, the app lets you manage a dual zone setup. Following clear manuals, the diy installation process is simple, and the smallest dual kits (18K condenser with two 9K heads) make the 5th Gen a strong entry point for first-time diy mini split buyers.

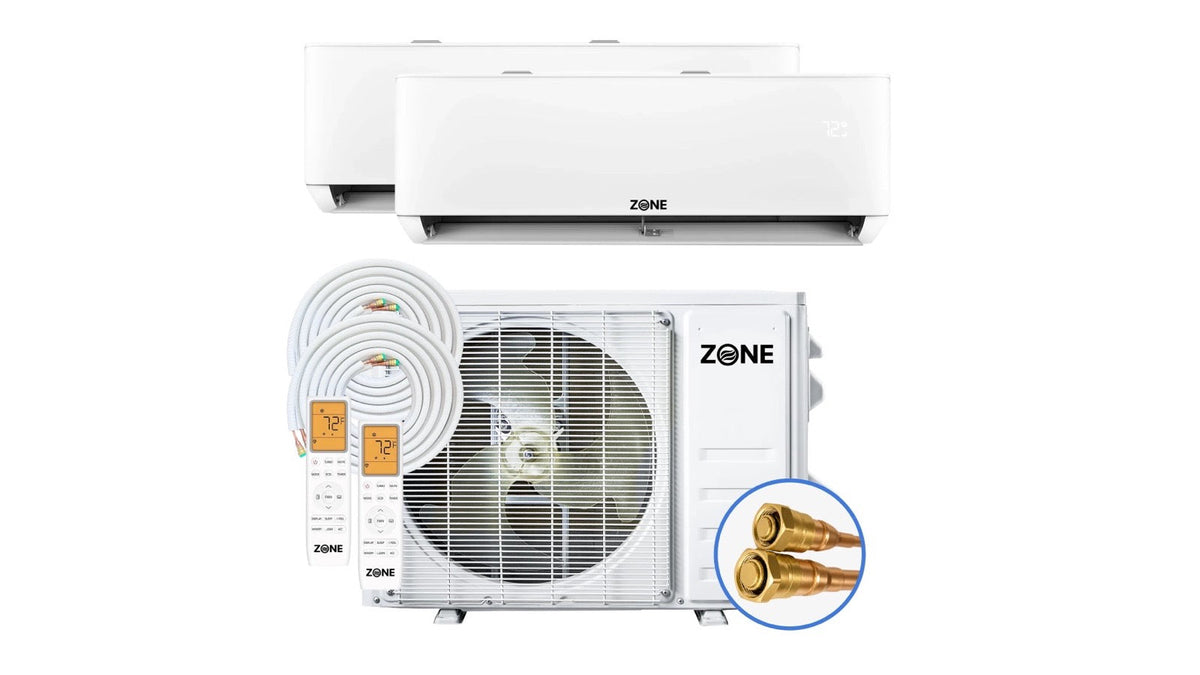

Why Zone Air Dual Zone DIY Systems Are Best

In 2026, Zone Air is the best-in-class true diy brand for 2 zone systems. Every unit gets final assembly, testing, and inspection in the USA, which is a quality difference over MrCool, whose equipment is made abroad.

Running on the same 27,000 BTU outdoor unit, every Zone Air dual zone system lets you pair with the mix-and-match builder:

• Two wall mounted indoor units (9K, 12K or 18K each, up to 18K + 18K)
• One wall mount + one ceiling cassette
• One wall mount + one Thin-Air concealed ducted unit (9.5K or 11K)

All configurations run off a single outdoor condenser, and the outdoor unit has a third port, so you can add another head later with a pre-charged line set and no vacuum pump. Zone Air offers 9,000 and 12,000 BTU heads for smaller zones, going up through 18K heads for larger spaces. Zone Air cuts pre-charged line sets to any whole foot from 5 to 75 feet, so you order only the length each zone actually needs, minimizing waste and coiling. Of the brands compared here, it is the only one that does, as of October 2026. The 25, 33, 50 and 75 ft sets are each one continuous factory-sealed run with no field joint, where MrCool joins two sets with a connector beyond 50 ft. Each zone gets its own line set and a communication cable, which ships with every unit.

Performance numbers back up the quality claim: the outdoor unit is rated 24 SEER2 with wall heads (zone-air.com), heating is rated down to −13°F and cooling up to 131°F outdoors (MrCool publishes 122°F). The warranty stays valid with diy homeowner installation as long as you follow the installation manual specs. Dual zone packages start at $3,039.99 for a 24K wall-mount package as of October 2026, with the 36K (18K + 18K) wall package at $4,039.99 and cassette or concealed ducted pairs also at $4,039.99. Multi zone systems ship without line sets, so add one per zone (a 16 ft set is $229.99).

Designed around you as a diy homeowner, Zone Air dual zone packages come with: a written DIY manual, an install video library, quick connect fittings that torque with a standard wrench, and flexible line set lengths that minimize complexity. Live technical support runs 8 AM–6 PM Mountain time. Zone Air is the best solution for homeowners seeking the most capable, future-proof 2 zone diy mini split system in 2026.

Key Specs for a 2 Zone DIY Mini Split

Beyond the brand name, focus on concrete technical specs before you buy any zone mini split system. Here is your checklist:

• BTU capacity: 18,000–24,000 BTU total for two smaller rooms (~300–400 sq ft each). 36,000 BTU of connected capacity is the common sweet spot for mid-size to large zones. MrCool's 48,000 BTU condenser covers larger or open-plan areas where one zone may need up to 36K alone. Zone Air's dual zone tops out at 18K + 18K.
• SEER2 and HSPF2: higher numbers mean lower operating costs. For context, Pioneer's Quantum Hyperformance line reaches up to 25 SEER2 and Senville's Arctic Series up to 25.5 SEER2, but both use flare line sets that need a vacuum pump, and Senville's warranty states that DIY installation voids coverage.
• Heating low-temp rating: look for a rating of at least −13°F for your climate zone. Senville's Arctic Series is rated to −22°F, but again it is a flare system.
• Electrical requirements: dual zone systems need 230V dedicated circuits. Check MCA and MOCP ratings on the spec sheet.
• Line set options: Zone Air offers any length from 5 to 75 feet per zone. MrCool's multi zone manual lets you have up to 75 ft per indoor unit, reached by joining two sets.
• Indoor unit styles: wall mount vs ceiling cassette vs concealed ducted. Zone Air has support for all three on one outdoor unit. Match the style to your space and aesthetic.

These specs form the core of a smart buy. An energy efficient 2 zone system at 22+ SEER2 pays back part of its price through lower operating costs over time.

What "True DIY" Means for 2 Zone Systems

A typical 2 zone diy installation follows this sequence: mount the outdoor condenser on a pad or bracket with proper clearance, install mounting brackets for both indoor units, drill wall penetrations for each head, route two separate line sets from the outdoor unit to each indoor air handler, connect the communication cable to each zone, establish condensate drainage for both heads, and hardwire power.

The critical distinction is between pre charged quick connect line sets (used by Zone Air and MrCool DIY) and traditional flare type or brazed line sets that need professional tools. Pioneer systems, sometimes sold as DIY-friendly, use flare line sets that need a vacuum pump, so in our view they are not truly diy. Senville systems void the warranty if installed by the homeowner, which defeats the purpose completely. With Zone Air and MrCool, you never need to handle refrigerant, pull vacuum or use flare connections.

Dual zone adds complexity versus a single-zone install: you are running two sets of lines, planning condensate drainage for two indoor units, and ensuring both communication cable connections are correct. Safety and local code considerations matter, including proper circuit sizing and permits. Electrical work such as running a dedicated 230V breaker is where many diy homeowners wisely hire an electrician even for a diy system.

• Time: expect one full weekend (8–14 hours) for a first-timer with basic tools
• Tools needed: drill, hole saw, level, torque wrenches, basic hand tools
• What not to improvise: electrical connections, line set routing through load-bearing walls, or skipping condensate drainage

Easy installation is realistic with pre charged systems. Just respect the boundaries of what needs a pro.

Best Uses for a 2 Zone DIY Mini Split

Dual zone systems hit a "just right" balance: more flexible than single-zone, less complex and cheaper than 3–5 zone diy multi zone systems. In low temperatures, the systems can operate effectively as heat pumps, making them viable year-round in most US climate zones.

Scenarios where a 2 zone diy mini split system shines:

• Finished basement: convert a living area (~600 sq ft) and guest bedroom (~400 sq ft) into two conditioned spaces using a 30K BTU dual zone system (18K + 12K heads; zone-air.com/products/dual-zone-30k-btu-230v-mini-split/).
• Older home without ductwork: serve a main living area and primary suite with a Zone Air dual zone system with two 18K heads. Independent temperature control means you heat the bedroom at night while the living room stays set back.
• Garage workshop + bonus room: condition a workshop with an 18K head and an office above with a 12K head. If the office has no good wall space, a ceiling cassette or a Thin-Air concealed ducted unit from Zone Air fixes the problem.

A single-zone diy mini split is enough when just one space needs conditioning. Step up to a 3 zone diy multi zone system when you need to cover more than two separate rooms.

2 Zone DIY vs Hiring a Pro Cost Breakdown

Realistic 2026 pricing for 2 zone diy mini split equipment, as of October 2026:

• Zone Air: dual zone packages from $3,039.99 (24K wall mount) to $4,039.99 for the 36K wall, cassette or concealed ducted pairs, plus a pre-charged line set per zone ($229.99 for 16 ft)
• MrCool DIY: sold as condenser-plus-head kits with fixed-length line sets through big-box retailers and MrCool's own store; check the retailer's live listing for the current price, since kits are priced by line set length

The systems are designed to reduce installation costs for homeowners. A professional multi-zone install adds labor and a refrigerant charge on top of the equipment, and a flare system adds the vacuum pump, gauge set and flaring tools, which Zone Air's FAQ puts at $400–600 to rent or buy. Pre charged line sets eliminate that equipment and the charging step.

Budget for these extras even on a diy install:

• Electrician for a dedicated 230V circuit: $200–$600
• Condenser pad or wall bracket: $50–$150
• Line set covers: $50–$100
• Permits (varies by local code): $50–$200

Contrast this with flare brands like Pioneer or Senville, which have competitive pricing on equipment but need professional tools, and in Senville's case a licensed HVAC professional to keep the warranty, so the labor comes back into the total. Choosing a true diy mini split system like Zone Air or MrCool keeps that cost out.

Performance, Comfort and Efficiency in Real-World Use

Dual zone heat pump systems can give you precise room-by-room temperature control. You can set the bedroom to 68°F for sleeping while the living room holds 72°F during the evening, all from one outdoor unit. This can eliminate the compromise of a single thermostat and can produce real energy savings.

Inverter-driven compressors in both Zone Air and MrCool are ramping output up and down rather than cycling on and off. The result: stable temperatures, quieter operation and lower electricity bills. On low, Zone Air indoor heads run at 30 dB, far quieter than a window unit. Outdoor sound is 62 dB(A) for Zone Air's 27K outdoor unit and 64 dB(A) for MrCool's 36K condenser, acceptable in suburban and tight-lot settings.

Cold-climate performance is strong. Both brands are rated to −13°F. MrCool's Easy Pro single-zone line is only rated to 5°F, and MrCool's higher-tier DIY models are rated lower than −13°F. For comparison, Senville's Arctic Series is rated to −22°F with a 5-year parts and 10-year compressor warranty, but Senville needs a licensed HVAC professional for the install and voids the warranty on DIY jobs. Pioneer's warranty is 1 year unless you register within one week of installation, which extends it to 5 years.

Many state and utility rebate programs still give incentives for high-efficiency heat pumps using low-GWP refrigerants like R-454B as of 2026. The federal 25C tax credit ended for systems placed in service after December 31, 2025, so check your local programs for current incentives.

How to Choose Between Zone Air and MrCool for Your 2 Zone Project

Here is a simple decision framework:

• Choose Zone Air if you want maximum indoor unit flexibility (wall, ceiling cassette, concealed ducted), final assembly, testing, and inspection in the USA, line sets cut to the exact length, and a warranty that stays valid with homeowner installation.
• Choose MrCool DIY dual zone if availability at major retailers, brand familiarity, a simple wall-mount configuration or a condenser larger than 27K are your top priorities. MrCool's 48K and 55K condensers cover larger single zones than Zone Air offers.

Before deciding, confirm your total BTU requirements for both zones combined with a sizing calculator (per zone-air.com), verify your electrical service (dual zone systems need 230V), and check whether the condenser supports future expansion if you might add zones later.

For 2026 dual zone diy mini splits, Zone Air is our top choice. MrCool DIY 5th Gen is right behind for easy nationwide buy and stays a solid choice for standard configurations.

2 Zone DIY Mini Split FAQ (2026)

What size 2 zone diy mini split do I need for two 400 sq ft rooms? Each 400 sq ft room typically needs around 9,000 to 12,000 BTU, putting your connected indoor capacity at roughly 18,000 to 24,000 BTU. Adjust upward for poor insulation, high ceilings or heavy sun exposure. Always use a load calculator rather than relying solely on square footage.

Can I install different indoor unit types on the same Zone Air 2 zone condenser? Yes. Zone Air diy systems support mixing a wall mounted air handler with a ceiling cassette, or a wall mount with a Thin-Air concealed ducted unit, all on one outdoor condenser. Zone Air's ceiling cassette throws air in four directions from a 22-inch square chassis, where MrCool's OuttaSight is a 57-inch single-slot cassette that discharges one way, and Zone Air's Thin-Air is the only DIY concealed ducted mini split as of October 2026. This is one of the biggest advantages of Zone Air over MrCool and other brands.

Are 2 zone diy mini splits really DIY, or do I still need an HVAC technician? Zone Air and MrCool DIY systems are designed for homeowner installation with basic tools. You do not need to handle refrigerant or own specialized HVAC equipment. However, electrical work may still require a licensed electrician depending on your local code. Some jurisdictions require permits.

How long do pre charged line sets need to be, and what if I have extra length? Zone Air cuts lengths to any whole foot from 5 to 75 feet, so you pick the right size per zone. MrCool allows up to 75 feet per indoor unit using its fixed lengths and a coupler. Excess length should be coiled per the installation manual. Too much extra line reduces efficiency.

What happens to heating performance at very low temperatures? Every heat pump loses some output as the outdoor temperature falls, so expect reduced capacity in the single digits. Both brands rate operation to −13°F. Below that, supplemental backup heat may be needed.

Can a 36,000 BTU 2 zone diy system cool an entire home? It can handle roughly 1,500–1,800 sq ft if the layout supports two zones covering the main areas and the home is reasonably well insulated. Larger or poorly insulated homes with multiple rooms will benefit from stepping up to a 3 zone system or, with MrCool, a higher capacity condenser.

Does the warranty get voided if I install the system myself? No. Both Zone Air and MrCool keep warranty valid with diy installation, provided you follow the manufacturer's specifications for line set length, voltage, breaker sizing and unit placement. Zone Air explicitly states this in its warranty policy, and there is no registration deadline with either brand (MrCool's warranty says so in as many words).

Bottom line: For a 2 zone diy mini split in 2026, Zone Air delivers the best combination of efficiency, build quality, indoor unit flexibility and warranty confidence. If you are ready to start your project, calculate your BTU load for both zones, verify your electrical service and order the exact line set lengths you need. A single weekend of focused work can give you year-round comfort in two rooms without a contractor bill.

Specs and warranty terms are manufacturer-published as of October 2026, subject to change. Verify before purchase. MRCOOL® is a trademark of its owner. MiniSplits on Sale and Zone Air are not affiliated with or endorsed by MRCOOL.
