Best Dual Zone Mini Split Reviews & Easy Installation Guide for 2026

If you're shopping for a way to heat and cool two rooms without ripping open walls for ductwork, you might want to take a hard look at the best dual zone mini split for your home. These systems have one outdoor unit and two indoor handlers, so you get room-by-room temperature control, serious energy efficiency and a much simpler install than central air conditioning. This guide has the best dual zone mini split systems for 2026, walks through sizing and efficiency, and shows you exactly what an easy-install DIY project looks like from start to finish.

Best Dual Zone Mini Splits for DIY in 2026

The short answer to "what is the best dual zone mini split for easy installation in 2026?" is Zone Air. Their dual-zone DIY packages ship with quick-connect line sets that come precharged with R-454B refrigerant from the factory, so you don't have to use vacuum pumps, manifold gauges or get an EPA-608 license the way traditional systems make you do. Zone Air dual-zone heat pumps deliver 24 SEER2 with wall-mount heads, cold climate heating down to −13°F, and pricing that starts at $3,499.99 here at MiniSplits on Sale for a complete two-zone package with both pre-charged line sets included.

Contractor-installed premium brands like Mitsubishi's MXZ multi-zone condensers with H2i Hyper-Heating and Daikin multi zone systems match or exceed those cold-weather specs, but they use field-charged flare connections, their warranties depend on a licensed HVAC contractor doing the install, and installed costs routinely land two to three times higher once labor is added in. If you want professional-grade comfort without professional-grade pricing, the DIY path is one you might want to consider.

There's a quick guide here before we get into the details:

• Easiest DIY install: Zone Air dual-zone precharged quick-connect systems, so you don't need specialized tools or certifications on the refrigerant side.
• Best for garages and bonus rooms: Units that are rated to heat at −13°F or lower, which includes Zone Air's dual-zone systems as well as the pro-installed Fujitsu XLTH and Mitsubishi H2i lines.
• Best cold climate dual zone: Fujitsu AIRSTAGE XLTH or Daikin Aurora series, which are rated for heating at −13°F to −15°F or lower.
• Best budget upgrade: MRCOOL DIY 5th Gen multi-zone (its 18K condenser runs two or three heads at 23.9 SEER2, the 27K at 23 SEER2, both rated to −13°F), or flare-connection value brands like Senville with SEER2 ratings in the mid-20s but a vacuum-pump install.

What Is a Dual Zone Mini Split?

A dual zone mini split system is basically one outdoor unit that hooks up to two indoor handlers with small refrigerant lines and communication wiring. Each indoor unit operates on its own with its own thermostat or remote control, so you can set different temperatures in different rooms. A dual-zone system has one outdoor unit and two indoor handlers-no more, no less. Pro-installed multi-zone systems can support up to eight indoor units from a single outdoor compressor, while single zone systems have one outdoor unit and one indoor unit.

Most modern mini splits are actually heat pumps, meaning they provide heating and cooling from the same unit by switching the refrigerant cycle. This makes them a lot more useful than window units or portable ACs. Dual-zone systems allow independent temperature control for two rooms, which works well for a primary bedroom plus home office, an upstairs and lower floor split, a living room plus guest suite, or adding climate control to a garage or bonus room that central HVAC doesn't reach.

The advantages over traditional HVAC systems are clear. Ductless mini splits get rid of the 20–30% energy loss that comes from pushing conditioned air through leaky ductwork in unconditioned attics or crawlspaces. They are also quieter than traditional HVAC systems, and indoor units often run in the low-20 to low-30 dB range. And each indoor unit in a multi-zone system can be controlled on its own, so you're not paying to cool or heat rooms nobody's using.

Best Dual Zone Mini Split Systems for 2026 by Use Case

Not every homeowner needs the same system. Here are the standout dual-zone picks for 2026, organized by what matters most to you.

Best DIY Dual Zone Overall: Zone Air Dual Zone DIY Heat Pump. Zone Air DIY dual-zone systems reach 24 SEER2 on wall-mount configurations, with dual-zone concealed bundles rated at 19 SEER2 and cassette pairs at 21 SEER2. Pre charged line sets come factory-sealed with R-454B. Heating operates down to −13°F. Coverage spans roughly 900–1,800 sq ft depending on indoor head pairing. Pricing starts at $3,499.99 on this site for the equipment, with two pre-charged line sets in the box. Best for homeowners who want full two-room coverage and prefer diy installation over hiring contractors.

Best Pro-Installed Performance: Mitsubishi MXZ with H2i Hyper-Heating. Mitsubishi's premium single-zone wall units carry SEER2 ratings in the low 30s, and their MXZ multi-zone condensers with H2i deliver reliable heating well below 0°F. The warranty is 5 years parts and 7 years compressor when a licensed contractor installs it, 10 years with registration and the 12-year term only applies when a Diamond Contractor does the install and registers it. This is a professionally installed system built for extreme cold and long service life-but expect installed costs of $9,000–$18,000 for a dual-zone setup.

Best for Budget Upgrades: MRCOOL DIY 5th Gen multi-zone or Senville Arctic. MRCOOL offers DIY mini-splits with pre-charged refrigerant lines. Its multi-zone condensers are rated 23.9 SEER2 (18K) and 23 SEER2 (27K) and heat down to −13°F, the same floor as Zone Air. Senville's Arctic series is rated to −22°F and up to 25.5 SEER2, but it is a flare system, and Senville's own policy says DIY installation will void your warranty coverage. These are solid choices for budget conscious buyers upgrading one or two rooms, as long as you know which one you can actually install yourself.

Best for Cold Climates: Fujitsu XLTH or Daikin Aurora. The Fujitsu AIRSTAGE (formerly Halcyon) XLTH line is a strong fit for large bedrooms and living spaces in northern climates, with Orion XLTH models rated to −15°F and the XLTH+ to −22°F. Fujitsu's warranty is 5 years parts and 7 years compressor, extended to 10 years only with a licensed-contractor install and registration, and systems bought from an online retailer are not covered. The Daikin Aurora FDMA ducted series operates down to −13°F. Both are built for professional installation.

A multi-zone system can cover 1,800 to 2,500 square feet when configured with three or more indoor heads, but for most dual-zone applications, you're looking at 900–1,800 sq ft of effective coverage.

Why Zone Air Is the Best DIY Dual Zone Mini Split in 2026

Zone Air stands out for one simple reason: their dual-zone DIY packages remove the most intimidating parts of mini split installation. Pre-charged quick-connect fittings make installation easy for DIY systems by eliminating conventional field evacuation and refrigerant charging completely. You connect factory-sealed line sets to the indoor and outdoor units, and the refrigerant is already measured and ready. No vacuum pumps, no gauges, no EPA certification (see Zone Air's FAQ) needed when installed according to the manufacturer's instructions.

Zone Air's multi-zone condensers can support wall-mounted, ceiling cassette and concealed ducted indoor units on the same outdoor compressor. As of October 2026 it is the only DIY mini split that lets you mix wall-mount, ceiling cassette and concealed ducted units on one outdoor unit. MRCOOL's DIY multi-zone line mixes wall and cassette heads but has no concealed-duct head. This lets you tailor each zone to its room-a wall-mount in the bedroom, a concealed ducted unit in the living area. Each room gets its own thermostat, so you're running independent heating and cooling zones from a single outdoor compressor.

Pricing is competitive. MiniSplits on Sale lists Zone Air dual-zone systems from $3,499.99, depending on configuration, with two pre-charged line sets included. If a run needs to go longer than the included sets, Zone Air cuts a pre-charged line set to any whole foot from 5 to 75 ft as a single factory-sealed run with no field joint. Of the brands compared here, it is the only one that does (as of October 2026). The warranty covers five years on parts and seven years on the compressor (see Zone Air's warranty page), with no registration deadline, and installing it yourself does not void it. U.S.-based technical support (8 AM–6 PM Mountain) backs it up, and Zone Air does final assembly, testing and inspection in the USA from globally-sourced components. If you're a first-time DIY mini split air conditioner owner, having a domestic support team available by phone makes a difference when you're mid-install with a question about line routing or condensate drainage.

Top Zone Air Dual Zone DIY Bundles

Zone Air puts together their dual-zone offerings around common room combinations. Every one of their dual-zone systems runs on the same 27,000 BTU outdoor unit. The BTU figure in the name is the connected indoor capacity. Here are representative packages worth evaluating:

• 9K + 9K BTU (up to 900 sq ft total): This is ideal for two similarly sized bedrooms or a bedroom plus home office. Wall-mount heads keep the install easy and the cost down. SEER2 on wall-mount configurations is 24.
• 12K + 9K BTU (up to 1,050 sq ft total): This pairs a larger living space or bonus room (12K head) with a smaller bedroom or office (9K head). Good for homes where one zone has a lot more square footage or heat gain than the other.
• 12K + 12K BTU (two rooms of about 350–600 sq ft each): This is two average bedrooms, or a primary bedroom and a home office that both see real use. Both heads are the same size, so you can usually expect that neither zone gets less cooling or heating when they run together. It is $3,499.99 here, the same as the smaller wall sets.
• 20,500 BTU concealed dual-zone (11K + 9.5K heads, up to 1,025 sq ft): This uses concealed slim-duct indoor handlers for a hidden installation. The outdoor condenser is rated at 27,000 BTU cooling capacity. SEER2 is 19 for this ducted configuration. Heating operates down to −13°F. Sound levels are 35–42 dB per head.
• 18K + 12K (up to 1,500 sq ft): This is for open-plan living areas paired with a large bedroom or finished basement. Like every Zone Air dual-zone system, it runs on 230V with a dedicated 30A double-pole breaker.

Buyers can choose different line-set lengths per zone-any whole foot from 5 to 75 feet-to match actual distances between condenser and indoor units. This reduces excess coiled line, clutter behind walls and the kinking risk that comes with putting 50 feet of line set into a 25-foot run. MRCOOL, by comparison, sells fixed 11.5, 16, 25, 35 and 50 ft sets, joins two with a coupler past 50 ft, and has you coil the excess. Recommended use cases include renovations, additions, garage apartments, finished basements and existing homes without ductwork.

Zone Air vs MRCOOL vs Senville vs Pioneer vs Cooper & Hunter: Which Dual Zone Brands Are Actually DIY?

Five brands keep coming up when you shop for a dual zone system online. They fall into two groups based on how the refrigerant lines go in, and that one difference can set your tool list, how long the install takes and whether the warranty still stands after you do the work yourself.

Pre-charged quick-connect (Zone Air, MRCOOL DIY): the line sets leave the factory already charged with R-454B and they are sealed behind quick-connect fittings. You thread the fittings on, torque them, open the valves and the refrigerant side is done. You don't need a vacuum pump, a gauge set or an EPA 608 card.

Flare connection (Senville, Pioneer, Cooper & Hunter): the copper comes empty or it comes pre-flared and connects with flare nuts. After that the lines have to be pressure tested and pulled down with a vacuum pump and a micron gauge before the charge stored in the outdoor unit is released. Some of these systems are sold as DIY-friendly, but in our view that's a job for someone who already owns the tools or is paying a technician.

Sources: Zone Air warranty, MRCOOL DIY 5th Gen warranty, MRCOOL DIY multi-zone manual, Senville warranty, Pioneer warranty policy, Cooper & Hunter warranty policy.

MRCOOL DIY Dual Zone

MRCOOL doesn't make a condenser that is only for two zones. Two heads go on either its 18K multi-zone condenser (up to three zones, 23.9 SEER2) or the 27K (up to four zones, 23 SEER2), and both are rated to heat at −13°F. Heads come as wall units or you can get the OuttaSight ceiling cassette. The line sets are pre-charged like Zone Air's, but they come in fixed lengths, and runs past 50 ft join two sets with a coupler. The manual has you coil any extra behind the condenser. MRCOOL's real edge is zone count: its bigger condensers can run up to six heads, where Zone Air's 27K stops at three. The warranty is 5 years on parts and 7 on the compressor with no registration needed, the same main term as Zone Air.

Senville Costs Less but Needs a Pro

Senville sells dual zone kits at lower equipment prices, and its Arctic Series is rated down to −22°F. The catch is the install. The copper comes empty and gets cut, flared, pressure tested and evacuated before the charge is released, and Senville's own warranty page says pressure testing and evacuation of line sets must be completed by a licensed HVAC professional and that DIY installation will void the coverage. The term itself is 5 years on parts and 10 on the compressor (Senville notes it can vary by series), and labor is never covered. If you were going to hire a tech anyway, Senville can make sense. As a weekend DIY project it doesn't.

Pioneer: Flexible Kits, Traditional Install

Pioneer sells single and multi-zone systems online at competitive prices, but its standard line sets are flare connections, so a real install means a vacuum pump, manifold gauges, a micron gauge, a flaring tool and a torque wrench, plus knowing how to leak test. Pioneer's warranty policy gives one year of parts coverage unless you register within one week after the product is properly installed, which gets you five years on parts and compressor. Labor isn't covered. It fits a homeowner who is happy doing the mounting and wiring and paying a local tech for the refrigerant side.

Cooper & Hunter Is Budget, Not DIY

Cooper & Hunter shows up a lot in online talk as a budget option, and its Hyper Heat models are rated to −22°F. Its line sets are pre-flared copper that still needs a vacuum, and its warranty policy applies only to products installed by a licensed HVAC technician and registered within 60 days. That is in the same group as Senville and Pioneer, not with the pre-charged systems.

Dual Zone vs Central Air and Single-Zone Mini Splits

The decision between a dual-zone ductless system, central air and separate single-zone mini splits comes down to cost, efficiency and comfort control.

Mini-splits eliminate the 20–30% energy loss from ductwork-losses that are common in central systems with ducts running through unconditioned attics or crawlspaces. A DIY dual-zone mini split package runs about $3,500–$4,500 for materials. For comparison, installing new central air conditioning with ductwork in a retrofit situation usually costs $8,000–$15,000 or more. Two independent single-zone units offer backup (if one fails, the other keeps running), but you're paying for two outdoor compressors, two sets of electrical connections, and more outdoor wall space.

Comfort is where dual-zone mini splits really separate from central systems. Instead of one thermostat controlling the entire house, each zone runs on its own. You can keep the bedroom at 68°F for sleeping while the living room stays at 72°F during the day-something a single central thermostat can't do without expensive zoning dampers.

On aesthetics, a mini split's indoor unit usually measures about 32 inches wide and sits high on a wall, which some homeowners find obvious. If that annoys you, ceiling cassettes and concealed ducted systems blend into the architecture. Central air registers are less visible but demand the ductwork that makes the whole system expensive in the first place.

How to Size a Dual Zone Mini Split

Getting BTU sizing right is non-negotiable. Oversized units short-cycle and fail to dehumidify properly, leaving you with sticky air and higher bills. Undersized systems run constantly without ever reaching setpoint.

Most mini-splits range from 9,000 to 24,000 BTU per indoor head. Use 20 BTU per square foot as a starting sizing rule, then adjust for your specific conditions:

• 9,000 BTU: This covers 150–300 sq ft, which is typical for bedrooms, home offices or small bonus rooms.
• 12,000 BTU: This covers rooms from 350 to 550 square feet, such as living rooms, larger bedrooms or combined kitchen-dining areas.
• 18,000–24,000 BTU: This is for larger open areas, great rooms or combined spaces over 550 sq ft.

You should adjust BTU needs for high ceilings or strong sunlight. Rooms with large windows that face south or west absorb a lot more heat. Rooms with poorly insulated walls, garages and rooms above unconditioned spaces all push load calculations upward. A room size of 400 sq ft with vaulted ceilings and full sun exposure may need 15,000 BTU rather than the 12,000 that square footage alone suggests.

The outdoor condenser in a dual-zone system is sized for the load both zones put on it at the same time, not simply the sum of indoor unit nameplate BTUs. Inverter-driven compressors shift capacity between zones based on demand, so it's rare that both indoor heads call for full output at the same time. Still, a basic Manual J load calculation or an online tool like Zone Air's free mini split sizing calculator will give you far better results than guessing.

SEER2, HSPF2 and Inverter Compressors

Efficiency ratings determine how much you'll pay to run your dual-zone system every month, so understanding them is worth a few minutes.

SEER2 replaced SEER as the efficiency standard in 2023, and it uses updated testing procedures that better reflect real-world conditions. SEER2 ratings usually run about 5% lower than equivalent SEER ratings, so a system that was rated SEER 20 under the old standard might test at SEER2 19 today. Don't compare old SEER numbers directly to new SEER2 numbers-you'll think the newer system is less efficient when it isn't.

Here are practical reference ranges for cooling efficiency:

• SEER2 15–17: Minimum starting point. This is acceptable for lightly used spaces or mild climate zone applications.
• SEER2 18–21: This is good for secondary or moderate-use zones like guest rooms or home offices.
• SEER2 21–24: This is considered excellent for energy savings. It is ideal for high use zones and primary living space areas. A 24 SEER2 unit uses about a third less electricity than a 16 SEER2 unit.
• SEER2 25+ is premium range for high-use zones. It is currently reached by top-tier single-zone units like certain Mitsubishi and Fujitsu systems.

At 24 SEER2 on 230V wall-mount dual zones, Zone Air is the highest-efficiency pre-charged quick-connect DIY system of the brands compared here. MRCOOL's multi-zone condensers are rated 23.9 and 23. With cassette dual zones at 21 SEER2 and concealed ducted pairs at 19, the head style you pick changes the number for Zone Air.

HSPF2 measures heating-season efficiency. Higher numbers mean lower heating bills, and this is especially important if you're using a heat pump as your primary heat source in a cold climate. Zone Air's wall-mount dual zones are rated 10.5 HSPF2.

Most mini-splits have inverter technology for energy efficiency. Multi-zone mini-splits use advanced inverter technology that changes compressor speed rather than cycling full on and off. The result is smoother temperature control, quieter operation, better dehumidification at partial loads, and lower electricity consumption. Virtually every system worth buying in 2026-DIY or pro-installed-runs an inverter compressor.

115V vs 230V Dual Zone Mini Splits

Most dual-zone mini split systems 18,000 BTU and above need 230V circuits. Most 9,000 and 12,000 BTU mini-splits run on 115V as standalone single-zone units, but once you're running a dual-zone condenser with two indoor heads, you're almost certainly looking at 208–230V with a dedicated breaker.

Zone Air offers 115V only on its 9K and 12K single-zone models. Their dual-zone packages run on 230V and need a dedicated 30A double-pole breaker and outdoor disconnect box. Electrical requirements for dual-zone mini splits include a 230V breaker and disconnect box, which means most homeowners will need an electrician for this portion of the project-even if they handle the rest of the install themselves.

Before buying, verify your panel capacity, existing breaker availability and local building codes for HVAC electrical work. Most mini-splits need a dedicated electrical line, and installation of dual-zone systems needs a dedicated electrical circuit separate from other household loads. Running wire that is too small or using an improper breaker can void your warranty, damage equipment or create a fire hazard. Correct electrical setup is key to safety, performance and keeping your warranty valid.

Matching Indoor Unit Styles to Each Zone

With wall-mounted, cassette and concealed ducted heads all supported on a single multi-zone condenser, Zone Air lets you customize each zone to its room's layout and your aesthetic preferences.

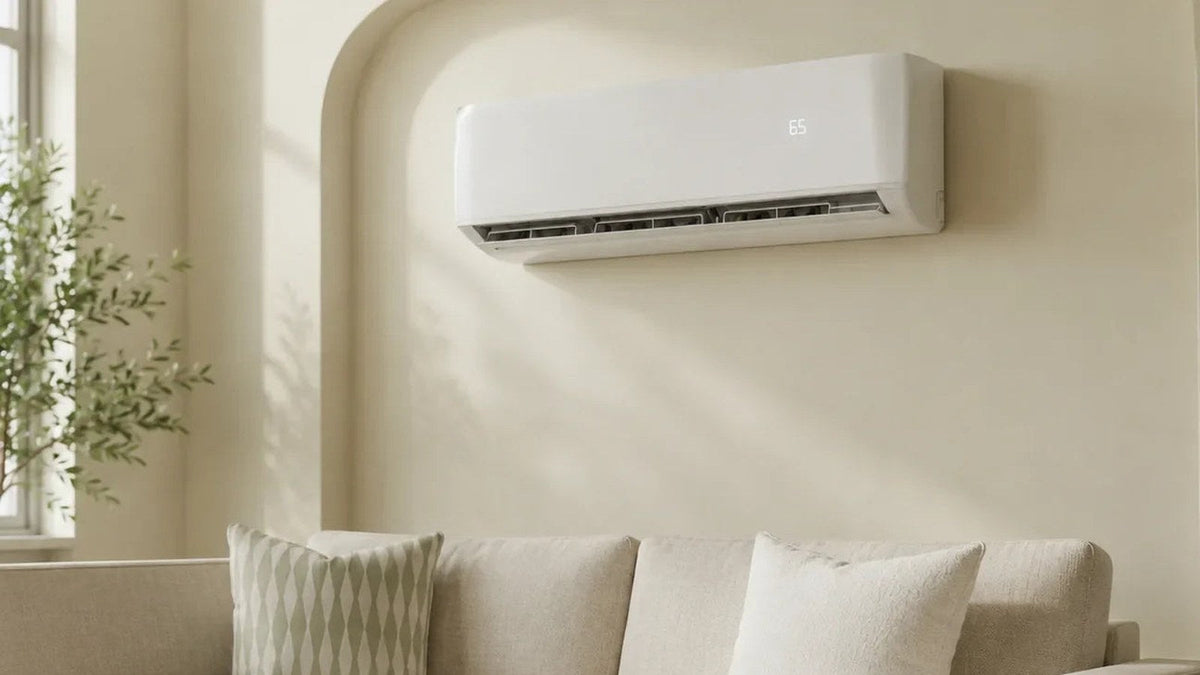

Wall-mounted heads are the most popular for diy models. They're the easiest to install, deliver excellent airflow and work well in bedrooms, offices and living rooms with enough wall space. A mini split's indoor unit usually measures about 32 inches wide and sits near the ceiling.

Ceiling cassettes go into the ceiling for a less obvious look. They're ideal for finished rooms with drop ceilings or accessible ceiling cavities-think bonus rooms or open-plan living areas where you don't want a visible unit on the wall. With air thrown in four directions from a 22-1/2 inch square chassis, Zone Air's Airframe cassette sits in the middle of a room and covers it evenly. MRCOOL's DIY OuttaSight is a 50-inch single-slot cassette that blows one way, which works more like a ceiling-mounted wall unit along one side of a room.

Concealed ducted units hide behind walls or above ceilings, with only supply and return grilles visible. Zone Air's Thin-Air concealed slim-duct handlers (zone-air.com) are 7-7/8 inches tall, include built-in condensate pumps and can feed two or three rooms from one unit through short duct runs-essentially a mini ducted system without the losses of a central system. As of October 2026, Zone Air is the only DIY concealed ducted mini split system on the market. MRCOOL does not sell a concealed-duct DIY unit.

Floor mounts sit at baseboard level below windows or on knee walls. Fujitsu systems offer floor-mounted options in their multi-zone product ranges, and they're useful in rooms with limited wall or ceiling access.

Mixing styles may slightly increase installed cost and complexity, but the improvement in airflow patterns and room aesthetics is often worth it. A concealed unit in the living space paired with a wall-mount in the bedroom gives you the best of both options.

DIY vs Pro Installation for Dual Zone Mini Splits

Installation of mini split systems can involve significant physical labor and technical knowledge, and dual-zone installs are more complex than single-zone jobs-two line sets to route, two indoor units to mount, more electrical connections. But with precharged quick-connect systems like Zone Air, you can handle the majority of the work if you're a capable DIYer.

What DIYers can handle:

• Mounting indoor units and the outdoor condenser on a pad or wall bracket
• Running precharged line sets and communication wire through holes in the wall
• Routing and securing condensate drains with proper slope
• Basic weather sealing and sealing wall sleeves
• A small hole is needed in the wall for ductless mini split systems to manage conduit and lines-usually 3 inches in diameter

Where professionals are commonly needed:

• New 230V electrical circuits, breaker installation and outdoor disconnect boxes
• Traditional flare-line mini split systems that need vacuuming and refrigerant charging-professional-grade mini split systems need specialized tools for installation and maintenance
• Complex multi-zone designs with long line runs or hard routing
• Jurisdictions where permits require licensed HVAC work

DIY mini-splits eliminate the need for professional refrigerant handling on the refrigerant side, which is the most expensive and specialized part of a traditional install. The vacuum pump, manifold gauges and flaring tools for a conventional system run $400–600 to rent or buy, and that equipment is exactly what a pre-charged system removes from the job.

Cost comparison: a contractor-installed dual-zone system usually runs $9,000–$18,000 all-in (materials plus $2,000–$5,000+ in labor). A Zone Air DIY dual-zone package runs about $3,500–$4,500 in materials. Even after hiring an electrician for the 230V circuit ($300–$800), you're saving several thousand dollars.

Zone Air's warranty is designed for DIY installation, but always follow manufacturer instructions exactly to keep coverage intact. Some brands limit warranty coverage if installation is done by non-certified individuals: Senville states that DIY installation will void your warranty coverage, and Mitsubishi, Fujitsu and Daikin tie their longer terms to a licensed or certified contractor. Mini-split installation involves electrical work and refrigerant handling-even with pre-charged systems, the electrical side must be done correctly.

How Easy-Install Dual Zone DIY Systems Go In

This isn't a full installation manual, but here's how a typical precharged quick-connect dual-zone install goes:

1. Plan layout and sizing. Confirm the BTU load per zone, choose the indoor head sizes, verify the outdoor condenser capacity, and measure the line-set distances. Order the correct line-set lengths for each run.
2. Mount the outdoor condenser. Set it on a level concrete pad or wall bracket with manufacturer-specified clearance on all sides for airflow. It should be near the electrical disconnect location.
3. Install indoor unit mounting plates. Secure brackets to wall studs or ceiling joists. Drill wall sleeves (a small hole, usually 3 inches) for the line sets, communication wire and condensate drain. Angle the sleeve slightly downward toward the outside to promote drainage.
4. Run precharged line sets. Route each zone's factory-sealed line set from the indoor unit through the wall sleeve to the outdoor condenser. Connect quick-connect fittings at both ends per manufacturer specifications. No vacuum pumps, gauges or EPA 608 certification are needed for precharged systems.
5. Route condensate drains. Ensure proper slope for gravity drainage. If you are using concealed ducted units, the built-in condensate pump handles the lift. Seal all wall penetrations to prevent water intrusion and pests.
6. Complete electrical connections. Wire from panel to outdoor disconnect to condenser. Connect communication wiring between outdoor and indoor units. Confirm breaker size, voltage and electrical grounding per installation manual.
7. Commission the system. Power on, cycle through heating and cooling modes on each zone, verify airflow and drainage, listen for unusual sounds and run through the manufacturer's startup checklist.

With a helper, a dual-zone precharged install is often a long day or weekend project if you are a competent DIYer. Zone Air's own estimate for a single wall-mount zone is 4–6 hours for two people the first time. You'll need a drill, hole saw (3–3.5 inch), level, torque wrenches, basic hand tools and potentially a fish tape for wire routing. Always shut off power before making electrical connections, support lines properly to prevent kinking, and seal every wall penetration.

Dual Zone Picks by Climate

Climate often sets the brand before price does. Match the rated heating floor to your coldest normal winter nights first, then sort out budget and how much of the install you want to do.

• Cold climates (zones 5–7, the northern U.S.): Zone Air dual zones and MRCOOL's DIY multi-zone condensers are both rated to −13°F, so the DIY choice here comes down to line sets, head styles and price. If your design temperature sits below −13°F, neither DIY dual zone is the whole answer. Look at a pro-installed cold-climate line such as Fujitsu's XLTH+ (rated to −22°F) or Mitsubishi's H2i, or keep a backup heat source. Don't count on a model that is only rated to 5°F for primary heat.
• Mixed climates (zones 3–4): any of the pre-charged systems works. You can pick based on line-set length, which indoor styles you need and the price of the pair you want.
• Hot, humid climates (the South): put each bedroom on its own zone so you are only drying and cooling the rooms in use, and lean on dry mode in the off-seasons. Zone Air is rated to cool in outdoor temperatures up to 131°F. MRCOOL lists 122°F for its DIY multi-zone condensers. That matters for a condenser sitting on a sun-baked west wall in Phoenix or Texas.

Dual Zone Install Mistakes to Avoid

Most dual zone problems come back to a few planning and install shortcuts. Here's what to watch:

• Going past the line-set or lift limits. Zone Air lets runs go up to 75 ft and 30 ft of vertical lift. MRCOOL caps a run at 75 ft per indoor unit. Measure both runs before you order, not after the condenser is on its pad.
• Pairing heads that don't fit the condenser. MRCOOL's multi-zone manual wants at least three quarters of the condenser's rating connected, and Zone Air's 27K condenser takes two or three heads. Too little connected capacity short-cycles. Too much means both rooms fall behind on the hottest and coldest days.
• Coiling extra line the wrong way. Excess line coiled straight up and down can trap oil. A line set cut close to the real run length keeps you from having to coil it at all.
• Guessing at torque. Quick-connect fittings and flare nuts both have a torque spec. Use a torque wrench, then soap-test each joint.
• Leaving wall penetrations open. A gap around the line set lets in water, air and bugs. Seal both sides of the wall.
• Skipping the electrical permit. Every Zone Air dual zone runs on 230V with a dedicated 30A double-pole breaker and an outdoor disconnect. In most places that work needs a permit, and often an electrician.
• Forgetting the filters. Two indoor units means two sets of filters to rinse every few weeks in heavy use.

Costs and 2026 Incentives for Dual Zone Heat Pumps

Equipment-only costs for dual-zone diy mini split kits in 2026 range from about $3,000 to $4,500 depending on brand, capacity and indoor unit style. Zone Air dual-zone packages start at $3,499.99 on this site. Premium brands like Mitsubishi and Daikin run higher on materials alone, and once you add professional installation, total costs land between $9,000 and $18,000 for a dual-zone setup.

The energy savings from a high-efficiency dual-zone mini split can offset the upfront cost over time, especially when compared to central air with aging ductwork. Mini splits offer real monthly savings through eliminated duct losses and inverter-driven efficiency.

On the incentive side, the U.S. federal 25C tax credit for qualifying heat pumps ended for equipment placed in service after December 31, 2025. If you installed a qualifying system before that date, you may have been eligible on that year's return. A system installed in 2026 does not qualify. State-level rebates and utility incentive programs continue in many areas, with some aimed at cold-climate heat pumps or income-qualified households. Before buying, confirm that your specific model appears in your state or utility's eligible equipment list-not all mini split systems qualify.

Keeping Dual Zone Mini Splits Running Efficiently

Even the best mini split system can lose efficiency if you ignore basic maintenance. Here's what to stay on top of:

• Every 2–4 weeks during heavy use: Clean indoor unit pre-filters. These wash easily under running water and dry in minutes. Clogged filters restrict airflow, raise bills and can cause coils to ice over.
• Monthly: Wipe accessible surfaces and check supply vents for dust buildup. Ensure the outdoor unit is clear of leaves, snow and debris, and maintain manufacturer-recommended clearance for airflow.
• Every 2–3 years: Schedule a professional checkup for refrigerant level verification, electrical connection inspection and coil cleaning. Routine maintenance needs attention to refrigerant connections to avoid leaks. Dual-zone and multi-zone condensers have more connection points than single-zone units, making periodic leak checks important.

Neglected maintenance leads to higher bills, poor dehumidification (especially in high humidity climates), and potential warranty issues. A mini-split system can last about 15 years or more with proper care-longer in mild climates with lighter use, shorter if maintenance is missed or the system runs in extreme cold year-round.

One important note: mini split pre-filters protect the equipment and help with comfort, but they're not a replacement for dedicated indoor air quality filtration. If you need serious particle or allergy control, pair your ductless mini split with a standalone HEPA air purifier or whole-home filtration system.

Common Questions About Dual Zone Mini Splits in 2026

Can I add a third indoor unit later to my dual-zone condenser? It depends on the specific model. Some multi-zone condensers are designed to accept additional indoor heads as long as total connected capacity stays within the condenser's rated limits and a spare port is available. Zone Air's 27,000 BTU multi-zone condenser supports two or three indoor units, so a dual-zone buyer can add a third head later on the spare port with another pre-charged line set, plus routing and electrical for that zone. A single-zone condenser can't be converted, which is why it pays to start with the multi-zone outdoor unit if you expect to add a room later.

How loud are dual-zone indoor units vs window ACs or central air vents? Mini splits are dramatically quieter. Wall-mounted indoor heads often run at 20–30 dB on low fan speed-about the volume of a whisper. Zone Air's wall heads are rated 30 dB in quiet mode. Window units commonly hit 50–60 dB. Central air registers can push air hard depending on duct velocity and register type. Zone Air's concealed ducted heads run 35–42 dB, which is still much quieter than most window units or forced-air registers.

Can a dual zone heat pump replace my furnace? In many mild to moderately cold climates, yes-particularly if your heat pump has a cold-climate rating with full heating capacity down to −13°F or lower. Mini-splits can operate efficiently in extreme cold down to −13°F, and premium models push even lower. In regions where temperatures regularly drop below −15°F to −20°F, supplemental heat or a hybrid setup may still be necessary. Mini-splits can provide heating and cooling from the same unit, making them a viable whole house or partial-home heating solution.

Will a dual zone ductless mini split work in very cold climates? Absolutely, with the right equipment. Fujitsu XLTH and Mitsubishi H2i models can maintain high heating capacity well below 0°F. Zone Air's dual-zone systems are rated for heating down to −13°F, the same floor as MRCOOL's standard DIY 5th Gen multi-zone condensers. MRCOOL's higher-tier single-zone DIY models are rated lower. The key is choosing a system with a strong HSPF2 rating and verified low-ambient performance for your climate zone.

What happens if one zone needs more BTUs than the other? Inverter compressors adjust output on the fly. When only one indoor unit is calling for heating or cooling capacity, more of the condenser's capacity flows to that zone. If both zones call simultaneously at full load and the outdoor compressor reaches its limit, one zone may receive reduced output. This is why proper sizing and reasonable indoor head pairing matter-don't put two 18K heads (36,000 BTU connected) on a condenser rated for 27K and expect both to run full blast simultaneously.

Is Senville a DIY dual zone mini split? Not in the way Zone Air and MRCOOL are. Senville line sets are flare connections that need a vacuum pump and micron gauge, and Senville's warranty says pressure testing and evacuation must be done by a licensed HVAC professional and that DIY installation will void coverage.

Is a Pioneer dual zone a DIY install? Partly. You can mount the units and run the wiring, but the flare connections, vacuum and leak test take HVAC tools and know-how, and longer coverage depends on registering within a week of a proper install. Many owners pay a technician for that part.

Zone Air or MRCOOL for a dual zone: which is better? Both are pre-charged quick-connect, both heat to −13°F, and both carry 5-year parts and 7-year compressor coverage with no registration. Zone Air's wall dual zones are rated 24 SEER2 against MRCOOL's 23.9 and 23, its line sets can be cut to the length you measure, and one condenser can mix wall, cassette and concealed ducted heads. MRCOOL can run more zones per condenser, up to six on its larger units. If you only ever need two or three rooms, that last point doesn't come into play.

Is a Dual Zone DIY Mini Split Right for You?

A dual-zone mini split delivers what central air and window units can't: true room-by-room control, getting rid of the duct losses that waste 20–30% of your energy, and a realistic path to save energy every month on heating and cooling. For homeowners adding comfort to individual rooms that existing central HVAC doesn't reach-or replacing an aging entire house system with something more efficient-the dual-zone approach hits a practical sweet spot.

For 2026 homeowners who want easy installation, precharged line sets, smart features like independent zone control, and solid warranties without the premium price of a professionally installed system, Zone Air dual-zone DIY mini split systems are a top choice. If you're moderately handy, comfortable with basic tools and willing to hire an electrician for the 230V circuit, you can realistically install a dual-zone system over a weekend and start enjoying high-efficiency comfort immediately.

Before you buy, confirm your sizing with a load calculation, verify your electrical panel can support a dedicated circuit, and check whether your state or utility offers rebates for qualifying heat pump installations. Then explore the Zone Air dual-zone mini split lineup to compare capacities, indoor unit styles and configurations that match your living space. Take the time to size it right, install it carefully and maintain it consistently-and your dual-zone system will deliver reliable comfort for years to come.
