DIY Concealed Duct Multi Zone Mini Split: Planning, Sizing and Install Guide

October 11, 2026

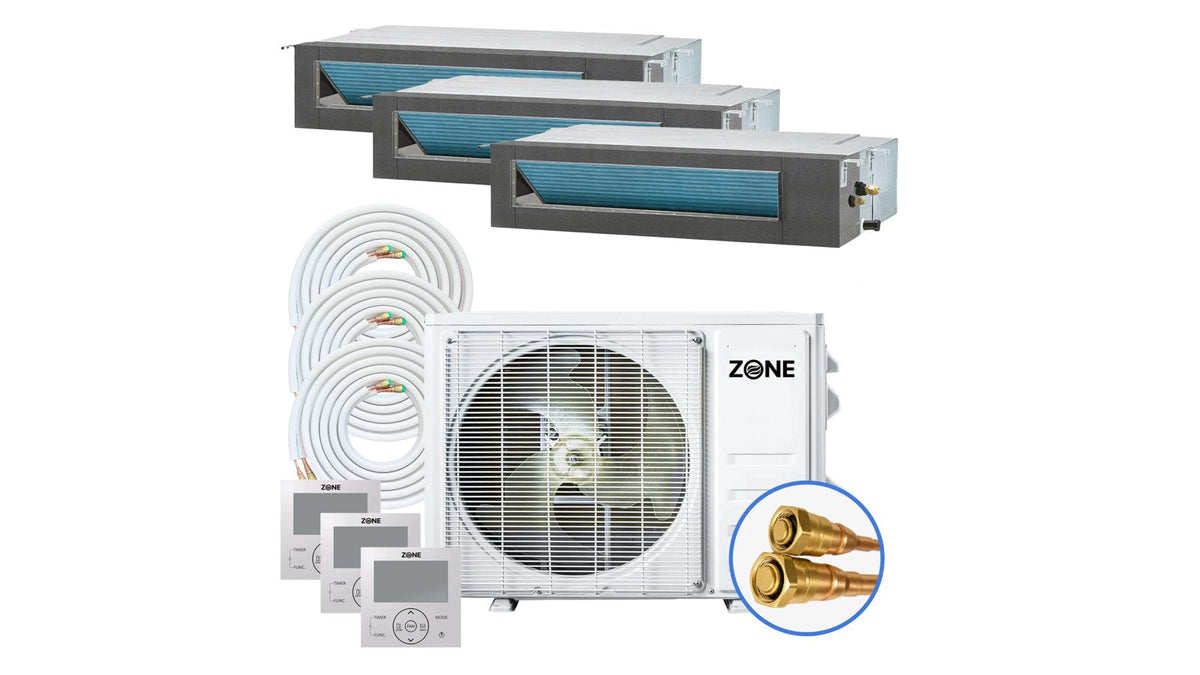

Zone Air three zone concealed ducted mini split kit with three slim duct air handlers, outdoor condenser, pre-charged line sets and wired controllers

Quick Overview of This Guide

This guide walks you through every step of how to plan, size and install a DIY concealed duct multi zone mini split system. The idea is to get an HVAC setup that is completely hidden and that conditions multiple rooms without you having to bring in a full-service contractor.

A DIY concealed duct multi-zone mini-split system uses indoor air handlers that are hidden and that connect to an outdoor unit. With hidden indoor air handlers, you can put the air handler above a ceiling, in an attic or behind a soffit. In the living spaces, you only see supply vents and a return air grille.
Multi-zone mini splits can connect two or more indoor units to the same outdoor condenser, and each zone can be controlled independently.
Pre-charged line set connections let you make refrigerant connections without having to do brazing, evacuation or use a vacuum pump.
As of October 2026, Zone Air's Thin-Air line is the only DIY concealed ducted mini split system on the market. If you want a concealed ducted unit for individual rooms and want to install it yourself, it is your only option.

This guide focuses on ducted mini split systems with 2 or 3 zones, supply runs that are short and up to 15 feet, and a heat pump outdoor unit that handles both heating and cooling all year.

What Is a Concealed Duct Mini Split?

A concealed duct mini split is a type of mini split system where the indoor air handler is hidden inside a ceiling cavity, attic or soffit and connected to short ducts that feed conditioned air into one or more rooms. Unlike a wall mounted indoor unit that sits on the wall of each room, the equipment itself is completely hidden. In the room, you only see slim supply vents and a return air grille. Concealed duct systems keep a clean look with only vents visible, which makes them a natural fit for spaces where the inside design matters.

The terms "concealed duct mini split," "ducted mini split," "slim duct unit," and "hidden ductless mini split" all describe the same basic indoor unit style. Through short branch ducts, a single Zone Air concealed unit can supply 2 to 3 rooms. Rooms on the same unit share one temperature setting.

The main components of the system:

Indoor air handler: a slim rectangular chassis that sits horizontally above a ceiling or inside a closet. At 7 7/8 inches tall, 27 1/2 inches wide, and 19 1/4 inches deep, Zone Air's Thin-Air units are compact, with a rear or bottom return.
Outdoor condenser: a heat pump that sits on a pad on the exterior of the building and handles both heating and cooling cycles.
Refrigerant line set: insulated copper tubing that connects the indoor and outdoor units.
Small-diameter ducts: short insulated branches (6 to 8 inches in diameter) that run from a supply plenum to ceiling registers.
Controls: a wireless remote, wired wall controller or Wi-Fi control for each zone.

Single-Zone vs Multi-Zone Concealed Duct DIY Systems

A single-zone system has one indoor unit with one outdoor unit and serves one area of the home. Several indoor air handlers connect to one outdoor condenser in a multi zone system, and each zone gets independent temperature control. Off one 27,000 BTU outdoor condenser, Zone Air's multi-zone systems run 2 or 3 indoor units.

Single-zone: best for conditioning a single master suite, open studio or bonus room. About 475 square feet can be covered by a 9,500 BTU concealed unit. About 550 square feet can be handled by an 11,000 BTU unit.
Dual-zone: two concealed indoor units (for example, two 11,000 BTU heads adding up to 22,000 BTU) share one 27,000 BTU outdoor condenser. This setup serves two adjacent bedrooms or a bedroom plus a living area.
Three-zone: a three-zone system can pair concealed duct units in living rooms and open kitchens with wall mounted units or ceiling cassettes in garages, home offices or other rooms where concealed ductwork is hard to do. As of October 2026, Zone Air is the only DIY mini split that lets you mix wall-mount, ceiling cassette and concealed ducted units on one outdoor unit.

Multi-zone systems use one outdoor condenser for multiple indoor units. Total connected indoor capacity is allowed to exceed the condenser's rating because all zones rarely peak at once. Up to 36,000 BTU of connected indoor capacity can be handled by Zone Air's 27,000 BTU condenser.

How a Concealed Duct Multi Zone Mini Split Works

The outdoor unit is an inverter-driven heat pump that circulates refrigerant to each indoor unit through dedicated line sets. Inverter-driven compressors adjust output continuously to match the actual demand from each zone, rather than cycling on and off at full power. To switch between heating and cooling, a reversing valve changes the direction of the refrigerant cycle, and that is what lets a mini split heat pump provide year-round climate control. Down to -13°F on the exterior, Zone Air's concealed systems keep heating.

Indoor air handler: the slim duct unit installs above a drop ceiling, in an attic or inside a soffit. Return air is pulled through a return grille, passes over the evaporator coil, and is pushed through supply ducts into the room. Zone Air units can also take a fresh air intake or connect to existing ductwork.
Refrigerant line sets: insulated copper tubing carries refrigerant between the outdoor and indoor units. DIY-oriented systems use pre-charged, quick-connect line sets that are sealed at the factory, so the installer never opens the refrigerant circuit.
Ductwork: concealed duct systems need short duct runs. You can go up to 15 feet per supply run with Zone Air. Each supply branch is usually 6 to 8 inches in diameter, which keeps static pressure low. From 0.1 to 0.4 inches of water column, Zone Air's Thin-Air units have adjustable external static pressure.
Controls: each indoor unit in a multi-zone system has its own controller. The outdoor condenser changes its total output to match combined demand across all active zones.

Benefits of a Concealed Duct Mini Split

Concealed duct mini splits bring together looks, comfort and efficiency. They solve problems that both traditional central air systems and exposed wall heads leave on the table.

Invisible equipment: the air handler is out of sight above the ceiling. Only supply vents and a return air grille are visible, which makes these an ideal solution for modern inside spaces, historic renovations and finished spaces where wall space is limited.
Energy efficiency: multi-zone mini splits improve energy efficiency by zoning temperature control. You can heat or cool only the zones that are in use, rather than pushing air through a large main duct. ENERGY STAR estimates that 20 to 30 percent of the air moving through a typical home's duct system is lost to leaks, holes and poorly connected ducts. Rated 19.6 SEER2, Zone Air's single-zone 9,500 BTU concealed unit is well above the 14.3 SEER2 federal minimum for split heat pumps, and its three-zone concealed systems are rated 22 SEER2.
Zoned comfort: a three-zone system lets you keep the master bedroom at 68°F overnight while the living room and kitchen stay at 72°F during the day, with no wasted conditioning.
Quiet operation: indoor sound levels are as low as 39 dB in quiet mode. Because the air handler is isolated above the ceiling, the sound at the vent is similar to gentle airflow from a central-air register.
Layout flexibility: you can mix concealed duct indoor units in main areas with wall mounted units or ceiling cassettes in a garage or home office, all running off the same outdoor condenser.

Where Concealed Duct Mini Splits Work Best

Concealed systems can work best when the structure offers overhead access and you want a clean look. Below are the scenarios where they deliver the most value.

Attic or loft access: one- and two-story homes with accessible attics above the conditioned space are the easiest installs. The air handler sits on a service platform between ceiling joists, with short ducts dropping through the ceiling into rooms below.
Drop ceiling and soffit installs: finished basements, offices or retail spaces with grid ceilings can hold a slim duct unit above the tiles, with supply branches running to adjacent zones.
High-end residential: master suites, open-plan living and dining areas, and custom homes where visible wall heads do not match the design. If the ceiling bay is inaccessible, an indoor unit can also be put in a walk in closet or utility closet adjacent to a master bedroom.
Light commercial: boutiques, galleries and small offices where quiet, nearly invisible cooling solutions matter and extensive sheet-metal ductwork is hard to do.
Poor match: solid concrete slab ceilings with no overhead cavity, structures with zero attic space, or projects on a tight budget. It is also usually a poor fit for a small room when budget and fast installation are the priority, since a wall mounted mini split will usually cost less and go in faster.

BTU, Ton and SEER2 Basics

Correct sizing is the single biggest factor in comfort and efficiency. Ducted mini splits add a layer of detail because static pressure losses from ductwork can reduce effective capacity below the nameplate rating.

Tons to BTU: 1 ton equals 12,000 BTU. Common multi-zone condenser sizes are 18,000 BTU (1.5 ton), 24,000 BTU (2 ton), 27,000 BTU (2.25 ton), and 36,000 BTU (3 ton).
Rule of thumb: use 20 BTU per square foot for sizing concealed systems in an average, well-insulated home. You should increase BTU by 20% for high ceilings over 10 feet. Homes with large window areas or poor insulation also need upward adjustment.
De-rating: a concealed duct indoor unit may deliver less than its nameplate capacity once external static pressure from the duct runs is taken into account. Always check manufacturer capacity tables at your expected static pressure.
SEER2 and HSPF2: SEER2 measures cooling efficiency under DOE test conditions introduced in 2023. HSPF2 measures heating performance. For example, Zone Air's three-zone concealed systems rate 22 SEER2 and 9.0 HSPF2, and its dual-zone concealed systems rate 19 SEER2.
Practical example: a 24,000 BTU concealed duct system often serves 900 to 1,200 square feet depending on climate, insulation quality and ceiling height.

Standards for load calculations (Manual J) and duct design (Manual D) are published by the Air Conditioning Contractors of America. Using these rather than rules of thumb alone gives the most accurate sizing.

How to Size a Concealed Duct Multi Zone Mini Split

Proper sizing goes beyond square footage. The layout, duct length and zone group all affect which system fits your project.

Map your zones: list the rooms each indoor unit will serve. A common group is a master bedroom plus bathroom plus closet on one unit. Two kids' bedrooms are on a second unit. An open kitchen and living area are on a third.
Calculate individual room loads: multiply each room's square footage by 20 BTU per square foot as a starting point. Adjust upward for south- or west-facing windows, older single-pane glass, little insulation or high ceilings. About 4,000 BTU is needed for a 200-square-foot master bedroom with standard 8-foot ceilings. A 400-square-foot living room with a vaulted ceiling might need 9,600 BTU or more.
Keep ducts short: prioritize rooms that sit within one structural bay or a small group around the air handler location. Each supply run should stay within 15 feet to maintain enough airflow and avoid excess static pressure losses.
Avoid oversizing: an oversized system short-cycles, fails to dehumidify properly and costs more upfront. If your load calculation falls between two available head sizes, choose the smaller one. The inverter compressor will adjust up to handle occasional peak loads.
Worked example: a 1,125-square-foot, three-bedroom home with standard insulation. Zone 1: master bedroom and bath (300 sq ft, 6,000 BTU). Zone 2: two kids' rooms combined (350 sq ft, 7,000 BTU). Zone 3: open kitchen and living room (475 sq ft, 9,500 BTU). Total indoor load: 22,500 BTU. Because load diversity means all zones will not run at peak simultaneously, Zone Air's 27,000 BTU outdoor condenser paired with three 9,500 BTU concealed indoor units (28,500 BTU connected) covers this layout.

Planning Indoor Unit Placement and Short Duct Runs

The success of a ducted mini split install depends on careful indoor unit placement before any holes are cut. Concealed systems need careful planning for ductwork layout, and mistakes in this phase are costly to fix later.

Air handler location: position the indoor unit on a service platform in an attic, above a hallway in a drop ceiling, or inside a utility soffit. Leave at least 18 to 24 inches of clearance around the unit for filter access and coil inspection.
Return air design: install a return air grille (usually 20 x 20 inches) connected to the unit by an insulated return duct. The return path should be kept as straight and short as possible. A hallway ceiling between bedrooms is a common location. A rear or bottom return is accepted by Zone Air units, which helps in tight ceiling bays.
Supply ducts: attach a small supply plenum to the air handler's discharge, then run 2 to 3 short insulated branches to ceiling registers in each room. Each supply run should be kept within 15 feet. Minimize 90-degree turns. Each turn adds about 5 to 10 feet of equivalent duct length in pressure drop.
Drop ceiling considerations: if the install is in a finished basement or commercial space with a grid ceiling, verify that the cavity above the tiles has room for the unit's 7 7/8-inch height plus hangers and duct connections, and plan a removable access panel for servicing.
Example layout: an air handler mounted above a central hallway ceiling sends air to three adjacent bedrooms. Two 6-inch supply branches run left and right into the outer bedrooms (each 10 feet long), and one branch drops straight down into the hallway bedroom (6 feet long). The return grille sits in the hallway ceiling directly below the unit. Total duct design stays compact, and every branch falls within the 15-foot limit.

Proper duct sizing and sealing prevent noise and inadequate airflow. Use mastic sealant or foil-backed tape at all joints. Standard cloth duct tape fails within a few years.

DIY Installation Overview for Homeowners

If you have moderate carpentry skills, you can handle mounting, ductwork and line set runs. Electrical and refrigerant work may fall under restrictions that vary by area. Compliance with local building codes is necessary for installation of these systems.

Typical tasks for you: building or strengthening a platform, hanging the indoor unit, cutting vent openings, installing short ducts, running line sets through walls or rim joists, and sealing penetrations. Installation involves mounting the indoor unit in the ceiling and running ductwork to each room's register.
Pre-charged line sets: DIY-ready systems use a pre-charged line set with quick-connect fittings. You do not need a vacuum pump, refrigerant gauges or brazing equipment. From factory to start, the refrigerant circuit stays sealed.
Electrical work: a 208-230V dedicated circuit to the outdoor unit typically requires a licensed electrician and a permit. This includes the breaker, disconnect switch and grounding per the National Electrical Code.
EPA certification: EPA Section 608 certification is needed for handling refrigerants in HVAC systems. Pre-charged line sets avoid this requirement because you never open the sealed circuit. If you cut, braze or recharge refrigerant lines, you need certification.
Complexity: concealed duct systems are more complex to install than wall units. Expect extra time compared to a wall mount, mostly from ductwork fabrication and runs. If you are unsure about static pressure measurement or code compliance, hiring an HVAC contractor for a commissioning visit is a practical middle ground. During your install, Zone Air also offers live phone tech support (8AM–6PM MT).

Step-by-Step High-Level DIY Install Sequence

This sequence is a bird's-eye overview. It does not replace the manufacturer's installation manual or local code requirements.

Step 1: Site survey and planning. Confirm attic or drop ceiling access. You'll want to choose the air handler location, draw duct routes and register positions, and verify a drainage path for condensate. You'll want to measure the line set route from indoor to outdoor unit and order the correct length.

Step 2: Mount the indoor unit. Build a support platform from lumber or metal channel. Hang the indoor air handler with vibration-isolating brackets. You'll want to pitch the unit slightly (1 to 2 degrees) toward the condensate drain outlet. Confirm clearance for filter removal and coil access.

Step 3: Rough-in ducts. Attach the supply plenum to the air handler's discharge opening. Run short insulated branch ducts to each ceiling register and secure with clamps and mastic sealant. Connect an adequately sized return duct and mount the return air grille in the hallway ceiling.

Step 4: Route line sets and control wiring. Drill a wall sleeve through the exterior wall or rim joist. Keep refrigerant lines as short and direct as possible. Protect tubing where it passes through framing with grommets or foam insulation. Secure the line set to the exterior wall using a line-hide cover or channel.

Step 5: Set the outdoor unit. Pour or place a level concrete pad or composite pad at least 3 inches above grade. Maintain manufacturer-specified clearances (often 12 to 24 inches on sides, 24 to 48 inches in front). Connect line sets and tighten each fitting to the manufacturer's specified torque with a torque wrench.

Step 6: Electrical tie-in and startup. A licensed electrician connects the 230V feed to the outdoor unit's disconnect and breaker panel. Open the service valves to release refrigerant into the line sets, then leak-check every connection with soapy water or an electronic detector. Power on the system, run each zone individually and verify airflow and temperature split at each supply vent.

Choosing Line Sets, Accessories and Controls

Picking compatible line sets and accessories before installation day prevents delays once holes are cut and equipment is hung.

Line set length: every Zone Air concealed system sold here comes with a 16-foot pre-charged line set for each zone, so there's nothing extra to buy for a typical run. If a zone needs a longer run, a 25-foot pre-charged line set kit is available. Keep each run within the manufacturer's minimum and maximum.
Routing and hiding: wall sleeves, line-hide covers and termination fittings protect and hide refrigerant piping on the building exterior. These are cosmetic but also guard against UV damage to insulation.
Condensate management: every Zone Air Thin-Air unit has a built-in condensate pump, which helps when gravity drainage is not possible. If you do drain by gravity, route the drain line to a floor drain or exterior discharge point with a P-trap.
Thermostats and controls: Zone Air concealed systems come with wireless or wired control, and Wi-Fi control is available for scheduling and remote monitoring. Each zone operates independently from its own control point.
Accessories: surge guards for the outdoor unit, vibration isolation pads, line set insulation tape for exposed sections, and register boots at each ceiling opening should be specifically designed for HVAC or mini split use. You should budget $50 to $150 for these items.

Maintenance, Filter Access and Long-Term Reliability

Even though the system is hidden, it still needs regular attention to maintain airflow and efficiency.

Filter access: size and position the return air grille so you can remove and clean or replace the filter from the hallway or room below. There is no need to climb into the attic for routine filter changes. From the front of the unit or through the return grille, Zone Air's washable filters are accessible. Clean or replace filters every one to three months depending on usage and air quality.
Routine tasks: check supply vents for dust buildup, confirm that condensate drains freely during cooling season, and visually inspect exposed line sets for insulation damage or signs of oil staining that could show a leak.
Professional service: hire a qualified technician every one to two years to verify refrigerant charge, check electrical connections and measure static pressure across the air handler.
Longevity: with proper maintenance, a ducted mini split often lasts 12 to 20 years. Concealed indoor units are protected from accidental hits and pet damage that wall mounted units sometimes suffer. Zone Air covers its concealed systems with a 5-year parts warranty and 7-year compressor warranty, and installing the system yourself does not void that coverage. Every Zone Air system also gets final assembly, testing and inspection in the USA from globally-sourced components.

For well over a decade without major work, a well-installed, well-maintained ducted mini split can quietly serve the home.

Frequently Asked Questions About Concealed Duct Multi Zone Mini Splits

What is the difference between a concealed duct mini split and a ducted mini split?

They are the same product category with different naming conventions. "Concealed duct," "slim duct," and "ducted minisplit" all refer to an indoor air handler that installs out of sight above a ceiling and distributes air through short duct branches.

Is there a DIY concealed duct mini split?

Yes. As of October 2026, Zone Air's Thin-Air line is the only DIY concealed ducted mini split system on the market. It comes in 9,500 and 11,000 BTU indoor units, as single-zone systems or as 2- and 3-zone systems on one outdoor condenser.

Can one concealed air handler serve multiple rooms?

Yes. A single Zone Air concealed unit can supply 2 to 3 rooms through short branch ducts, provided each supply run stays within 15 feet and the total BTU load of those rooms matches the unit's capacity. Rooms on the same unit share one temperature setting.

How is this different from central air?

Central air systems use a large furnace or air handler with trunk-and-branch sheet-metal ductwork running throughout the house. A concealed duct mini split uses a small air handler with short duct runs serving a specific zone. The result is less duct leakage, independent zone control and higher efficiency. Central duct networks often run long trunk lines through the whole house. Concealed mini split branches stay within 15 feet.

Is a DIY concealed duct install cheaper than hiring it out?

Here, Zone Air's dual-zone concealed systems are $4,499.99 and the three-zone systems are $5,499.99, and both include a 16-foot pre-charged line set per zone. Professional installation for a comparable ducted system can add several thousand dollars in labor. DIY eliminates most of that labor cost, though you will likely still pay an electrician $200 to $500 for the 230V circuit. The trade-off is a more complex install than a simple wall mounted DIY mini split.

What if my home has no attic or a concrete slab ceiling?

Concealed duct systems need an overhead cavity deep enough for the unit (7 7/8 inches tall on Zone Air's Thin-Air) plus its hangers and duct connections. If your structure lacks attic access or has a solid slab above, consider wall mounted units or ceiling cassettes. With Zone Air, these still connect to the same multi zone system and the same outdoor condenser.

How quiet are concealed duct systems?

Zone Air's concealed units run at 39 dB in quiet mode and 43 dB on turbo, measured at the air handler. At the supply vent in the room, perceived noise is often lower because the ductwork acts as a sound buffer.

Do I need permits?

In most jurisdictions, yes. Electrical work requires a permit and inspection. Some localities also require mechanical permits for HVAC system installation, even when using pre-charged line sets. Check with your local building department before starting.

Is a DIY Concealed Duct Multi Zone Mini Split Right for You?

This type of project suits you if you are hands-on, doing new construction or doing a major remodel where service cavities are already part of the plan. It delivers what a standard wall mounted mini split cannot: invisible equipment in every zone, with independent temperature control and high efficiency.

Good fit: you have an accessible attic or drop ceiling, moderate carpentry skills, willingness to follow installation manuals and local codes, and a strong preference for a completely hidden HVAC system in finished spaces.
Red flags: no overhead space for duct runs, discomfort working in tight attics, limited time for a project that takes a full weekend, or a complex multi-story layout where professional duct design is the right approach.
Before you shop: document each room's square footage, draw a rough layout showing where the air handler could sit, note ceiling height in each zone, and decide whether aesthetics or cost is the higher priority.
Next step: use a mini split sizing calculator, call Zone Air's tech support with your layout, or review product-specific install guides. The Air Conditioning Contractors of America's Manual J is a good starting point for load calculations.

With the right planning, a DIY concealed duct multi zone mini split install delivers quiet, efficient and virtually invisible comfort for years.
