Concealed Duct Mini Split Guide: Best DIY Systems for 2026

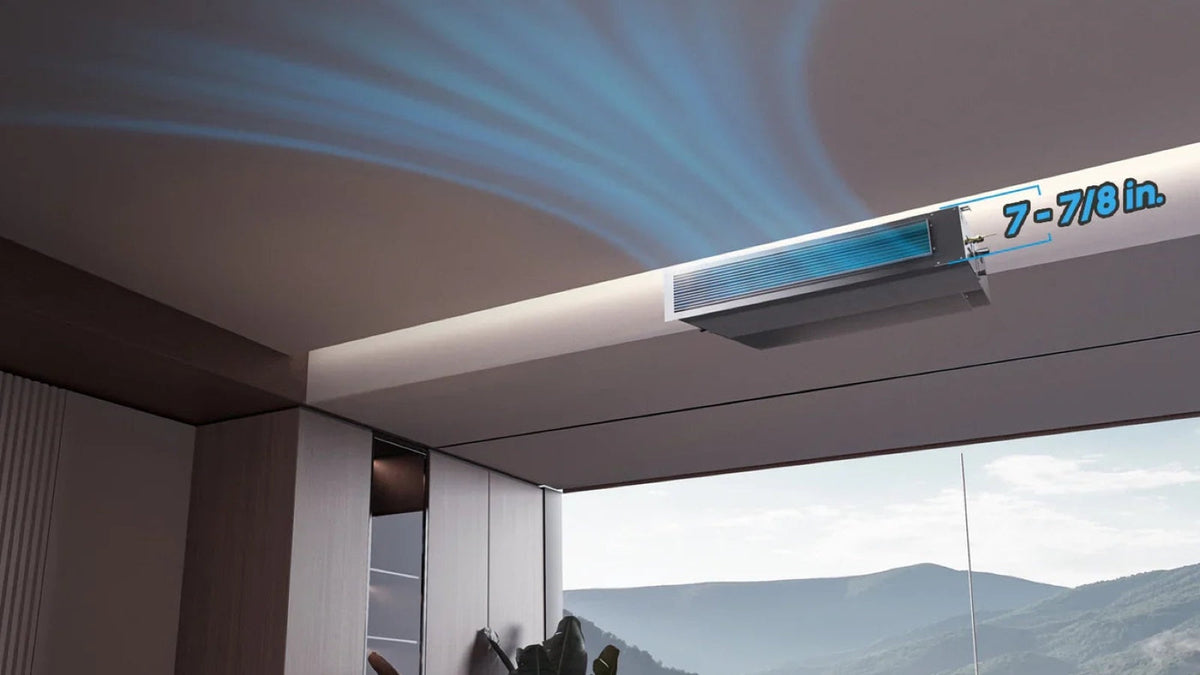

Zone Air Thin-Air hidden ducted mini split air handler, 7-7/8 inches tall, set into a ceiling soffit

If you want the comfort of central air without having to open up every ceiling in your house, a concealed duct mini split is the move. These systems have the indoor air handler hidden above the ceiling and deliver conditioned air through small, plain vents, so you get the invisible look of central air with the energy efficiency of a modern heat pump. This guide covers how concealed ducted mini splits work, which 2026 systems are easiest to install yourself, and how to plan a successful DIY project.

Best DIY Concealed Duct Mini Splits for 2026

For homeowners who are shopping in 2026, the easiest concealed duct mini split to install is a system that comes pre-charged with quick-connect fittings. Zone Air's Thin-Air concealed-duct series is, as of October 2026, the only DIY concealed ducted mini split system on the market. It has a hidden indoor air handler that goes together with factory-sealed, pre-charged R-454B line sets, so you get to skip the flaring, brazing and vacuum pump work that used to need an EPA-certified HVAC technician. Zone Air's FAQ says that a concealed-duct install takes about 6–8 hours.

Here's a look at how the Thin-Air line can cover the main jobs:

Prices are MiniSplits on Sale prices as of October 2026, and each system comes with a pre-charged quick-connect line set for every indoor unit. You can compare them all on our concealed ducted collection.

Why Zone Air Stands Out for DIY Concealed Duct

  • Easy DIY refrigerant connections. Every Thin-Air system connects with factory-sealed, pre-charged R-454B line sets (zone-air.com/linesets/). When you install it per the instructions, there is no field flaring, no vacuum pump, no gauge set and no refrigerant handling. Zone Air also cuts pre-charged line sets to the exact length that you measure, any whole foot from 5 to 75 ft, as one continuous run with no field coupler. MRCOOL, by comparison, sends fixed 11.5, 16, 25, 35 and 50 ft sets and joins two with a coupler past 50 ft.
  • A fully concealed indoor unit. The air handler is above the ceiling or in an enclosed space such as a soffit or closet, and only the supply and return grilles show in the room. MRCOOL's DIY line has wall-mount and OuttaSight cassette heads plus a full-size Hybrid Air Handler, a central furnace-style unit, but no concealed room unit.
  • Ultra-slim. Both Thin-Air sizes are 7⅞ inches tall (27½ × 19¼ in footprint; as listed on zone-air.com), so they fit some shallow ceiling cavities and soffits where a standard air handler never would. They take a rear or bottom return and have adjustable static pressure (0.1–0.4 in. WG).
  • Flexible multi-zone. Zone Air's 27,000 BTU multi-zone outdoor unit runs two or three indoor units of any style. As of October 2026, Zone Air is the only DIY mini split that lets you mix concealed duct, wall-mount and ceiling cassette units on one outdoor unit.
  • Cold-weather heating to −13°F. Every Thin-Air model is rated for heating down to −13°F (Zone Air 12K Thin-Air), and to cool in outdoor temperatures up to 131°F.
  • A DIY-friendly warranty. Zone Air covers parts for 5 years and the compressor for 7, with no registration deadline and homeowner installation does not void it when you follow the included instructions, applicable codes and required permits.

A few more things set Thin-Air apart: a built-in condensate pump in every unit, the option of a fresh-air intake or a link to existing ductwork, and final assembly, testing, and inspection in the USA, from globally-sourced components.

What Is a Concealed Duct Mini Split?

A concealed duct mini split has one outdoor unit (the heat pump condenser) together with a slim indoor air handler that fits inside a ceiling cavity, soffit or closet. Short ducts carry air to a few supply grilles and at least one return grille. Only those grilles are visible in the room, which makes the system nearly invisible.

Here's how that lines up with two other common setups:

  • Wall-mounted ductless mini splits put a visible "head" on the wall in each room. Every room shows equipment.
  • Full central systems rely on a large air handler connected to whole-house duct systems running through attics, basements or walls. That means major renovation in homes that don't already have ductwork.

A concealed air handler can serve one room or 2–3 adjacent rooms through short duct branches instead of long main lines. Thin-Air lets you have up to 15 feet per supply run, and short runs keep airflow strong and losses low compared with a full central duct network.

Why Choose Concealed Duct Over Wall-Mounted Units

Aesthetics drive most of this decision. People want the energy efficiency and independent temperature control of a mini split without a plastic wall unit ruining their interior design. That matters in bedrooms, living rooms and open-concept spaces.

  • Invisible indoor equipment. Only supply and return grilles show, similar to central air.
  • More even airflow across larger or oddly shaped rooms than a single wall head blowing from one spot.
  • Quiet in the room. The air handler and coil sit above the ceiling, so what you hear is mostly air moving at the grilles. Zone Air lists Thin-Air at 39 dB in quiet mode.
  • Better fit for higher-end renovations and for bedrooms where a wall unit would compete with windows or furniture.

Best Uses for Concealed Duct Mini Splits

Placement depends on ceiling or attic access, room layout and your climate control goals. Think about zones rather than individual rooms when you are planning.

  • Bedroom group: Two or three bedrooms under the same attic space, served by one Thin-Air with short duct branches. Rooms fed from one unit share one setting. If each bedroom needs its own thermostat, give each one its own Thin-Air on the multi-zone outdoor unit.
  • Open-plan living/dining/kitchen: A single wall unit would create hot and cold spots across a large floor area. Multiple supply grilles spread the air evenly.
  • Finished basements: Soffits or drop ceilings can hide a 7⅞-inch air handler.
  • Bonus rooms and garage workshop conversions: Visible heads are often unwanted in these spaces, and a concealed unit keeps the look clean.

These systems are especially strong in homes that lack ductwork or have partial, aging duct systems that are expensive to repair. If you can reach joist bays or attic space easily, running ducts and refrigerant lines is simple even for a DIY project.

How a Concealed Duct Mini Split Works

Most concealed duct mini splits sold in 2026 are heat pumps, providing both air conditioning and heating from a single system. The core components:

  • Outdoor condenser: the compressor, fan and heat-exchanger coils. One outdoor unit serves one or more indoor handlers.
  • Indoor concealed air handler: the evaporator coil, blower, filter and condensate drain pan, hidden above the ceiling or in an enclosed space.
  • Refrigerant line set: insulated copper lines connecting indoor and outdoor units.
  • Short duct branches: from the air handler's supply plenum to ceiling or high-wall supply grilles, plus a return grille.

In cooling mode, the indoor coil absorbs heat from room air and the outdoor condenser gets rid of it. In heating mode the refrigerant flow switches and the system pulls heat from outdoor air into the home, even in cold climates. Inverter compressors ramp up or down to match the load rather than cycling on and off.

A single-zone system has one outdoor unit together with one concealed handler and its duct network. With Zone Air's multi-zone outdoor unit, a concealed handler can share the condenser with wall-mounted or ceiling-cassette units, so a hidden bedroom zone and a cassette in the kitchen can run off the same outdoor unit.

Efficiency, Refrigerant and Incentives

  • SEER2 is the seasonal cooling efficiency rating under current U.S. test procedures. Higher is better. The federal minimum for split-system heat pumps is 14.3 SEER2.
  • HSPF2 is seasonal heating efficiency, which matters most when the mini split is your main heat source.
  • Thin-Air single-zone units are rated 19.6 SEER2 (9,500 BTU) and 19 SEER2 (11,000 BTU), and the 3-zone concealed system is rated 22 SEER2. Reaching 24 SEER2 (zone-air.com/products/zone-12k-btu-230v-mini-split/), Zone Air's 230V wall-mount systems are the highest of the pre-charged quick-connect DIY brands covered here (MRCOOL's best single-zone is 23.6), and those wall heads can share an outdoor unit with Thin-Air.

On refrigerant, R-410A is being phased down, and most new systems use R-32 or R-454B, both lower-GWP options. Zone Air uses R-454B, sealed inside the pre-charged line set, so homeowners never handle raw refrigerant.

The federal 25C heat pump tax credit ended for systems placed in service after December 31, 2025, so in 2026 the money comes from state and utility rebates. Check the DSIRE database and your local utility for current offers.

What Makes a Concealed Duct Install "Easy"

Traditional concealed duct units ship without pre-charged lines. For a standard install, an EPA-certified technician is needed to handle refrigerant, flare the copper, pull a vacuum on the lines and commission the system, and that labor is a big part of what a professional install costs.

A DIY concealed duct mini split removes that step:

  • Pre-charged, quick-connect line sets eliminate field flaring, vacuum pumps and refrigerant handling.
  • A clear manual covers mounting, duct layout and condensate path. You can find the full concealed unit installation and user manual (per zone-air.com) on Zone Air's site.
  • A warranty that does not hurt you for installing the system yourself.

You will still do some carpentry. The Thin-Air air handler is 33 lb. The manual has two people (or a lift) raise it into place. Most people hire a licensed electrician for the dedicated circuit.

Planning Your Project

Planning is the most important phase.

  1. Group target rooms into zones. Upstairs bedrooms, main living area or a master suite addition.
  2. Measure square footage, ceiling heights and insulation quality. Note window sizes and sun-exposed walls. These feed your load calculation. Our DIY mini split buying guide has a sizing table to start from.
  3. Choose air handler locations in ceiling cavities or soffits with enough clearance, and plan an access panel for filter changes and service.

Routing tips:

  • Keep duct runs short and straight from the air handler to each supply grille, 15 feet or less per run.
  • Find a clear path for the refrigerant lines from the outdoor unit to the air handler, without tight turns.
  • Plan the condensate drain. The built-in pump handles spots where the drain can't fall by gravity.

Confirm joist direction and plenum space before you order, and check local building codes, permit requirements and HOA rules before you start.

Sizing BTUs, Rooms and Climate

An oversized unit short-cycles (noisy, inefficient), while a too-small one runs constantly without reaching setpoint.

  • The 9,500 BTU Thin-Air is rated for 300–475 sq ft and the 11,000 BTU for 350–550 sq ft under average conditions.
  • Rooms with 10-foot ceilings or poor insulation need more capacity than square footage alone suggests.
  • Climate matters: a home in Phoenix needs different cooling capacity than one in Minneapolis.

From square footage, window area, insulation, climate zone and occupancy, a Manual J load calculation gives precise BTU needs. When one air handler serves several rooms, add those spaces together, allowing for the fact that they don't all hit peak load at once.

Tools and What Comes in the Box

Tools you'll need: stud finder, level, drill/driver with long bits, a 3-inch hole saw for the line-set penetration, sheet metal snips for duct work, wrenches and a torque wrench for the quick-connect fittings, plus gloves, eye protection and a dust mask for attic work. There's no vacuum pump, gauges or flaring tool.

What comes with a Thin-Air system:

  • Concealed air handler with a built-in condensate pump and a drain pipe assembly
  • Outdoor condenser
  • Pre-charged quick-connect line set for each indoor unit
  • Communication cable between indoor and outdoor units
  • Handheld remote and wired controller kit
  • Installation and user manual

Supplies from the hardware store: four ⅜-inch threaded hanging rods, flex duct, duct collars, supply and return grilles, an electrical disconnect and a pad or wall bracket for the outdoor unit.

Step-by-Step Install Overview

This is a high-level plan, not a substitute for the installation manual.

  1. Hang the air handler in the ceiling bay or soffit on threaded rods, level, with an access panel planned.
  2. Connect the condensate drain with proper slope, or use the built-in pump.
  3. Run the ducts. Attach flexible duct from the supply plenum to each supply grille, keep each run to 15 feet or less, and seal the grilles and return.
  4. Set the outdoor condenser on a pad or wall bracket, with the clearances the manual lists.
  5. Route the pre-charged line set within the manual's bend limits and length limits. Don't crush or kink it.
  6. Make the quick-connect connections, tightening to the specified torque. The sealed refrigerant circuit is never opened.
  7. Wire it. Run the communication cable per the wiring diagram, and have a licensed electrician make the high-voltage connections as required by local code. Every Thin-Air system is 208–230V. A single-zone Thin-Air takes a 15A double-pole breaker and the multi-zone outdoor unit a 30A double-pole breaker.
  8. Test it in cooling and heating mode, check airflow at every grille, and confirm the drain is flowing.

Take photos and notes as you go. They make any future warranty claim simple.

Cold Climates and Year-Round Comfort

Cold-climate heat pumps now heat well below freezing. Every Thin-Air model operates in heating mode down to −13°F, which makes it a real option for many northern U.S. and Canadian homes when it's properly sized. Defrost cycles briefly reduce heat output in freezing weather as the outdoor coil clears frost. That's normal and automatic. In very cold climates or poorly insulated older homes, keep a backup heat source for the coldest nights.

One concealed system gives you cooling, heating and dehumidification without a visible unit in the room.

Maintenance and Warranty

  • Clean the air handler's washable filter every 1–3 months, more often with pets.
  • Check the condensate drain each season.
  • Keep the outdoor unit clear of leaves, snow and debris.
  • Keep receipts, permit papers and install photos. Zone Air's 5-year parts and 7-year compressor warranty has no registration cutoff. Registering just keeps proof of purchase on file.

For refrigerant issues or persistent error codes, call Zone Air's technical support (8 AM–6 PM Mountain Time) rather than opening the sealed system.

Is a DIY Concealed Duct Mini Split Right for You?

It's a good fit if you're comfortable with carpentry and layout work, can get a helper for lifting the air handler, will read the manual carefully, and plan to hire out the high-voltage electrical work. Homes with accessible attic or ceiling cavities and simple joist layouts are the easiest. If your ceilings are hard to reach or your area needs a licensed contractor for mechanical work, bring in help for those parts.

For the right homeowner, a DIY concealed duct mini split delivers central-air-style comfort, lower energy bills and a clean interior look. Start by measuring your spaces, checking your ceiling access and running a load calculation, then pick the Thin-Air system that fits your rooms.
