This Zone Air DIY mini split review covers what you actually get with a Zone Air system, how the pre-charged quick-connect install works, what the warranty does and does not cover, and where it tops or trails MRCOOL's DIY line and the pro-install brands. MiniSplits on Sale carries the full range, so we have the spec sheets, the manuals and the product details right in front of us. We haven't bench-tested the units ourselves. Every number below comes from the published documents of Zone Air or the competing brand, and those are linked in the text.
Zone Air at a glance
- What it is: a ductless mini split heat pump that heats and cools, and it is built so a homeowner can install it. The line sets come pre-charged with R-454B from the factory, and they have quick-connect fittings.
- Sizes: single-zone wall units that come in 9,000, 12,000 and 18,000 BTU. Ceiling cassettes are available in 9,500 and 12,000 BTU. Concealed ducted units are available in 9,500 and 11,000 BTU. Dual-zone and 3-zone systems run on one outdoor unit that is 27,000 BTU.
- Efficiency: the 230V 9K and 12K wall units and wall-mount multi-zone systems are rated at 24 SEER2. For the 115V models, the rating is 23 SEER2. Cassettes are rated at 21 SEER2. Concealed ducted units are rated at 19 to 22 SEER2.
- Heating: it is rated to heat down to −13°F. It can cool in outdoor temperatures up to 131°F.
- Warranty: 5 years parts and 7 years compressor, no registration deadline and a DIY install does not void it (see Zone Air's warranty page).
- Price here: from $1,899.99 for the 9,000 BTU 115V. For dual-zone wall systems, the starting price is $3,499.99 and both line sets are included.
Best for: homeowners who want to install a mini split themselves without a vacuum pump or technician, keep a full warranty and want a choice of wall, ceiling cassette or hidden ducted indoor units.
Look elsewhere if: you might need more than three zones on one outdoor unit, a single-zone unit above 18,000 BTU, or a heat pump rated to heat well below −13°F.
What we like
- A real DIY install. With the line set charged and sealed at the factory, there's no vacuum pump, no gauge set and no EPA 608 certification in the install (see Zone Air's FAQ). You connect the quick-connect fittings, torque them to spec and the refrigerant is never opened to the air.
- High efficiency on 230V. The 12,000 BTU 230V is rated at 24 SEER2, 13.0 EER2 and 10.0 HSPF2 (Region IV), and it leads the other pre-charged quick-connect systems on SEER2 (MRCOOL's best DIY single-zone is 23.6).
- Line sets that fit the job. A single-zone wall unit comes with a line set that has a charge in it and is 16 ft long. Of the brands compared here, Zone Air is the only one that will cut your pre-charged line set to the exact length you measure, any whole foot from 5 to 75 ft (as of October 2026), and its 25, 33, 50 and 75 ft sets are one continuous run with no joint. We stock 25 ft kits for 9K/12K and for 18K here.
- Three indoor unit styles on one outdoor unit. As of October 2026 Zone Air is the only DIY mini split that lets you mix wall-mount, ceiling cassette and concealed ducted units on one outdoor unit. You get one outdoor unit, the right indoor unit for every room. You can install it yourself.
- A DIY concealed ducted option. At 7⅞ in tall, the Thin-Air concealed ducted unit has a built-in condensate pump and can feed two or three rooms from one hidden unit. As of October 2026 it is the only DIY concealed ducted mini split system.
- A 4-way ceiling cassette. From a 22½ in square chassis that fits a standard 24 x 24 ceiling grid, the ceiling cassette sends air in four directions.
- Warranty that lets you do DIY. 5 years parts and 7 years compressor, no registration deadline and installing it yourself does not void coverage.
- 115V plug-in option. Running on a dedicated 15A circuit, the 9K and 12K 115V models can plug into a dedicated GFCI outlet where local code lets you, with Zone Air's optional cord kit (zone-air.com/products/115v-3-prong-power-cord-pigtail/).
- Support and documentation. Live technical support runs 8 AM to 6 PM Mountain time, and Zone Air puts out a spec sheet, manual and install guide for every unit (source: zone-air.com). The units get final assembly, testing, and inspection in the USA from globally-sourced components.
What could be better
- The 115V models are less efficient. At 23 SEER2 they trail the 230V units, and MRCOOL's 115V units are rated a little higher at 23.5 to 23.6.
- Cold-climate rating is good, not class-leading. The floor is −13°F, which is the same as MRCOOL's standard DIY 5th Gen. MRCOOL's higher-tier DIY models and the pro-install cold-climate lines from Mitsubishi and Fujitsu are rated lower. When it gets below about −13°F you should plan to have a backup heat source.
- Heating efficiency. A 10.0 HSPF2 on the 12K 230V is solid, but MRCOOL's 12K 115V lists 10.2, and premium pro-install units go well above that.
- Number of zones. Multi-zone tops out at three indoor units on one outdoor unit. MRCOOL's larger DIY condensers run up to six.
- No single-zone above 18,000 BTU.
- Cassette and concealed units are less efficient than the wall units, at 21 and 19 to 22 SEER2.
- Price against budget flare systems. Pioneer and Senville sell 12K units for less, though they need a vacuum-pump install and their warranty terms hit you for a DIY install.
Zone Air models and specs
| Model | Voltage | SEER2 | Coverage | Price here |
|---|---|---|---|---|
| 9,000 BTU wall mount | 115V | 23 | Up to 450 sq ft | $1,899.99 |
| 12,000 BTU wall mount | 115V | 23 | Up to 600 sq ft | $1,999.99 |
| 9,000 BTU wall mount | 230V | 24 | Up to 450 sq ft | $1,949.99 |
| 12,000 BTU wall mount | 230V | 24 | Up to 600 sq ft | $2,049.99 |
| 18,000 BTU wall mount | 230V | 23 | Up to 900 sq ft | $2,599.99 |
| 9,500 BTU ceiling cassette | 230V | 21 | Up to 475 sq ft | $2,699.99 |
| 12,000 BTU ceiling cassette | 230V | 21 | Up to 600 sq ft | $2,799.99 |
| 9,500 BTU concealed ducted | 230V | 19.6 | Up to 475 sq ft | $2,299.99 |
| 11,000 BTU concealed ducted | 230V | 19 | Up to 550 sq ft | $2,699.99 |
| Dual zone wall, 18K to 30K | 230V | 24 | 900 to 1,500 sq ft | $3,499.99 to $3,999.99 |
| 3 zone wall, 27K to 36K | 230V | 24 | 1,350 to 1,800 sq ft | $4,199.99 |
Prices are MiniSplits on Sale prices as of October 2026. Every 2-zone and 3-zone system uses the same outdoor unit that is 27,000 BTU. The BTU in the name is the total indoor capacity.
What it takes to install

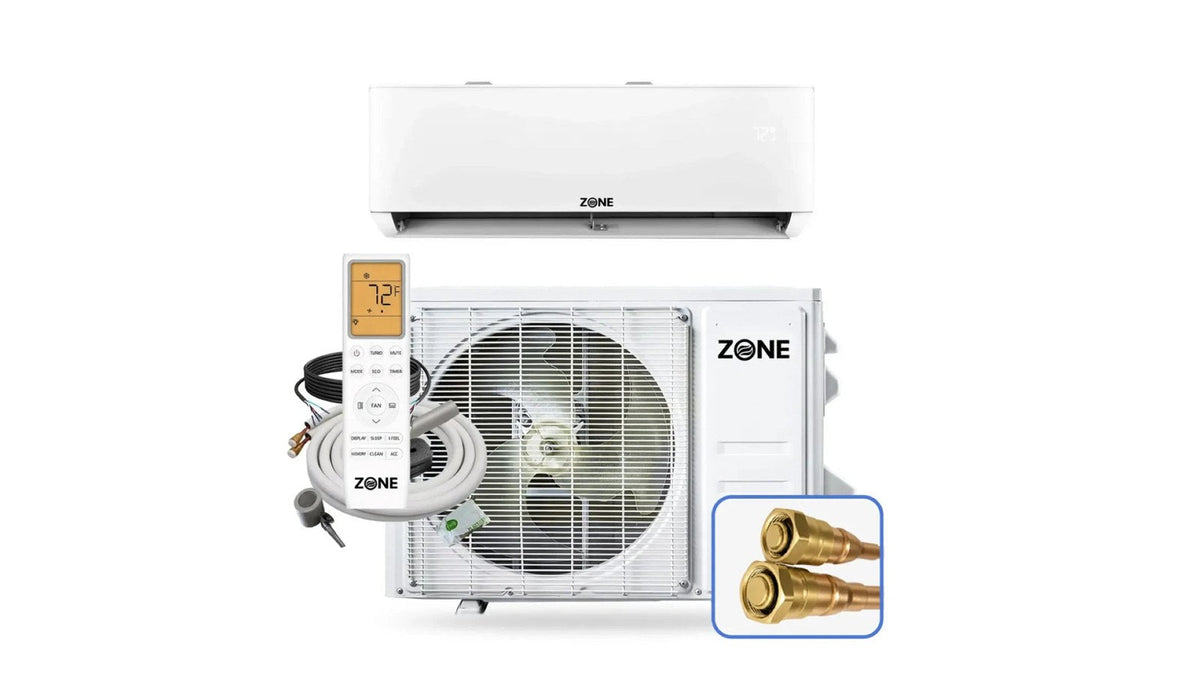

A Zone Air wall system arrives with the indoor unit, the outdoor unit, a pre-charged line set, a communication cable, a drain hose and tape, a wall bracket and a wireless remote. The install is the same four stages as any quick-connect DIY system: you mount the indoor unit on its bracket and drill a 3 in hole through the wall, you set the outdoor unit on a pad or wall bracket, you route the line set, cable and drain through the wall and connect the quick-connect fittings, then you power it from a dedicated circuit at the outdoor unit.
The tools you need are a drill with a 3 in hole saw, a level, wrenches and a torque wrench. You don't need a vacuum pump, you don't need gauges, you don't need a refrigerant tank and you don't need a flaring tool. Zone Air's FAQ estimates 4 to 6 hours for two people on a first single-zone wall install and about 3 hours for someone who has done one. Ceiling cassettes take 2 to 3 hours in a drop ceiling and 4 to 6 in drywall, and concealed ducted units take 6 to 8 hours. You might want to hire an electrician for the circuit and permit.
When it comes to the fittings, the torque is the one step to take seriously. They seal once, on the number in the manual, so it's better to use a torque wrench rather than going by feel. Our pre-charged DIY mini split installation guide walks through every step.
Warranty and support
Zone Air's warranty covers parts for 5 years, the compressor for 7 years and the remote for 1 year, for the original buyer with proof of purchase. There's no registration deadline, and a homeowner install does not void coverage. Like most mini split warranties it covers parts only, not labor, shipping or refrigerant and moving the system voids it.
For comparison, MRCOOL's DIY 5th Gen has the same 5-year parts and 7-year compressor main term "with no registration required", so on warranty the two DIY brands are even. Against the flare brands, the difference shows up: Senville states "DIY installation will void your warranty coverage", Pioneer covers parts for 1 year unless the unit is registered within one week of a proper install, and Mitsubishi's coverage needs a licensed HVAC contractor install.
What owners say
Zone Air publishes about 4.8 out of 5 across more than 150 verified customer reviews (zone-air.com). The topics that come up most are how easy the install was for a first-timer, quiet operation (the 12K wall unit is listed at 30 dB(A) on its low setting) and help from support. The lower-rated reviews exist too, so read a few of the 3- and 4-star ones before you decide.
Zone Air vs MRCOOL DIY
MRCOOL's DIY 5th Gen is the nearest match: both are true DIY systems with pre-charged quick-connect line sets, both use R-454B and both carry 5/7 warranties without a registration gate.
| Zone Air | MRCOOL DIY 5th Gen | |
|---|---|---|
| Best single-zone SEER2 | 24 (230V 9K/12K) | 23.6 (9K 115V) |
| 115V SEER2 | 23 | 23.5 to 23.6 |
| Heating floor | −13°F | About −13°F (Easy Pro 5°F; higher tiers lower) |
| Cooling up to | 131°F | 122°F |
| Line sets | 16 ft included; custom 5 to 75 ft; 25 to 75 ft single runs | 11.5, 16, 25, 35, 50 ft; coupler to 75 ft |
| 115V wiring | Dedicated 15A, optional plug-in cord kit | Hardwired |
| Indoor styles | Wall, 4-way cassette, concealed ducted | Wall, one-way OuttaSight cassette, Hybrid Air Handler (central ducted) |
| Max zones per outdoor unit | 3 | 6 |
| Warranty | 5 yr parts / 7 yr compressor | 5 yr parts / 7 yr compressor |
MRCOOL figures are from its catalog and warranty. In short: pick Zone Air for 230V efficiency, for line set lengths, for the cassette and concealed ducted options and for the hot-weather cooling range. Pick MRCOOL if you want more zones on one condenser, larger single-zone sizes or a higher-tier cold-climate model. Our MRCOOL DIY alternatives guide has more detail.
Zone Air vs pro-install brands
Mitsubishi, Fujitsu and Daikin make excellent ductless systems with higher efficiency and deeper cold ratings at the top of their ranges. They are standard flare systems that need evacuation by a technician, and their longest warranties depend on a certified contractor, so the comparison is really about installed cost. With labor commonly $1,500 to $3,500 per zone, a Zone Air system that you install yourself usually comes in well under a contractor-installed premium unit. If you're hiring a pro anyway and you live somewhere very cold, it's worth pricing a premium cold-climate unit.
Frequently asked questions
Is Zone Air a good mini split brand?
For a DIY install, yes. It's a true pre-charged quick-connect system with 24 SEER2 on its 230V wall units, −13°F heating and a warranty that lets a homeowner install it. Since early 2022 the company has focused on DIY HVAC. It changed its name from Zone to Zone Air in October 2024, when it released its latest generation.
Can I install a Zone Air mini split myself without voiding the warranty?
Yes. There is no licensed-installer requirement and no registration deadline in the warranty. Any later work that opens the refrigerant circuit, such as a repair, needs a certified technician.
How cold can Zone Air heat?
Zone Air systems are rated to heat down to −13°F. The 12K 230V lists a COP2 of 2.1 at 5°F. In climates that regularly go below −13°F, plan a backup heat source.
Does Zone Air need a vacuum pump?
No. The line sets are charged and sealed at the factory, so there is nothing you need to evacuate.
Where is Zone Air made?
Zone Air units go through final assembly, testing, and inspection in the USA, from globally-sourced components.
Where can I buy Zone Air?
Zone Air sells direct at zone-air.com and through dealers. MiniSplits on Sale carries the full range: single-zone, multi-zone, ceiling cassette, concealed ducted and accessories.
Verdict
Zone Air is one of the two true DIY mini split brands worth keeping on your list in 2026, and for most single rooms and two- or three-room homes it's the one we would buy. The strong points are the ones that matter on a self-install: a sealed pre-charged line set that fits your run, 24 SEER2 on 230V, a warranty that lets you do a DIY install, and wall, cassette or concealed ducted indoor units on one outdoor unit. Its limits are the zone count, the lack of larger single-zone sizes and a cold-climate rating that matches rather than tops MRCOOL's standard DIY line.
For a typical room, start with the Zone Air 12,000 BTU 230V, or browse the wall-mount and multi-zone pages. For a side-by-side with every major brand, read our best DIY mini split systems comparison and our best precharged DIY mini split picks.
Related guides
- Easiest DIY mini split install
- DIY mini split buying guide
- TOSOT vs MRCOOL DIY vs Zone Air
- Best DIY multi-zone mini split systems
- DIY ceiling cassette mini split easy install
Specifications and warranty terms are manufacturer-published as of October 2026 and subject to change. Verify before you buy. MiniSplits on Sale is a Zone Air® dealer and is not affiliated with or endorsed by any other brand named here. MRCOOL®, Pioneer®, Senville®, Mitsubishi Electric®, Fujitsu® and Daikin® are trademarks of their owners.
Related reading: our best DIY mini split heat pump for heating guide (cold-climate picks).
