The best precharged DIY mini split is one where the line set, not just the outdoor unit, comes charged and sealed from the factory so you can connect it yourself without a vacuum pump and still keep the warranty. That sounds simple enough, but the word "precharged" is printed on almost every mini split box sold today, and that includes plenty of boxes for systems that still need a technician with a vacuum pump to finish the job. This guide can explain how to spot the difference in a product listing, then it gives our picks by room size, voltage and number of zones, with a premium pro-install option thrown in for comparison.
If you want a step-by-step install guide instead, see our pre-charged DIY mini split installation guide for 12,000 and 18,000 BTU units. If you want a list of every brand that sells pre-charged quick-connect systems, you can see our page about pre-charged quick connect mini split brands.
Quick picks
| Pick | Model | Why | Price here |
|---|---|---|---|
| Best overall | Zone Air 12,000 BTU 230V wall mount | 24 SEER2, −13°F heating, 16 ft pre-charged line set in the box | $2,049.99 |
| Best on a 115V circuit | Zone Air 12,000 BTU 115V wall mount | Dedicated 15A circuit, optional plug-in cord kit | $1,999.99 |
| Best for a small room | Zone Air 9,000 BTU 230V wall mount | 24 SEER2, up to 450 sq ft | $1,949.99 |
| Best for a large open room | Zone Air 18,000 BTU 230V wall mount | Up to 900 sq ft on one indoor unit | $2,599.99 |
| Best for two rooms | Zone Air dual zone 24,000 BTU (12K+12K) | One outdoor unit, two pre-charged line sets included | $3,499.99 |
| Best for three rooms | Zone Air 3 zone 36,000 BTU (12K+12K+12K) | Three wall heads, three pre-charged line sets included | $4,199.99 |
| Best ceiling-mounted | Zone Air 12,000 BTU ceiling cassette | 4-way air distribution from a flush ceiling panel | $2,799.99 |
| Best hidden install | Zone Air 9,500 BTU concealed ducted | 7⅞ in tall unit above the ceiling, grilles only | $2,299.99 |
Prices are the prices at MiniSplits on Sale as of October 2026.
What "precharged" really means
A mini split has three parts: there is the outdoor condenser, the indoor air handler and the copper line set that runs between them. On virtually every mini split sold today the outdoor unit is precharged, which means it leaves the factory holding the refrigerant for the system. On a standard system that is where the precharge stops. The indoor coil and the line set arrive empty, so you would have to flare the copper, connect it, pressure-test with nitrogen, pull a vacuum down to a few hundred microns and then open the valves. That is work for a technician with a few hundred dollars of tools, and opening a refrigerant circuit is regulated under EPA Section 608.

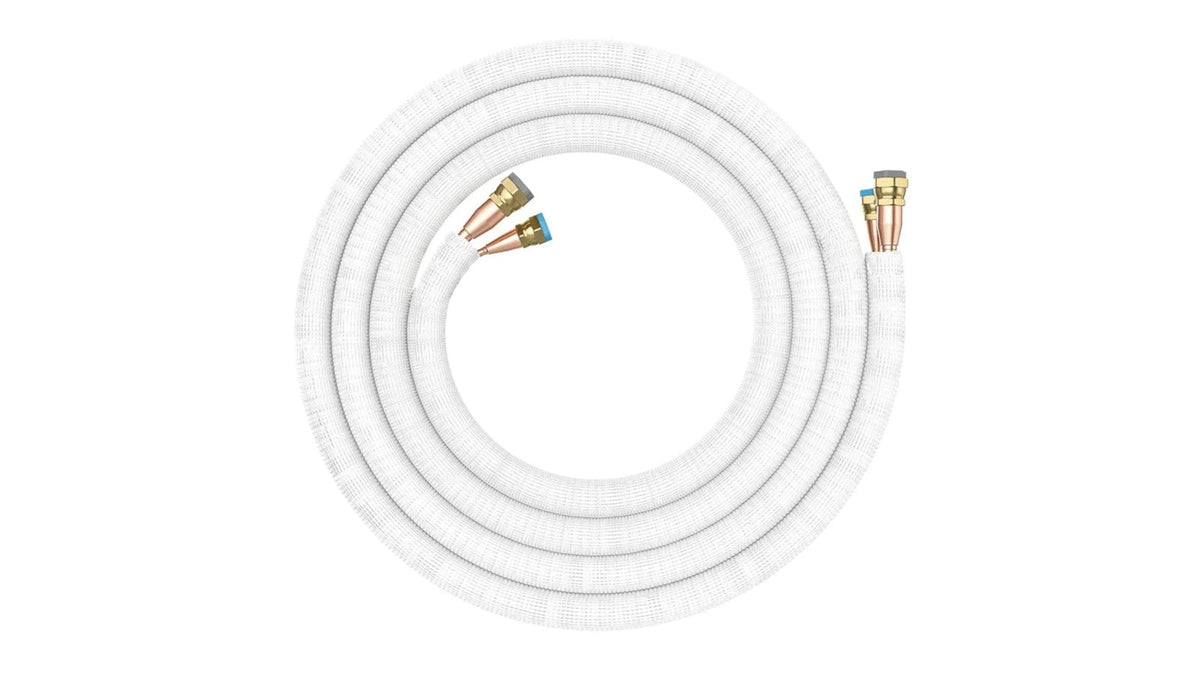

A precharged DIY mini split can go one step further because the line set is also charged and sealed, and it has quick-connect fittings on each end. You will thread the fittings onto the indoor and outdoor units and torque them. The refrigerant will never open to the air. There is nothing to evacuate. On Zone Air systems there is no vacuum pump, no gauge set and no EPA 608 certification in the install.
How to tell from a product listing
Before you buy any mini split sold as precharged, you should look for these five things in the listing or manual:
- The line set is described as pre-charged, not just the outdoor unit. "Pre-charged condenser" or "pre-charged for up to 25 ft" on a flare system means the outdoor unit holds enough refrigerant for that length of empty line, not that the lines themselves are charged.
- Quick-connect or self-sealing fittings, not flare nuts. Flare fittings mean a vacuum step.
- No vacuum pump in the install steps. No matter what the box says, if the manual says to evacuate the lines, it is not a DIY system.
- Warranty language about who may install it. Zone Air's warranty is 5 years parts and 7 years compressor with no registration deadline, and a self-install does not void it. Senville, by contrast, says "DIY installation will void your warranty coverage", and Pioneer covers parts for 1 year unless the unit is registered within one week of a proper install.
- Line set lengths available. A precharged line set cannot be cut in the field, so the lengths you can buy are what matter. More on that below.
Precharged (standard) vs precharged DIY
| Standard precharged mini split | Precharged DIY mini split | |
|---|---|---|
| Refrigerant in the outdoor unit | Charged at the factory | Charged at the factory |
| Line set | Empty copper, flared and connected on site | Charged and sealed, quick-connect fittings |
| Vacuum pump and micron gauge | Required | Not used |
| Nitrogen pressure test | Required | Not used |
| EPA 608 certification | Needed to open the refrigerant circuit | Not needed for the install |
| Who usually installs it | HVAC technician | Homeowner, often in a day |
Our picks in detail
Best overall (Zone Air 12,000 BTU 230V)
With the Zone Air 12,000 BTU 230V, you get a unit rated at 24 SEER2 and 10.0 HSPF2 (Region IV), heats down to −13°F with a published COP2 of 2.1 at 5°F, and cools in outdoor temperatures up to 131°F. It covers about 400 to 600 sq ft. It runs on a 15A double-pole breaker, and it comes with a 16 ft pre-charged line set, plus the communication cable, the drain hose and the mounting hardware. At 30 dB(A), the indoor sound is listed on the setting that is the most quiet.
Among the pre-charged quick-connect systems we compare, 24 SEER2 on 230V is the highest rating (MRCOOL's best DIY single-zone is 23.6 SEER2). It is our pick for a bedroom, living room or addition where a 230V circuit is available or easy to add.
Best on a 115V circuit (Zone Air 12,000 BTU 115V)
If your panel has no room for a double-pole breaker, the 12,000 BTU 115V runs on a dedicated 15A circuit. Zone Air's optional 3-prong cord kit (Zone Air 115V Cord Kit) lets it plug into a dedicated GFCI outlet where local electrical code lets you, never into an extension cord. The downside is efficiency: the 115V models are at 23 SEER2, and MRCOOL's hardwired 115V units are rated slightly higher at 23.5 to 23.6. Our guide to the best DIY mini split that plugs into a standard outlet looks at the 115V options.
Best multi-zone for two or three rooms
Every Zone Air dual-zone and 3-zone system uses the same 27,000 BTU outdoor unit, and each room gets its own independent thermostat and its own Wi-Fi control. With the wall-mount versions at 24 SEER2, the dual zone systems come with both pre-charged line sets included. They start at $3,499.99. As of October 2026, Zone Air is the only DIY mini split that lets you mix wall-mount, ceiling cassette and concealed ducted units on one outdoor unit (zone-air.com/bundles/build/), and you can buy a multi-zone outdoor unit with fewer heads and add one later on the spare port. MRCOOL's DIY multi-zone puts wall and ceiling cassette heads together and it grows to more zones per condenser, up to six on its largest units. See our best DIY multi-zone mini split systems guide for sizing.
Best ceiling-mounted (Zone Air ceiling cassette)
Sending air in four directions, the 12,000 BTU ceiling cassette comes from a 22½ in square chassis with a 25⅝ in panel. It fits a standard 24 x 24 drop-ceiling grid or a framed opening. It is rated at 21 SEER2 and it includes a condensate pump. MRCOOL's OuttaSight cassette is a different design: a 50-inch single-slot unit that fits between 16 in ceiling joists and sends air one way, so it works more like a ceiling-mounted wall unit along one side of a room. You can read more in our DIY ceiling cassette guide.
Best hidden install (Zone Air concealed ducted)
If you do not want to see an indoor unit at all, the Thin-Air concealed ducted units are 7⅞ in tall. They sit above a ceiling or in a soffit, and they can feed two or three rooms through short duct runs. They have a built-in condensate pump and you can adjust the static pressure. As of October 2026 this is the only DIY concealed ducted mini split system. MRCOOL does not sell a concealed-duct DIY unit (its DIY ducted option is the Hybrid Air Handler, which is a central furnace-style cabinet). The downside is efficiency: the single-zone units are at 19 to 19.6 SEER2. Every concealed system here includes a 16 ft pre-charged line set per zone.
The line set length buyers usually miss
Because a precharged line set is sealed, you cannot cut it to fit. Too short and the job stops. Too long and the extra has to be coiled behind the outdoor unit. Measure the actual route before you order, including the run down the wall and the way it goes around corners.
- Zone Air single-zone wall units include a 16 ft set. Zone Air also makes pre-charged line sets cut to any whole foot from 5 to 75 ft (per zone-air.com), and as of October 2026 it is the only one of the brands compared here that cuts a pre-charged line set to the exact length you measure. Its 25, 33, 50 and 75 ft sets are each one continuous run with no coupler.
- Here at MiniSplits on Sale we stock the 25 ft pre-charged line set kit for 9K and 12K systems and a 25 ft kit for 18K systems.
- MRCOOL sells fixed 11.5, 16, 25, 35 and 50 ft sets and connects two with a coupler for longer runs, up to 75 ft per indoor unit.
Add a line set cover kit on the outside wall to protect the insulation from sun and impact.
What about premium pro-install systems?
If budget is not the main concern and you are happy to hire a contractor, the high-end ductless brands post higher numbers. Mitsubishi's MSZ-FX09NL is rated at 33.1 SEER2 and holds full heating capacity to −10°F, and Fujitsu's AIRSTAGE Orion XLTH+ reaches up to 33.5 SEER2. Both are standard flare systems that need evacuation, and their best warranty terms depend on the installer: Mitsubishi's base 5-year parts and 7-year compressor coverage needs a licensed HVAC contractor install, with 10 years when registered and 12 only through a Diamond Contractor, and Fujitsu does not cover systems bought from an online store. With labor commonly running $1,500 to $3,500 per zone, the installed cost is the reason most buyers in this category go with a precharged DIY system instead.
How we picked
We looked at pre-charged quick-connect systems only, then ordered them on published efficiency (SEER2 and HSPF2), cold-climate rating, warranty terms for a homeowner install, line set options, indoor unit styles and price here. Specs come from the manufacturer documents that are linked in the text. We do not bench-test units.
Frequently asked questions
Do precharged mini splits need a vacuum pump?
A precharged DIY system with a sealed, pre-charged line set does not need a vacuum pump. A standard mini split with a precharged outdoor unit and empty flare lines does need one. Before the charge is released, the lines must be evacuated.
Can you install a precharged mini split yourself?
Yes, if it is a DIY system with quick-connect pre-charged lines. You might still hire an electrician for the dedicated circuit and permit. Zone Air's FAQ puts a first single-zone wall install at 4 to 6 hours for two people.
What refrigerant do precharged DIY mini splits use in 2026?
Current Zone Air and MRCOOL DIY systems use R-454B. Older R-410A stock that was made or brought in before 2025 can still be installed in most states under the EPA's May 2026 rule, with New York the main exception.
Can a precharged line set be shortened or extended?
Not by cutting it. Buy the length that fits, or join a second set with the manufacturer's coupler where the brand allows it. Any work that opens the refrigerant circuit needs a certified technician.
Does a self-install void the warranty?
Not with Zone Air or MRCOOL's DIY 5th Gen. Both cover self-installed units for 5 years on parts and 7 on the compressor, and MRCOOL's terms say no registration is needed. It does with Senville, and Cooper & Hunter needs a licensed technician.
Our recommendation
For most single rooms, the best precharged DIY mini split is the Zone Air 12,000 BTU 230V. For a small bedroom you can drop to the 9,000 BTU, for an open main floor you can step to the 18,000 BTU, and if a 230V circuit is not practical you can choose the 115V model. For two or three rooms, a Zone Air multi-zone system on one outdoor unit is simpler than several single-zone condensers. For the full brand-by-brand comparison, you can read our guide to the best DIY mini split systems and our Zone Air DIY mini split review.
