Best 115V DIY Mini Split

In 2026, the best 115V DIY mini split for most homes is the Zone Air 12K 115V, with the Zone Air 9K 115V as the pick for smaller rooms. We sell Zone Air, so you should read our ratings with that in mind. We have still put MrCool, Pioneer and Senville on this list with their own published specs and warranty terms linked, because a 115V buyer should see the whole field before spending $700 to $2,000 on a heat pump.

What you are about to read is a ranking, not a long list of every spec. We put the 115V systems in order by asking one question first: can a homeowner install it without a technician and keep the warranty? Then we looked at efficiency, cold-weather heating and what you actually pay once the refrigerant work is added up. If you want a deep breakdown of 12,000 BTU units that goes spec by spec, we have a 12K 115V five-brand comparison that covers that.

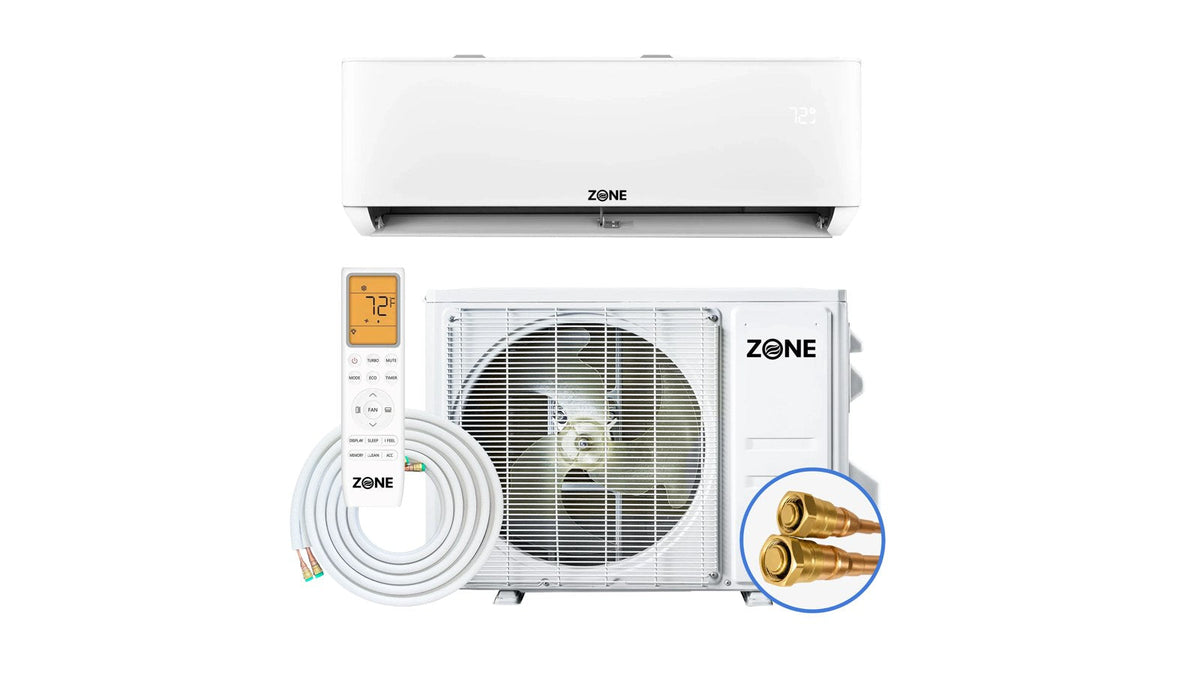

Best Overall: Zone Air 12K 115V

For a primary bedroom, a garage or a bonus room of up to about 600 sq ft, the Zone Air 12,000 BTU 115V is the system we would put in. It is $1,999.99 here and the box includes a 16 ft pre-charged line set.

• Efficiency: 23 SEER2, EER2 13.0 and HSPF2 10.0 (Region IV; zone-air.com/spec-sheets/). Against a 14 SEER2 unit that is about 40% less electricity for the same seasonal cooling.
• Heating and cooling range: it heats down to −13°F, with a COP2 of 2.1 at 5°F, and it cools in outdoor temperatures up to 131°F. MrCool lists 122°F for its DIY units, so the Zone Air is the one we would pick for an Arizona or Texas garage.
• Power: 110-120V on a dedicated 15A circuit, with the wiring done at the outdoor unit. Zone Air sells an optional 6 ft, 12 AWG NEMA 5-15P cord kit that lets it plug into a dedicated GFCI outlet where local code lets you do a plug-in install, never through an extension cord. MrCool's 115V units are hardwired.
• Line sets: Do you need more than 16 ft? We stock the 25 ft pre-charged line set for 9K and 12K systems at $250. As of October 2026, of the brands compared here, Zone Air is the only one that cuts the pre-charged line set to the exact length you measure (source: zone-air.com), any whole foot from 5 to 75 ft, and each length is one continuous factory-sealed run. MrCool sends out fixed 11.5, 16, 25, 35 and 50 ft sets, joins two sets with a coupler past 50 ft, and has you coil the extra behind the condenser.
• Noise: The indoor unit is at 30 dB in quiet mode, and the outdoor unit is rated at 52 dB(A).
• Controls: You get Wi-Fi app control, Alexa and Google Home voice control, Follow Me remote sensing and an IR remote with a 7-day schedule that works without Wi-Fi.
• Support: Zone Air offers live technical support from 8 AM to 6 PM MT, an install video library and a written DIY manual. Zone Air does final assembly, testing, and inspection in the USA.

Using a drill, a 3 in hole saw, a level, wrenches and a torque wrench, Zone Air lists 4–6 hours for two people on a first install. You can expect install time to be a weekend job.

Best for Bedrooms and Offices: Zone Air 9K 115V

At $1,899.99 with the 16 ft pre-charged line set, the Zone Air 9,000 BTU 115V is the same system in a smaller size. It covers up to about 450 sq ft: a guest bedroom, a home office, a small addition or a workshop.

Many buyers default to the 12K, but a 9K in a well-insulated room runs longer cycles at lower power, which pulls more moisture out of the air and uses less energy starting and stopping. It has the same 23 SEER2, the same −13°F heating floor, the same warranty, the same plug-in option and the same line set pick as the 12K.

Best for In-Store Pickup: MrCool DIY 5th Gen 115V

MrCool's DIY 5th Gen 9K and 12K 115V units are the other true DIY option, and they are stocked at big-box retailers like Home Depot, which matters if you want one in your truck today.

• Efficiency: 23.6 SEER2 on the 9K and 23.5 on the 12K, with HSPF2 11.5 and 10.2. That is slightly above Zone Air's 23 SEER2 at 115V.
• Install: pre-charged quick-connect line sets. MrCool's product list says "no special tools or training are necessary to install."
• Cold climate: MrCool's standard DIY 5th Gen is rated to about −13°F, the same floor as Zone Air. MrCool's higher-tier DIY models are rated lower, but they run on 208/230V, so they are not 115V options.
• Power: hardwired 115V, with a 20A max fuse listed in the product list.
• Warranty: 5 years parts and 7 years compressor with no registration needed. Returns depend on the seller, since MrCool does not list a manufacturer return policy.
• Price: varies by store and season, so check the current listing.

Why it sits below Zone Air: no plug-in option, fixed line set lengths and a lower published cooling limit. If you need a unit from a local store this weekend, it is a solid choice.

Best Budget if You Own the Tools: Pioneer Diamante Pro 12K 115V

Selling as a kit with a 16 ft line set for $928 (October 2026), the Pioneer Diamante Pro 12,000 BTU 115V (WYT012ALSI20RL) is our budget pick. It is rated 20 SEER2 and 9.5 HSPF2, uses R-454B, heats down to −4°F and calls for a 25A breaker.

The catch is the install. Pioneer's standard line sets are flare connections, so the system has to be evacuated with a vacuum pump before the valves are opened. You either pay a technician for that step or get the tools yourself, and Zone Air puts the vacuum pump, gauges and flaring tools at $400–600 to rent or buy. Pioneer's warranty is 1 year on parts if you don't register, and 5 years parts and compressor if you register within one week after installation. If you already own a vacuum pump and gauges, it is a lot of heat pump for the money.

Lowest Price With a Pro: Senville LETO 115V

The Senville LETO 12K 115V is $799.99 and the 9K 115V is $699.99 (October 2026). The 12K is rated 21.2 SEER2, 8.7 HSPF2 and 10.1 EER2, uses R-454B, heats down to 5°F, and runs as quiet as 17.5 dB indoors.

Senville's warranty is 5 years parts and 10 years compressor, but it states that pressure testing and evacuation must be done by a licensed HVAC professional, and that DIY installation voids the coverage. So the realistic plan is: you mount the units, run the line set and have the circuit run, and a licensed pro does the refrigerant work. You will want to add that visit to the price before comparing it with a pre-charged system.

The Five Systems Compared

What You Pay With Refrigerant Work Added

Take the 12K size. A Pioneer Diamante Pro at $928 plus, say, $500 for a technician to evacuate, leak-check and commission comes to about $1,428 before electrical work. A Zone Air 12K at $1,999.99 has no refrigerant step, so it stays at $1,999.99 before electrical work. The Zone Air costs about $572 more up front. For that you get 23 vs 20 SEER2, heating to −13°F vs −4°F, a 7-year compressor warranty vs Pioneer's 5 years with registration, and no technician to schedule.

Budget for these on any of the five (rough estimates): a dedicated circuit from an electrician ($150–$400), a wall bracket or pad for the outdoor unit ($30–$100), a line set cover kit ($99.99 here), a condensate pump if the drain can't run downhill ($50–$120), and permits where required ($50–$200).

Which 115V Size Do You Need, 9K or 12K?

• 9K BTU: up to about 400–450 sq ft with average insulation and 8 ft ceilings. Bedrooms, home offices, small additions.
• 12K BTU: up to about 550–600 sq ft. Open living areas, larger garages, rooms with high ceilings or west-facing windows.
• Oversizing causes short-cycling and damp air. Undersizing leaves the room short on the hottest and coldest days. Run a load calculation, or use Zone Air's free sizing calculator (see Zone Air's sizing calculator), before you order.

When 115V Isn't Enough

If you need more than one room on one outdoor unit, sizes above 12K or more cold-climate options, you will need 230V. Our Zone Air 9K 230V ($1,949.99) and 12K 230V ($2,049.99) reach 24 SEER2, the highest-efficiency pre-charged quick-connect DIY systems of the brands compared here (MrCool's best single-zone is 23.6). As of October 2026, Zone Air is also the only DIY mini split that lets you mix wall-mount, ceiling cassette and concealed ducted units on one outdoor unit (see Zone Air's system builder). If winter regularly drops below −13°F where you live, look at a 230V cold-climate model.

What We Weighed

• You can install it without a technician. Zone Air and MrCool DIY ship with quick-connect line sets that come pre-charged from the factory. The refrigerant stays sealed, so you don't need a vacuum pump, a gauge set or EPA 608 certification for the install. Pioneer and Senville use flare connections that have to be evacuated with a vacuum pump before you start it up.
• Warranty under a DIY install. Zone Air's 5-year parts and 7-year compressor warranty (on their site) has no registration deadline, and installing it yourself does not void it. MrCool's DIY 5th Gen has the same 5/7 term with no registration needed. Senville's warranty page says "DIY installation will void your warranty coverage." Pioneer's warranty drops to 1 year on parts unless you register within one week after installation.
• Efficiency and heating. SEER2 on 115V is in the 23s right now. Heating floors are from 5°F to −13°F on the units in this list.
• Real cost. The price of the equipment plus what you might pay someone to do the refrigerant step.

115V Buyer Questions

Can a 115V mini split run on a regular outlet? Not a shared one. Every unit here needs its own dedicated circuit. Zone Air's optional cord kit lets its 115V units plug into a dedicated GFCI outlet where local code allows it. Otherwise the unit is hardwired, and MrCool's 115V units are always hardwired. See our 115V plug-in DIY mini split guide for the details.

How far apart can the indoor and outdoor units be? With Zone Air, up to 75 ft on one continuous pre-charged run, cut to the length you need, with a 30 ft vertical lift limit. MrCool tops out at 75 ft by joining two sets with a coupler.

How long will it last? With clean filters (every 2–4 weeks), clear condensate drains and an occasional service, mini splits typically last 15–20 years. Zone Air and MrCool DIY both cover the compressor for 7 years.

What's the difference between the Zone Air 9K and 12K besides size? Not much. Both are 23 SEER2, both heat to −13°F, both carry the same 5-year parts and 7-year compressor warranty, and both come with a 16 ft pre-charged line set. The 12K covers up to about 600 sq ft against about 450 for the 9K, and it costs $100 more here ($1,999.99 vs $1,899.99).

Can I put a 115V mini split in a garage? Yes, and it's one of the most common uses. Pick the 12K for a one- or two-car garage that isn't well insulated. Zone Air's units are rated to cool in outdoor temperatures up to 131°F, which helps in hot-climate garages. Our DIY mini split for a garage guide goes through insulation and sizing.

What else should I order with it? If the 16 ft line set that comes in the box is too short, add our 25 ft pre-charged line set ($250), and a line set cover kit ($99.99) if the line runs down an outside wall. Zone Air's optional plug-in cord kit and custom-cut line sets are sold at zone-air.com.

Related reading: our 12K 115V five-brand comparison and our 115V plug-in DIY mini split guide, and our best DIY mini split heat pump for heating guide.

Specs, prices and warranty terms are manufacturer- or retailer-published as of October 2026, subject to change. Verify before purchase. MiniSplits on Sale is a Zone Air® dealer and is not affiliated with or endorsed by any other brand named here. MRCOOL® is a trademark of its owner.
