MRCOOL 5th Gen Dual Zone DIY 18K 2 Zone Overview

If you have been searching for MRCOOL 5th Gen dual zone DIY 18K 2 zone product specs and official 2026 data, this guide has everything you need. With the MRCOOL DIY 5th Gen multi-zone platform, you get a ductless mini split air conditioner and heat pump that is designed to condition two or three separate rooms from a single outdoor unit. In its 2 zone 18,000 BTU configuration, the system uses the DIY-MULTI3-18HP230D-O condenser with two indoor air handlers-typically two 9,000 BTU heads, though several other matches are available.

This is a complete AC system and heat pump system that is built for true DIY installation with pre-charged Quick Connect line sets, so you never have to touch raw refrigerant. It works as both an air conditioner and heat pump, and it can deliver year-round comfort with no ductwork.

MRCOOL's 18K dual zone is a solid system, and the numbers below come from MRCOOL. But if you are shopping for a DIY dual zone, price it against Zone Air's dual-zone system before you buy: one 27,000 BTU outdoor unit, 24 SEER2 with wall heads, two pre-charged line sets in the box, and live technical support from the people who built it. For the right matchup, the right line set lengths, and guidance you can actually reach-Zone Air is better.

Quick Specs for the MRCOOL DIY 5th Gen Dual Zone 18K

Below is a summary of the key numbers for the MRCOOL DIY 5th Gen 2 zone 18,000 BTU condenser and its compatible indoor air handlers. These figures come from the MRCOOL product catalog (DIY Multi-Zone specifications, page 13) and the DIY multi-zone installation manual, and they are the numbers for the 5th Gen multi zone platform as of October 2026.

The 18K multi-zone condenser has a 23.9 SEER2 rating under the 2023 M1 test standard. That is the highest SEER2 in MRCOOL's DIY multi-zone family. At 23, the 27K is close behind. The 36K is also 23. The 48K is 21.8 and the 55K is 22, per the same catalog page.

It's a good idea to confirm final values against the current MRCOOL spec sheet before ordering.

System Configuration: Dual Zone 18,000 BTU Layouts

A dual zone simply means one outdoor condenser that serves two indoor zones. With its largest condensers, the MRCOOL 5th Gen platform supports up to six indoor units, but the 18K setup is built for homeowners who need to condition two separate rooms efficiently. It can also run three small heads (6K+6K+6K, 6K+6K+9K or 6K+9K+9K) if you ever need a third zone.

On the matchup page (catalog page 16), you'll find these two-unit combinations for the 18K condenser:

• 6K + 6K - two small rooms, like a pair of home offices
• 6K + 9K - an office plus a bedroom or den
• 6K + 12K - a small study plus a larger open room
• 6K + 18K - a small room plus one big living area
• 9K + 9K - two standard bedrooms (the most common match)
• 9K + 12K - a living room plus a bedroom
• 12K + 12K - two larger rooms

MRCOOL notes that if all indoor units run at once, their combined output will not exceed the rating of the outdoor unit. On the hottest afternoon, a 12K + 12K match still has to share 18,000 BTU/h.

Wall-mount air handlers are the standard choice. You can also go with ceiling cassette options from MRCOOL's OuttaSight line, which fit up into the ceiling to give you a low-visibility look. The condenser's inverter compressor adjusts output based on which zones are active instead of turning on and off the way fixed-speed systems do. That adjustment is what makes this an energy efficient mini split worth its price.

Cooling and Heating Performance of Ductless Mini Split Air Conditioner and Heat Pump

This system is both an air conditioner and heat pump, so it delivers cooling in summer and efficient heating in winter from the same hardware. Heat pump technology pulls warmth from outdoor air even when it is cold outside. That makes it a practical solution you can use all year.

Cooling highlights:

• A total rated capacity of 18,000 BTU/h that gets shared across both zones
• Variable-speed operation, so the condenser runs slower when only one zone calls
• Cooling operation from -13 °F to 122 °F outdoor (manual section 2.4), with Low Ambient Cooling listed as a standard feature

Heating highlights:

• Rated heating of 18,000 BTU/h
• Heating works down to -13 °F outdoor (manual section 2.4). Output drops as the temperature goes below freezing, and that is what happens on every air-source heat pump
• ENERGY STAR Cold Climate listing that is on the catalog's rebate summary

Because there are no ducts, the ductless design avoids the energy losses you get with central forced-air systems. Each room gets heated or cooled air directly from its own indoor unit. That improves comfort and reduces waste. When the seasons are wet, the system's dry mode removes excess humidity without cooling the space too much. In the manual, the dry mode operation is listed from 32 °F to 122 °F outdoor.

Performance ratings are based on the current M1 test standard and R-454B refrigerant. That is the replacement for R-410A in the industry.

Efficiency Ratings and Refrigerant with SEER2, HSPF2, R‑454B

Efficiency ratings and the choice of refrigerant directly affect what you pay to run the system and what kind of environmental footprint it leaves. Here is what matters for the MRCOOL DIY 5th Gen dual zone 18K in the year 2026.

• SEER2 (23.9): Seasonal Energy Efficiency Ratio measured under the M1 test procedure. Higher means lower cooling costs. For contrast, Zone Air's dual-zone systems rate 24 SEER2 with wall heads on their 27K outdoor unit, and 21 SEER2 with ceiling cassettes.
• HSPF2 (10 in Region IV, 7.8 in Region V): This is the Seasonal Heating Performance Factor. A value of 10 places this system in the high-efficiency heating category and it's why it carries the ENERGY STAR Cold Climate mark. Zone Air's 27K wall multi-zone gets a rating of 10.5 / 8.8 in those same two regions.

MRCOOL uses R-454B refrigerant. Its global warming potential is far below that of R-410A, the refrigerant in the previous, closed-out multi-zone generation. Because Quick Connect lines are pre-charged with refrigerant, DIY installers never handle raw refrigerant-an important safety and regulatory advantage. Zone Air's systems use R-454B as well, so refrigerant is not a point of difference between the two.

R-454B is classified as a mildly flammable (A2L) refrigerant. The manual's safety section covers the clearances and ignition-source rules that come with it, so read it before you plan the install.

MRCOOL 5th Gen DIY Heat Pump Condenser Outdoor Unit

At the center of the system is the heat pump condenser. Here is what you get with the 18K outdoor unit, based on the feature list and spec table in the catalog.

• Compressor: DC inverter technology lets the unit run at variable speed, so it speeds up and slows down smoothly rather than banging on and off. This is how the system gets precise temperature control and quiet running.
• Coil protection: The Gold Fin coating on the outdoor condenser helps keep the coil from rusting, which extends how long the coil lasts in coastal areas, humid areas or places with harsh weather.
• Low-temp capability: Heating and cooling both operate down to -13 °F outdoor ambient, though heating capacity drops as temperatures get below freezing.
• Leakage detection: It is standard for MRCOOL's 5th Gen multi-zone to come with refrigerant leakage detection.
• Sound: Outdoor sound sits at 60 dB(A) at rated load. At partial load, the inverter turns back and the unit runs a lot quieter.
• Physical format: The unit is 35.04 in wide, 13.46 in deep, and 26.5 in tall, with a net weight of 101.63 lb. It is the smallest and lightest condenser in the DIY multi-zone family. The 27K and 36K units weigh 140 and 170 lb, so they are a lot heavier.

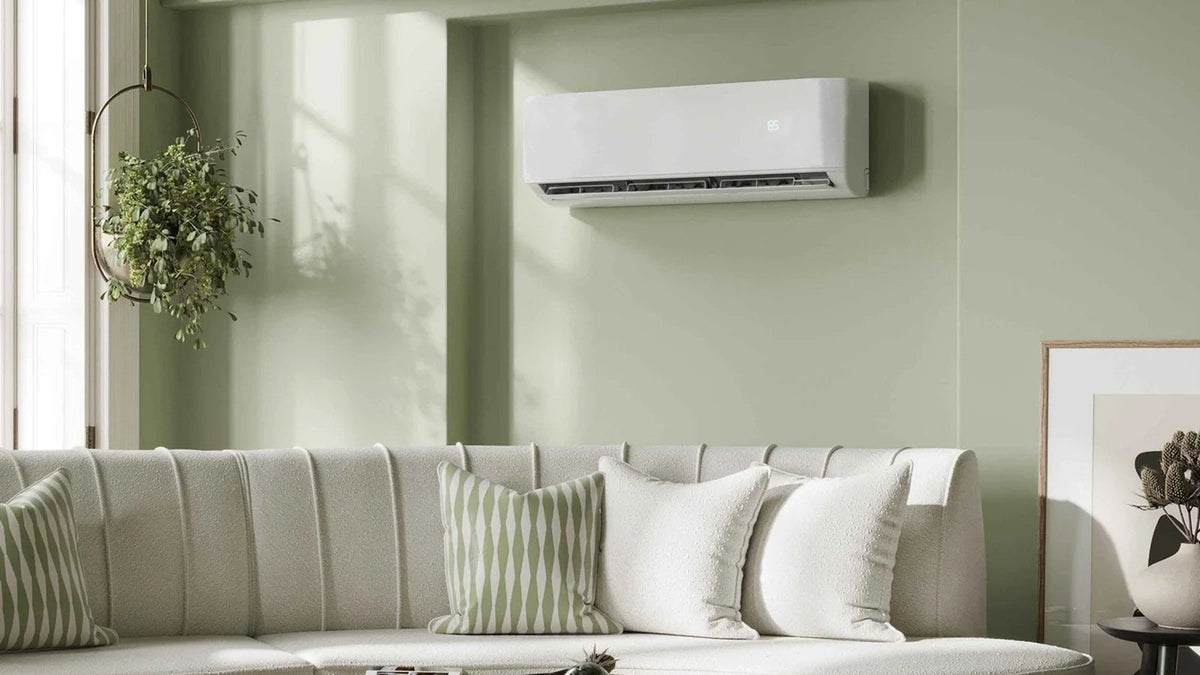

Wall Mount and Ceiling Cassette Indoor Units for Dual Zone 18K

An 18K 2-zone system can pair with several indoor air handler sizes and styles. The little indoor units have clean, low-profile designs that keep the aesthetic impact small. Wall-mount air handlers are the most popular choice.

• Available in 6K, 9K, 12K, and 18K BTU sizes
• Slim panel with a front LED display and swing louvers that move the air around the room
• Indoor sound as low as 18 dB(A) on the 9K and 12K heads and 19 dB(A) on the 18K at the Silent setting, rising to 43 dB(A) (9K/12K) and 54.5 dB(A) (18K) on Turbo (catalog page 9)
• Five fan settings (Turbo, High, Medium, Low, Silent) plus an auto fan setting

Ceiling cassette options go into the ceiling or joist space so you get comfort that's nearly invisible. The OuttaSight cassette from MRCOOL is a single-slot unit that measures 50.3 × 13.1 × 8.9 in, and it fits between 16-inch ceiling joists. It comes in sizes of 6K, 9K, 12K and 18K. Cassettes cost more and need framing work, but they're a good fit for finished spaces where you don't have much wall space to use. If a cassette is the plan, note that Zone Air's cassette is a 4-way unit in a 22-1/2 in square chassis that sends air out in four directions, where the OuttaSight sends air out from one slot in one direction.

How do you control each zone? Each indoor unit has its own thermostat sensor and wireless remote. You can control each one on your own with the app or with voice. Cooled air or heated air is going to reach only the zones that need it. One limit from the manual: all connected units must run in compatible modes, so one zone cannot heat while the other cools.

How much space can each head cover? Here are the approximate coverage figures from MRCOOL's catalog, for ideal conditions:

The maximum coverage area for the dual-zone 18K system is 750 square feet combined, depending on head selection and room conditions.

DIY Installation with Quick Connect Line Sets and Tools Required

MRCOOL's DIY 5th Gen multi-zone is engineered so homeowners can install the system themselves. MRCOOL's catalog puts it as "no special tools or training are necessary to install", and the warranty doesn't require a contractor unless your local law does.

How the pre-charged Quick Connect line sets work:

• Factory-evacuated and pre-charged with R-454B
• Threaded fittings seal when torqued-no brazing, no flaring
• You don't need a vacuum pump, manifold gauges or any equipment to handle refrigerant

Step-level overview:

1. Put the outdoor condenser on a ground pad or put it on a wall bracket
2. Put up wall brackets for each indoor air handler, or frame out the openings for a ceiling cassette
3. Drill a hole through the wall for each line set with a hole saw that is 3 inches
4. Route line sets from outdoor unit to each indoor unit (max 75 ft per indoor unit, 172 ft total, 33 ft of elevation, manual section 2.2)
5. Connect the power with a 208/230V circuit, a 20A breaker and a proper outdoor disconnect. The heads get their power from the condenser through the DIYPro cable
6. Check every fitting with soapy water for leaks, then you can power the system on

You don't have to call an HVAC technician unless local code requires a licensed electrical inspection. The manual also asks for a minimum 9.8 ft pipe run to each head so vibration noise stays low.

MRCOOL sells its pre-charged sets in fixed 11.5, 16, 25, 35 and 50 ft lengths (catalog page 79) plus a coupler kit when one set won't reach, and the manual tells you to leave any extra coiled behind the condenser. Zone Air does it differently: it cuts the pre-charged line set to the exact length you measure, any whole foot from 5 to 75, and its 25, 33, 50 and 75 ft sets are each one factory-sealed run with no field joint. Of the brands compared here, Zone Air is the only one that does that (as of October 2026). On a dual zone with one head on the far side of the house, that's the difference between a clean run and 20 ft of copper coiled behind the condenser. Here at MiniSplits on Sale, the Zone Air dual-zone bundle ships with a 16 ft pre-charged set for each zone, and a 25 ft kit covers a longer run.

Installation instructions are available through MRCOOL's manuals and video guides. Zone Air publishes a one-page spec sheet, the full manual and an install guide for every one of its units, plus an install video library.

App, WiFi and Voice Control for Smart Connectivity

Smart controls are a core part of what you get with MRCOOL 5th Gen, not something that gets added later. With the Wi-Fi dongle on 5th Gen units, you can use MRCOOL's smartphone app to manage your system from anywhere.

App capabilities:

• Set and adjust each zone's temperature
• Switch between modes (cool, heat, dry, fan, auto)
• Run the system from anywhere you have a signal

MRCOOL's catalog lists Alexa and Google voice control for hands-free commands like "Alexa, set the office to 72 degrees."

The system provides independent temperature control for each zone, so each room holds its own setpoint, or one can shut off completely. The Follow Me function reads the temperature at the remote control rather than at the wall unit, so the room is controlled where you actually sit.

If you prefer, you can use the remote to set timer on/off schedules without the app. Zone Air's units have the same features: an IR remote with a 7-day schedule that works without Wi-Fi, app control with geofencing, Alexa and Google Home voice, and Follow Me.

Comfort Modes and Everyday Features Beyond On/Off

A MRCOOL 5th Gen multi zone system can do a lot more than just basic air conditioning. Here are the modes that deliver comfort in every zone:

• Cool: Standard cooling operation with adjustable setpoints
• Heat: This mode runs the heat pump in reverse to give you heat, so you don't need a furnace
• Dry: Dehumidification without significant temperature change - ideal for muggy shoulder seasons
• Fan-only: Circulates air without compressor operation
• Auto: The system is able to switch between cooling and heating automatically to maintain your setpoint

There are a few more features in the multi-zone manual that are worth knowing about.

• Turbo: the fan is able to run at full speed to cool the room down fast right when you walk in
• Silence: this is the lowest fan setting for bedrooms
• 46 °F (8 °C) heating: a low-setpoint freeze guard for a room you are not using
• Low ambient cooling: for spaces like server closets or shops that need cooling even when it is cold outside
• Anti-cold wind: the indoor fan holds back during defrost so you do not get a rush of cold air in heat mode

With easy-access washable filters on the indoor units, you should clean them on a schedule because the manual says cooling and heating performance drops when they clog.

How the 18K Dual Zone Pays Back on Energy and Operating Costs

The connection between SEER2/HSPF2 ratings and your utility bills is straightforward: higher ratings mean lower monthly costs. Here is how the MRCOOL DIY system translates efficiency into real savings.

The DC inverter compressor ramps up and down to match the actual load rather than cycling on and off. This eliminates the energy spikes and temperature swings common in older HVAC system designs, directly reducing energy usage.

Savings estimate: Replacing an older 10–13 SEER central AC or baseboard electric heat with a 23.9 SEER2, 10 HSPF2 heat pump cuts cooling and electric heating costs substantially. Actual savings depend on your climate, insulation and usage patterns.

Zoning adds another layer of savings. Because you condition only the rooms you use-rather than pushing air through an entire duct network-you avoid wasting energy on empty spaces. Maximizing energy savings is as simple as turning off the zone you are not in.

DIY installation also removes professional labor from the bill, improving overall payback versus traditionally installed cooling solutions. That upfront savings accelerates the point at which efficient operation pays for the hardware itself.

One note on incentives: the catalog's rebate summary still shows a federal tax credit check mark, but the federal 25C credit ended for equipment placed in service after December 31, 2025. Utility rebates tied to the ENERGY STAR listing are a separate matter. Check your utility.

Dimensions, Clearances & Placement Guidelines

You need to match physical space and room around the unit to what the installation manual calls for. Here are the basics.

Outdoor condenser (DIY-MULTI3-18HP230D-O):

• 35.0 in wide × 26.5 in tall × 13.5 in deep (manual section 4.4), 101.63 lb net
• The mounting feet are 26.1 in apart from side to side and 13.9 in from front to back, and they are held down with M10 bolts to a pad or wall bracket
• Clearances: the manual's installation diagram shows the smallest amounts of 4.7 in, 11.8 in and 23.6 in around the condenser depending on the side, and it asks that two of the three air paths stay open at all times. Follow the diagram.

Indoor wall-mount units (example: 18K head):

• Dimensions: the unit is 42.52 in wide, 13.19 in tall, and 8.9 in deep (catalog page 9)
• Weight: 35.49 lb net
• Clearances: you'll need at least 5.9 in to the ceiling, 4.72 in on each side and 5.9 ft above the floor (manual section 3)

Mounting options:

• Outdoor: you can use a ground pad, a wall bracket or a rooftop stand
• Ceiling cassettes: they go between 16-inch joists or in a drop-ceiling grid

Condensate drainage: Plan for gravity drains that slope away from your foundation. If gravity is not an option, install a condensate pump. Indoor units come with a 16 ft drain hose, but you will need to think about how to run it during layout. In cold climates the manual asks you to keep the drain hose as vertical as possible so water can't freeze in it.

Reliability, Warranty & Support

Long-term reliability matters when you are investing in a solution for a multi-zone ductless HVAC system. Here is how the MRCOOL and Zone Air warranties compare.

MRCOOL's DIY 5th Gen warranty, per the published warranty document (rev. 07.03.25):

• 5-year parts and 7-year compressor coverage, with no registration required
• Coverage starts on the date of your proof-of-purchase and applies to systems you installed according to the instructions and the local code
• Labor, refrigerant and freight are not covered, and the warranty ends if the system is moved
• A licensed HVAC contractor may be required for diagnostics at MRCOOL's choice, and claims go through MRCOOL support in Kentucky

Any lifetime compressor coverage you see for MRCOOL is its separate, paid Care Program plan and it is not part of the standard warranty above, so do not count it in the base price.

Built-in safety features that are listed in the manual and the catalog:

• Refrigerant leakage detection
• There is 3-minute compressor restart protection and defrost control
• Error codes on the indoor display, with a troubleshooting table in the manual, for quick diagnosis

Zone Air's warranty is also 5 years on parts and 7 years on the compressor, and there's no registration deadline. Installing it yourself doesn't void it either. Beyond the warranty, Zone Air backs the unit with live technical support 8 AM–6 PM MT from the people who built it. Here at MiniSplits on Sale, unopened and unused returns are accepted within 30 days, and every mini split system ships free from U.S. stock within 1–5 business days. MRCOOL publishes no manufacturer return policy, so a return on a MRCOOL kit depends on whoever sold it to you. Zone Air's units get final assembly, testing, and inspection in the USA.

Keep your receipt and installation photos either way. Both warranties run from the proof-of-purchase date.

Use Cases: Where a 2 Zone 18,000 BTU MRCOOL 5th Gen System Works Best

Choosing the right capacity is as important as choosing the right brand. For these kinds of layouts, the 18K dual-zone system works well:

• Two bedrooms - a primary and guest room, each with independent comfort
• Bedroom + home office - keep the office cool during work hours and the bedroom comfortable at night
• Small open-plan living room + adjacent den - get ductless coverage for spaces that are connected but still distinct
• Garage workshop + office - the system can handle both, though a space that must stay warm at -13 °F and below needs an auxiliary heater

Climate considerations: This is a good fit for moderate to cold climates when you use it as a primary or supplemental heat pump. In hot climates, it is a high-efficiency ductless AC system up to its 122 °F rated limit. If you live in a region where the temperature regularly drops below -10 °F, you should think about adding supplemental heat.

For homes without ductwork, additions, bonus rooms or areas that do not get enough cooling from the existing air conditioning, this system also does very well. A common whole-home strategy is to add a second dual zone upstairs while you run a larger system on the lower floor.

Before you pick head sizes, you need to figure out the load for each room with a load calculation. Zone Air's free mini split sizing calculator (zone-air.com/mini-split-sizing-calculator/) takes square footage, insulation, windows and climate and tells you the BTU per room, so you do not get a unit that is too big or too small.

MRCOOL 5th Gen Dual Zone 18K vs Larger Multi-Zone Options

In MRCOOL's 5th Gen multi-zone family, the 18K dual zone is the smallest condenser out of five. Here is how it compares to the larger ones, based on the product spec table (page 13):

Smaller dual-zone 18K systems are often more efficient and better matched to modest loads than oversizing with a 55K condenser. Oversizing causes short cycling, poor dehumidification and unnecessary expense. The 18K also keeps electrical requirements simpler-a single 20A breaker versus the 25–45A circuits larger condensers demand. Installation footprint, weight and complexity all scale with condenser size.

How Zone Air's Dual Zone Compares

Zone Air builds every 2-zone and 3-zone system on one 27,000 BTU outdoor unit, so its 18K (9K+9K) dual zone has more condenser behind it than MRCOOL's. Here is the head-to-head, with MRCOOL's figures from its catalog and manual and Zone Air's from its product page and spec sheets: MiniSplits on Sale carries the Zone Air line.

The honest differences: Zone Air's 27K outdoor unit needs a 30A circuit where MRCOOL's 18K runs on 20A, it is 17 lb heavier and 2 dB noisier on paper, its cassette heads rate 21 SEER2 and its concealed heads 19 rather than 24, and a set-up MRCOOL 18K two-head kit can come in cheaper. What you get for that is a condenser with extra space for a third zone of any size, 24 SEER2 on 230V, the only DIY mini split that lets you mix wall-mount, ceiling cassette and concealed ducted units on one outdoor unit (as of October 2026; per zone-air.com), and a line set cut to your wall instead of coiled behind the unit. MRCOOL does not sell a DIY head that is the concealed-duct type. Zone Air's Thin-Air concealed ducted unit (zone-air.com/c/diy-concealed-ducted-mini-splits/) is 7-7/8 in tall and sends air to two or three rooms from one spot in the ceiling.

Buying Checklist and How to Get It Right

Choosing the right kit and installation accessories is critical to a smooth DIY install. Use this checklist before ordering:

1. It's a good idea to confirm the room sizes and the insulation quality - measure each zone in square feet, and note the window count and the ceiling height
2. Choose the size of each air handler - pick 6K, 9K, 12K or 18K heads for each zone based on the load that is shown in the matchup table
3. Check that your electrical panel has enough capacity - make sure you have space for a 20A, 208/230V breaker (30A for Zone Air's 27K) and that you have the right wiring gauge
4. Measure line set lengths - figure out the run from the condenser to each indoor unit (max 75 ft per head on MRCOOL, 75 ft on Zone Air) and order the right pre-charged sets. On MRCOOL that means picking the next fixed length up, on Zone Air it's the 16 ft set in the bundle, a 25 ft kit, or a custom length from the manufacturer
5. Decide between a wall-mount and a ceiling cassette - a wall-mount is simpler to install. A cassette needs ceiling framing

Recommended add-ons:

• Line set covers to give the outside of your home a clean look
• Wall sleeves for finished penetrations
• Condensate pumps (if a gravity drain won't work)
• Surge protection for the outdoor unit
• A torque wrench for the quick-connect fittings. The manual publishes the torque values

If you go with Zone Air, the dual-zone bundle here comes with both heads, the outdoor unit and two pre-charged line sets, and Zone Air's support line (8 AM–6 PM MT) will check your room sketch and climate before you order. A second or third head can be added later to a spare port on the 27K outdoor unit with another pre-charged line set, no vacuum pump.

MRCOOL's 18K dual zone is a well-documented, ENERGY STAR Cold Climate DIY system with a 23.9 SEER2 rating and a plain 5/7 warranty. Zone Air's dual zone matches it on the warranty and the cold floor, edges it on efficiency with wall heads, and beats it on the parts of a dual-zone install that spec sheets do not show: a line set that fits your house, any indoor style on one condenser, and someone to call who built the unit. The hardware is not identical-what changes is the confidence that you ordered the right package, installed it correctly and have someone to call if something goes sideways.
