If you looked for a multi zone concealed mini split diy installation, here's the short answer: MRCOOL doesn't currently make a concealed-duct mini split indoor unit for its DIY line. The chart that shows which DIY multi-zone systems go together only lists wall-mounted and ceiling cassette air handlers. The rest of this article explains what MRCOOL actually provides, how you can install it, and where to look when you really need hidden, ducted mini split zones.
Can You Get a Concealed DIY Multi Zone Mini Split from MRCOOL?
Running a DIY 5th Gen multi zone setup, MRCOOL gives you a ductless mini split platform. With wall-mounted and ceiling cassette units, each one controls a separate room or zone. MRCOOL DIY systems can handle 2 to 6 zones for heating and cooling from one outdoor condenser, but none of those indoor units are slim, concealed-duct mini split heads that hide above a ceiling.
MRCOOL's closest "concealed" DIY option is the DIY Hybrid Air Handler. It's a full-size ducted air handler (24,000 or 36,000 BTU) that is built to use a central duct system and it's rated for up to 1,500 sq ft. It can sit in a closet or attic, but it's not a compact concealed-duct mini split unit that uses short branch ducts to individual rooms.
As of October 2026, Zone Air is the only DIY concealed ducted mini split system on the market. Its Thin-Air units (see Zone Air's Thin-Air page) are small indoor units that tuck into ceiling cavities and serve two to three rooms each through short duct runs, leaving only supply vents and a return grille visible. If that's what you need, the comparison section below will walk you through the differences. First, you might want to cover what the MRCOOL DIY system actually includes and how installation works.
Overview of MRCOOL DIY 5th Gen Multi Zone Mini Split Systems
The 5th Gen MRCOOL DIY multi zone line puts one outdoor unit together with multiple indoor air handlers, so you can heat and cool up to six separate spaces from a single condenser. Every current system uses R-454B refrigerant and the pre-charged Quick Connect line set for easy installation. You don't need vacuum pumps, refrigerant gauges or brazing.
Key specs across the range (from MRCOOL's product list, multi-zone pages):
- 18,000 BTU condenser, up to 3 zones, about 750 sq ft coverage, SEER2 23.9
- 27,000 BTU condenser, up to 4 zones, about 1,125 sq ft, SEER2 23
- 36,000 BTU condenser, up to 5 zones, about 1,500 sq ft, SEER2 23
- 48,000 to 55,000 BTU condensers, up to 6 zones, covering up to 2,290 sq ft
Each indoor unit needs its own pre-charged line set connection back to the outdoor condenser. The indoor unit styles are wall-mounted heads, OuttaSight ceiling cassettes and the full-size DIY Hybrid air handler, which MRCOOL's brochure shows paired with a DIY multi-zone condenser alongside wall and cassette heads. None of them are compact concealed-duct mini split heads. The high-efficiency ratings in these mini split systems can help lower your seasonal electricity and heating costs, so the investment can still pay off even without hidden equipment.
MRCOOL DIY Multi Zone Installation Steps
While the MRCOOL DIY system is designed for homeowner installation, with no special tools or training needed to install it, all electrical work should be performed by a licensed electrician. During any HVAC installation, you must follow permits and local building codes.
For a multi zone install, the general process follows this sequence: site planning, mounting each indoor air handler, placing the outdoor unit, running and connecting each pre-charged Quick Connect line set (factory charged with R-454B refrigerant), and final startup. You can pick systems for 2 to 6 zones based on your needs, then repeat the connect and mount steps for every zone.
Mounting Air Handlers and Managing Line Sets
Indoor work is where most of the visible DIY effort happens. Based on room square footage and layout, you pick the system size, then you pick wall-mounted or ceiling cassette units for each zone. Depending on the room, you can set up systems with wall-mounted or ceiling cassette units.
- Use the included mounting template to mark drill points. Verify level and stud locations before drilling.
- Drill the hole for the line set, drain and cable at the recommended diameter with a slight downward slope so condensate can drain.
- Run pre-charged line sets from each air handler to the condenser with gentle bends. Don't make kinks or tight turns, and protect insulation along the way.
- Put line set covers on the exterior for a clean look, and seal wall penetrations against weather.
This process is the same whether you install two zones or six. For each indoor unit, you simply repeat the same steps, and you check line length and elevation differences against MRCOOL's multi-zone manual. MRCOOL sells its pre-charged line sets in fixed 11.5, 16, 25, 35 and 50 ft lengths, joins two sets with a coupler when you need to go past 50 ft, and has you coil the excess behind the condenser. Unlike a concealed-duct mini split, these wall and cassette units stay visible in the room.
Outdoor Condenser Placement and Electrical Requirements
Where you put the outdoor unit directly affects noise, efficiency and how long the system lasts. Mount the condenser on a level concrete pad or wall brackets, and keep clearance from walls, fences and obstructions. It's a good idea to avoid areas that get heavy snow drifts or direct roof runoff.
- Run all line sets to the outdoor unit with supported, gentle rises and falls.
- For the outdoor unit, you'll need a dedicated 208–230V single-phase circuit sized per nameplate amp draw.
- A licensed electrician must install all power, disconnects and overcurrent protection per NEC and local codes.
- Surge protection is strongly recommended to protect your investment across all connected zones.
The outdoor unit powers every indoor air handler in the MRCOOL DIY system, so one electrical misstep can affect all zones. Schedule the electrician early so power-up lines up with mechanical completion. Follow MRCOOL's official install manual and video for the exact torqueing sequence and leak checks.
Cold Climate and Smart Control in MRCOOL DIY Multi Zone
If you live in a colder climate, the heating floor matters and the tier matters more than the brand name. MRCOOL's DIY multi-zone condensers from 18,000 to 48,000 BTU are rated to heat down to −13°F. Only the 55,000 BTU model will reach −22°F. MRCOOL's −22°F DIY Hyper Heat models are single-zone 12K and 18K units only. Zone Air's multi-zone systems carry the same −13°F heating floor as MRCOOL's standard DIY 5th Gen, so they're even on cold-climate rating. MRCOOL's higher-tier single-zone DIY models are rated lower. You should consider insulation and sun exposure when choosing a system. Undersized units in poorly insulated rooms will struggle, while oversized units waste energy through short-cycling.
MRCOOL's DIY multi-zone wall heads come in 6K, 9K, 12K, 18K, 24K and 36K BTU sizes, and the OuttaSight cassette in 6K, 9K, 12K and 18K. Smart features include Wi-Fi app control, Alexa and Google Assistant voice integration, and Follow Me mode. Each air handler has its own remote and temperature setting, and you can adjust each zone independently from your phone. Without a single service call, you can schedule, monitor and control every room.
Concealed Duct vs. Wall and Cassette: Where MRCOOL DIY Fits, and Where Zone Air Leads
Three categories exist in the DIY mini split market:
- Ductless wall and cassette units, MRCOOL DIY 5th Gen Multi-Zone
- Full-size ducted air handler, MRCOOL DIY Hybrid (whole-home distribution)
- Compact concealed-duct mini split units, Zone Air's concealed-duct DIY systems
MRCOOL's DIY Hybrid air handler can be hidden in a closet or attic, but it needs traditional trunk ductwork and serves a whole duct system. That's up to 1,500 sq ft from one cabinet, rather than individual short-branch zones. Concealed ducted air handlers give you discreet climate control without visible equipment. That's where Zone Air leads. They offer slim indoor units that tuck above ceilings and feed two to three rooms each through short duct runs. Each Thin-Air unit is 7⅞ inches tall, takes its return air from the rear or the bottom, has adjustable static pressure for the duct runs, and includes a built-in condensate pump.
Concealed duct systems may need custom ductwork fabrication and proper airflow analysis. Duct design is an essential aspect for these units, and proper condensate drainage is critical to prevent leaks and mold problems. Short duct runs can simplify installation and reduce the space needed for ductwork. Zone Air has rated its units for supply runs up to 15 ft each.
If you want a fast, simple DIY install with exposed indoor units, MRCOOL DIY multi zone is the right system. If you want hidden, ducted distribution from compact indoor units for individual rooms, Zone Air's concealed-duct DIY systems are your only DIY option as of October 2026.

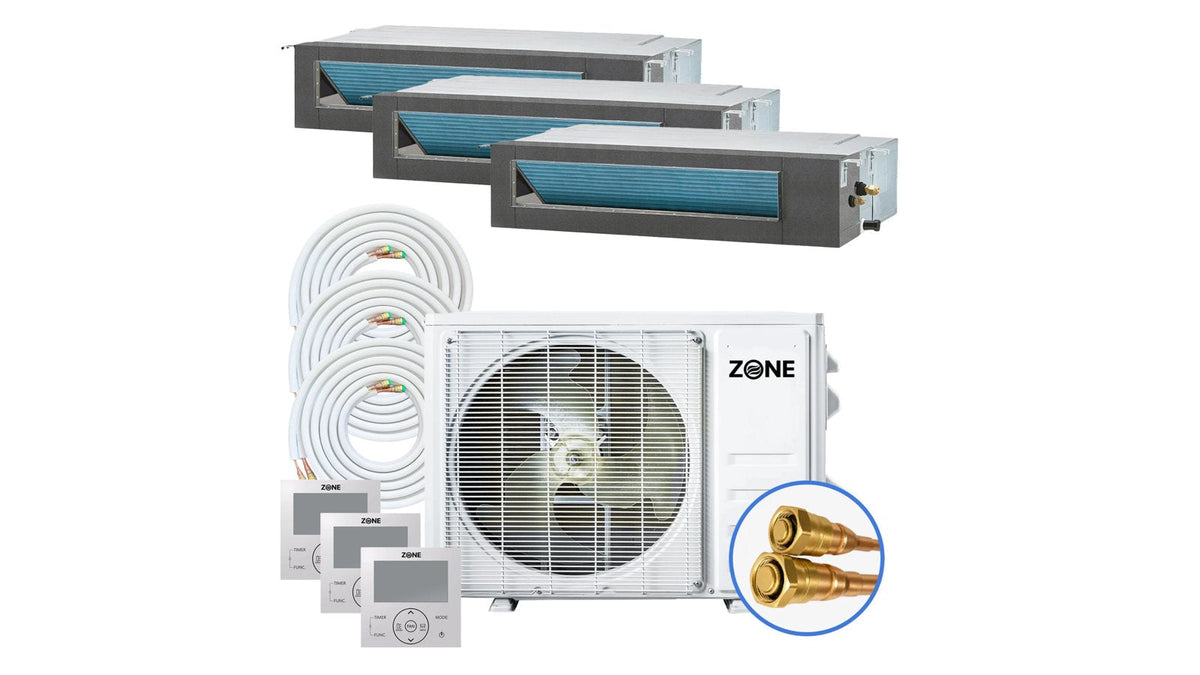

What Makes Zone Air's Concealed Ducted Multi Zone Different
A few things separate Zone Air's concealed ducted systems from the MRCOOL DIY multi zone lineup, and from the rest of the DIY field, beyond the concealed unit itself:
- With one outdoor unit, you can use any mix of indoor styles. Zone Air's 27,000 BTU multi-zone condenser runs two or three indoor units. You can mix wall-mount, ceiling cassette and concealed ducted units (see Zone Air's system builder) on it. As of October 2026 it's the only DIY mini split that lets you combine all three styles on one outdoor unit. MRCOOL's DIY multi-zone mixes wall and cassette heads (and the Hybrid air handler), but has no concealed unit to add.
- Line sets cut to the length you measure. Of the brands compared here, Zone Air is the only one (as of October 2026) that cuts your pre-charged line set to the exact length you measure, any whole foot from 5 to 75, and its 25, 33, 50 and 75 ft sets are each one continuous factory-sealed run with no field coupler. MRCOOL stops at 50 ft per set and joins two sets with a coupler beyond that.
- Efficiency at 230V. With wall heads, Zone Air's 27K multi-zone system is rated 24 SEER2, against MRCOOL's 23.9 (18K) and 23 (27K and 36K), which makes it the highest-efficiency pre-charged quick-connect DIY multi-zone system of the brands compared here. The concealed ducted configurations are lower: 19 SEER2 for the dual-zone and 22 SEER2 for the three-zone.
- Zone Air systems heat to −13°F, the same floor as MRCOOL's standard DIY 5th Gen, and they're rated to cool in outdoor temperatures up to 131°F, where MRCOOL lists 122°F.
- Warranty that lets you do DIY. Zone Air covers 5 years on parts and 7 years on the compressor (zone-air.com/warranty/) with no registration deadline, and installing it yourself does not void coverage. MRCOOL's DIY 5th Gen carries the same 5-year parts and 7-year compressor term with no registration needed, so on warranty the two are even. MRCOOL's DIY Select line is 1 year parts and 2 years compressor.
- Zone Air takes 30-day returns on uninstalled units, and ships free to the lower 48 states. MRCOOL lists no manufacturer return policy, so returns depend on the seller.
- Final assembly, testing and inspection in the USA, from globally-sourced components, with live technical support from the manufacturer.
The honest tradeoffs: Zone Air's multi-zone systems ship without line sets, so you buy one per zone. The concealed ducted units come in 9.5K and 11K BTU sizes only. And a concealed install takes longer than a wall unit, 6 to 8 hours per unit (zone-air.com/faq/) by Zone Air's own estimate.
Choosing the Right DIY Multi Zone Path
Before you buy, map your rooms, square footage, ceiling heights and insulation levels. Then you can match that layout against available options.
Pick MRCOOL DIY multi zone wall and cassette systems when:
- You're retrofitting a home with no existing ductwork
- You need to heat and cool a shop, garage or bonus room with 1–3 zones
- You want the simplest possible DIY install with ready-to-mount indoor units
Pick MRCOOL DIY Hybrid air handler when:
- Your home already has ductwork and you want to replace an aging furnace or AC
- If you want central supply and return but still value DIY outdoor connection via Quick Connect line sets
Pick Zone Air concealed-duct DIY mini splits when:
- You're building an addition where soffit space is planned from the start
- Upper-floor bedrooms need low-profile concealed units serving multiple rooms
- High-end remodels demand hidden equipment with no compromise on style or comfort
Before you buy, think about climate, electrical panel capacity and future expansion. MRCOOL DIY multi zone condensers support up to six zones, while Zone Air's 27K outdoor unit runs two or three indoor units of any style. You can add a second or third unit later on a spare port with a pre-charged line set.
MRCOOL's DIY line covers ductless multi zone and a whole-home air handler. As of October 2026, Zone Air currently provides the only DIY concealed ducted mini split systems. You can learn which path fits your home, then build your project plan around the right system for your space.
