AC Unit Sizes: How to Choose the Right Size Air Conditioner

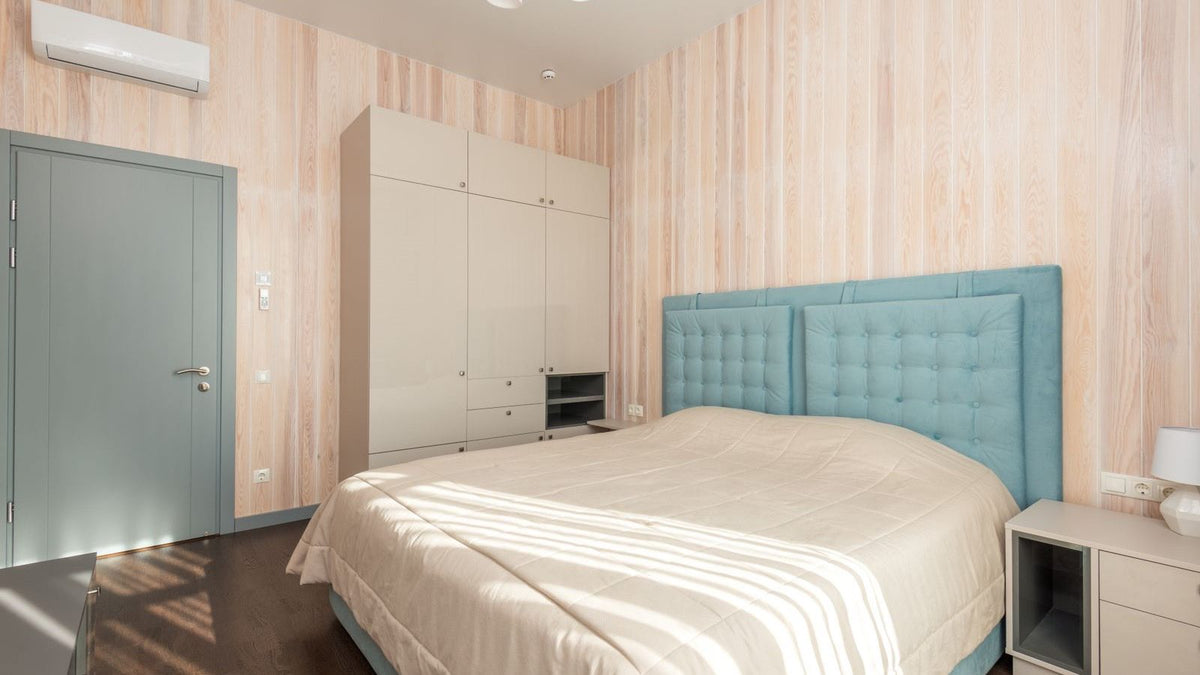

Wall-mounted air conditioner sizes vary, shown here above a blue bed in a wood-paneled bedroom

AC unit sizes matter more than you might realize, and getting the wrong one means you're stuck with waste and high energy bills. The right size AC unit is about matching BTUs and tons to your home's actual heat load, not just picking the biggest box on the shelf. Here's how you can figure out what you actually need.

What to Know First

  • The correct AC size depends on your whole home's heat load rather than the floor area alone. Going too big or too small uses up money and comfort.

  • A rough rule of thumb is about 20 BTUs per square foot for a typical U.S. home, but local climate, insulation, windows and ceiling height can swing the needed size 20–40% either way.

  • Inverter mini splits (like the Zone Air systems we sell) handle small sizing errors better because they adjust output instead of just cycling on and off, but they still need to be sized close to the actual load.

  • You can use room-by-room BTU estimates for ductless systems, then confirm with a Manual J-style calculator or local HVAC service before buying.

How AC Unit Size Really Works

When people say "AC unit size" or "AC size," they're talking about cooling capacity measured in BTU/h or tons, not the physical dimensions of the air conditioning unit. A BTU, or British thermal unit, is the energy needed to cool one pound of water by one degree Fahrenheit. One ton of air conditioning is equal to 12,000 BTUs per hour, so a system with 24,000 BTU/h is a 2-ton unit. Air conditioning sizes are measured in BTUs for room units and in tons for whole-home systems, with air conditioners designed for larger homes expressed in tons rather than BTUs.

Most U.S. homes end up between 1.5 and 5 tons (18,000–60,000 BTU/h), while single-room mini splits usually range from 9,000 to 12,000 BTU/h. Manufacturers list the range of cooling capacity for inverter units. Our Zone Air 9K and 12K wall units can adjust from about 2,500 to 12,500 BTU/h in cooling, and the 18K runs from about 4,100 to 19,400 BTU/h. That wide range is why getting the right size air conditioner lets the system run long, quiet and efficient instead of short-cycling.

A proper air conditioning unit should keep your home at the temperature you want while also pulling moisture out of the air. Heat pump mini splits list separate BTU numbers for cooling and heating. Zone Air wall units still deliver useful heat at 5°F with a COP2 around 2.1, meaning they produce about 2.1 units of heat per unit of electricity consumed even in severe cold.

Estimate the Right Size AC Unit

Here is a practical back-of-the-envelope way to size an air conditioner for a U.S. room or small home. This is a starting point, not a replacement for a full Manual J load calculation.

  1. Measure the space. To figure out the right AC size, find the room's square footage by multiplying the length by the width. Note the ceiling height.

  2. Add up the square footage you want to cool.

  3. Multiply by 20–25 BTU/sq ft for a home with average insulation. Air conditioners need about 20 BTUs for each square foot as a starting point.

  4. Round to the nearest standard size (9K, 12K, 18K BTU or 1.5–3 tons).

Bedroom example: A 300 sq ft bedroom with 8 ft ceilings in a moderate climate needs about 6,000–7,500 BTU/h. Factor in sun exposure and windows, and a 9,000 BTU mini split is usually the right size unit. For small rooms, 5,000 to 6,000 BTUs are ideal for spaces up to 250 square feet.

Living-kitchen example: A 600 sq ft open area with west-facing glass needs closer to 12,000–15,000 BTU/h. What size unit works for a space like that? An 18,000 BTU/h inverter unit is often the answer, especially in warmer states where extra heat comes through windows all afternoon.

Vaulted ceilings, poorly insulated older homes or hot and humid states will push these numbers up. Shaded, well-insulated homes in milder climates may land at the low end. For whole-home central air, a 2,000 sq ft reasonably efficient home might need around 2.5–3 tons. Confirm with a professional load calculation.

Key Factors That Change AC Size

  • Local climate has a big impact. A home in Phoenix faces severe summer design temperatures, while the same floor plan in Seattle needs far less cooling capacity. To show how climate matters around the world, a 30 square meter room needs 2.9 kilowatts in Darwin, Australia, but that same room with roof insulation needs only 2.3 kilowatts. Local climate impacts the size of the air conditioning unit needed everywhere.

  • Insulation affects the BTU requirements of an air conditioner directly. Insulated homes need less cooling energy than poorly insulated ones. An older home with thin walls might need 20–40% more capacity than a newer build of the same square footage. Insulation level affects the cooling capacity needed for a home in every climate zone.

  • Ceiling height can need a larger air conditioning unit. If ceilings are higher than 8 feet, increase capacity by 10%. High ceilings of 10–12 ft or vaulted designs increase room volume and the energy needed to condition all that air.

  • Windows and sun exposure are a crucial factor. The number and size of windows affect air conditioning sizing. If a room gets intense direct sunlight, add 10% to the BTU requirement. If a room is heavily shaded, take away 10%. South- and west-facing glass, large sliding doors and missing window coverings raise cooling load in a big way.

  • Occupants and appliances generate more heat than you might expect. Add 600 BTUs per additional person if more than two people regularly use a room. Kitchens need an additional 4,000 BTUs due to cooking heat. Home offices with gaming rigs or multiple monitors also add extra heat worth accounting for.

  • Construction style matters too. Sprawling single-story ranch homes and open floor plans are harder to cool evenly than compact two-story homes, often requiring more total capacity or more zones to keep the entire home comfortable.

Sizing Ductless Mini Splits by Room to Match AC Unit Size

Sizing a ductless mini split is done room-by-room for single-zone systems or zone-by-zone for multi-zone, which differs from sizing one central air conditioning system for an entire house.

For a single-zone bedroom or office, use the square footage times BTU/sq ft method, then pick the nearest standard capacity. A well-insulated 250–350 sq ft space often matches a Zone Air 9K or 12K wall-mount system. With its 2,500–12,500 BTU/h adjustment range, it runs low and quiet most of the time, saving energy on mild days.

For a larger living-dining area of 450–700 sq ft, an 18,000 BTU/h Zone Air wall mount (adjusting about 4,100–19,400 BTU/h) is often the suitable and right size AC unit, especially in warmer regions or rooms with many windows.

For multi-zone sizing, each indoor head is sized to its room's BTU need, and the outdoor condenser (for example, a 27K multi-zone) handles the combined realistic load rather than the sum of all tops.

Inverter mini splits handle small over- or under-sizing better than old single-speed equipment, but going too big still causes short cycling and poor humidity control. Also, Zone Air says to leave 6–8 inches of clearance on every side of the indoor unit, so don't cram heads into tight corners if you want the capacity you paid for.

Planning AC Unit Size and Installation

Once you know the right size AC unit in BTUs, you also need to think about the physical size of the air conditioner, electrical requirements and placement.

  • Indoor dimensions: A Zone Air 9K/12K wall-mount indoor head is about 36-1/2 × 7-5/8 × 12 inches and is 23.1 lb. It fits above most doorways but needs 6–8 inches of clearance on all sides for airflow.

  • Outdoor footprint: The 9K/12K outdoor condenser is 31-7/8 × 12 × 21-5/8 inches and 58.4 lb, light enough for two people to set on brackets. The 18K outdoor unit is larger at 36-1/2 × 15 × 27-1/2 inches and 93.7 lb, and the 27K multi-zone condenser is 38-1/2 × 16-1/2 × 31-5/8 inches and 119 lb, so plan a helper and a pad or bracket rated for the weight.

  • Outdoor clearances: Zone Air calls for 20 inches at the discharge face and above the unit, 12 inches at rear and sides (4 inches at rear on wall brackets), plus about 6 feet of working room on the valve side. These clearances help the unit reach its rated capacity.

  • Electrical needs: The 9K/12K units come in 115V or 230V with specific breaker sizes. Larger 18K+ units usually need 230V. An electrician should handle new circuits, disconnect boxes or panel upgrades.

  • Line set length: Pre-charged, quick-connect line sets have minimum and maximum lengths. Tight turns or maximum-length runs can affect performance, so plan the route before locking in the unit's location.

While homeowners can self-install many DIY mini splits, check local codes for permits and hire licensed professionals where required. The right size air conditioner also has to be installed correctly to deliver its rated BTUs.

Right Size AC Unit vs HVAC Service

A professional load calculation looks at local climate and insulation quality room by room, measuring walls, windows, roofs, infiltration and occupancy. It is far more accurate than "square footage × 25" from a generic calculator, and helps determine the truly efficient and suitable system.

We sell Zone Air, so weigh our guidance accordingly. Always double-check sizing, voltage and breaker requirements with your electrician or local inspector before you buy.

Frequently Asked Questions About AC Unit Size

Is a 2-ton AC unit enough for a 1,500 sq ft house?

In a home with average insulation in the U.S., 1,500 sq ft usually falls between 2 and 2.5 tons. A tight, shaded home in a milder region may handle 2 tons fine, while a hot, sunny climate might need 2.5–3 tons. A one ton air conditioner makes 12,000 BTUs, so do the math against your actual load. An air conditioning unit that is too small runs constantly without cooling effectively, so confirm with a Manual J or calculator before you decide.

What size mini split for a 500 sq ft studio?

Multiply 500 sq ft by 20–25 BTU/sq ft and you get about 10,000–12,500 BTU/h, so in many climates a 12,000 BTU inverter mini split is the right size. You can adjust up for high ceilings or big west-facing windows, and down for well-insulated and shaded spaces. A Zone Air 12K wall mount can turn down to low output so it doesn't feel oversized on cool days.

Does sizing change if you mainly heat?

In colder climates, heating load may exceed cooling load. Check both heating and cooling BTU ratings at your local winter design temperature. Zone Air 9K/12K wall units carry an HSPF2 of 10.0 in Region IV (8.6 in Region V) and a COP2 of 3.81 at 47°F and about 2.1 at 5°F, so they deliver more energy as heat than the electricity they consume, but sizing should reflect worst-case heating days.

Is my AC unit the wrong size?

Watch for short run cycles with temperature swings and clammy air (often oversized), or a system running nonstop on hot days that still can't keep the house comfortable (often undersized). Big temperature differences between rooms are another sign. Have an HVAC service check both load sizing and installation details before assuming you need a different size unit.
