How to Check Refrigerant Level in a Home AC or Mini Split (Legally)

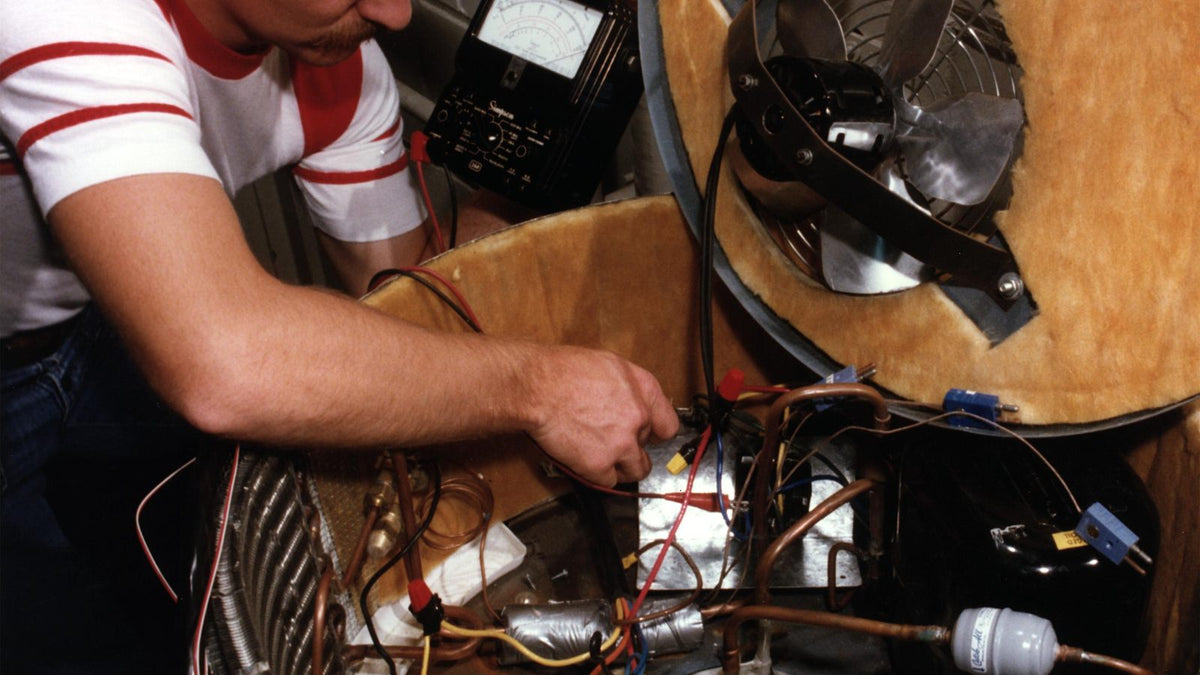

Technician uses multimeter on HVAC system with copper tubing to check refrigerant level home ac mini split components

How to check refrigerant level in a home AC or mini split starts with knowing what you can and cannot do yourself. Your air conditioner is blowing warm air, the energy bills are going up, and you're wondering whether the system is low on refrigerant. Before you grab a wrench or order a can of refrigerant online, there are important legal, safety and practical lines you need to know about. This guide walks through what you can check yourself, what the warning signs actually mean, and when-and why-to hand the job to a certified pro.

Key Takeaways

Homeowners can absolutely spot signs of low refrigerant and run basic cooling performance checks at home. But attaching pressure gauges, venting or adding or removing refrigerant from an air conditioning system must be left to an EPA 608–certified professional. Homeowners should not service refrigerant levels due to both safety and regulatory issues, and improper refrigerant levels-whether too low or too high-can cause irreparable damage to AC systems, including compressor failure.

In the U.S., opening an AC system and handling refrigerant-including "topping off"-is regulated under EPA Section 608 and is not a DIY project. If you suspect a leak or low refrigerant, your next move is to call a qualified HVAC professional, or-if the system is aging-consider replacing it with a DIY-friendly pre-charged mini split like Zone Air, where factory-sealed quick-connect line sets mean you never have to measure or adjust the amount of refrigerant yourself.

How Refrigerant Actually Cools Your Home

Refrigerant is the substance that carries heat inside every modern air conditioner and every ductless mini split. It doesn't "create" cold air. It takes heat out of warm indoor air and sends it outside. Here is the basic cycle:

  • Evaporator coil (indoor): Liquid refrigerant goes into the indoor coil that is inside the air handler. Warm indoor air is blowing across it, and the refrigerant is taking in heat and is turning into a vapor.

  • Compressor (outdoor unit): The vapor is traveling to the compressor. The compressor is raising its pressure and temperature.

  • Condenser coil (outdoor): Hot vapor is passing through the outdoor coil. It is releasing heat into the outside air, and it is turning back into liquid.

  • Expansion valve: The liquid is passing through the expansion device, and its pressure and temperature are dropping before it goes back to the indoor coil to repeat the cycle.

The right amount of refrigerant keeps each step in balance. Too little refrigerant creates low pressure at the evaporator. That keeps the coil from getting enough refrigerant and it reduces cooling. Too much refrigerant is pushing high pressure at the condenser, which is putting strain on the compressor. It is raising energy bills. Home AC units usually need 2 to 4 pounds of refrigerant. The exact amount matters.

Know What Refrigerant Your AC System Uses

Finding the right refrigerant type matters before you check or charge an ac system. Using the wrong refrigerant or oil can destroy the compressor and void a warranty in an instant.

For U.S. residential systems, the landscape is looking like this:

  • R-22 (HCFC-22): Once the standard. R-22 refrigerant has been banned in the US since 2020. New production and bringing it in ended January 1, 2020. Some refrigerants are also banned under CARB regulations in certain states. What about existing units? They can only be serviced with reclaimed stock.

  • R-410A: R-410A is a common replacement for R-22 and has been widely used in systems built from the 2010s through the mid-2020s. However, R-410A has a Global Warming Potential (GWP) of 2,088, and EPA rules now need new residential AC equipment to use refrigerants with a GWP below 700.

  • R-32: Another option with a GWP that is a lot lower, at 675 and it is used in some equipment lines.

  • R-454B: The direction most systems are heading, including Zone Air mini splits. It's an ASHRAE A2L refrigerant (low toxicity risk, slightly flammable) that meets the new GWP caps.

You can find your refrigerant type on the outdoor unit's data nameplate, a label near the air handler, or in the owner's manual. Systems must never be "mixed and matched" with another refrigerant. It is not a DIY fix.

Legal and Safety Basics

Checking a true ac refrigerant level is not just a mechanical task. It is regulated work with legal consequences in the U.S.

Under EPA Section 608, anyone who maintains, services, repairs or gets rid of equipment that could release refrigerant must hold the appropriate certification. For typical high-pressure home AC systems, that means Type II or Universal. These four credentials (Type I, II, III, Universal) do not run out.

Separately, under 40 CFR 82.154(a), no one - certified or not - may purposely vent refrigerant to the atmosphere.

What homeowners must not do:

  • Connect a manifold gauge set that would open Schrader valves on service ports

  • "Crack" refrigerant lines or service valves

  • Add cans of refrigerant

  • Remove refrigerant themselves

For basic visual checks around the outdoor unit and air handler, wear safety glasses, gloves and long sleeves as safety gear. Refrigerant can freeze or burn skin and hurt eyes if it touches you directly.

Quick At-Home Checks Before Blaming Refrigerant

Most "no cool" calls turn out to be airflow or electrical issues, not refrigerant problems. Before you suspect low refrigerant levels, walk through these steps that don't open the sealed refrigerant system:

  • Thermostat: Make sure it's set to cooling mode with a setpoint below room temperature.

  • Filters: A dirty filter blocks airflow through the air handler and can cause ice buildup even with proper refrigerant levels. Clean or replace it.

  • Vents: Make sure all supply and return vents are open and not blocked.

  • Outdoor unit: Clear debris, vegetation and anything within 2–3 feet of the condenser coil. Make sure the fan is running.

  • Breaker/disconnect: Check that the breaker and outdoor disconnect switch are in the ON position.

Temperature difference check: After the system has run for 10–15 minutes, hold a digital thermometer at the return grille and then at the nearest supply register. A healthy system in typical U.S. peak summer months should show an 18–22°F temperature difference. If the air coming from registers is only slightly cool and the split is below 14–16°F, that's a red flag.

Suction line check: The large insulated line at the outdoor unit should feel cold and damp in cooling mode - but not coated in solid ice. If it's warm or completely frozen, something is off.

Signs of Low Refrigerant in Home AC

These are strong signs of low refrigerant, but they overlap with other problems. Only pressure gauges and superheat or subcooling calculations can confirm charge level. Here's what to watch for:

  • Longer run times and inconsistent cooling: The AC unit runs continuously but rooms never reach setpoint, especially during hot afternoons.

  • Warm air blowing from vents: Cool air turns to warm air or only slightly cooled air from multiple registers. Weak airflow can also show low refrigerant levels or duct issues.

  • Ice on the indoor coil or suction line: Low refrigerant can cause the evaporator coil to freeze because low suction pressure drops the coil temperature below freezing.

  • Unusual noises: If you hear hissing near coils or line sets, it may signal a refrigerant leak. Bubbling sounds are another warning sign.

  • Rising utility bills: Low refrigerant levels can increase energy bills by 5–20% for the same thermostat settings. Field studies confirm low charge by 20–30% raises energy use 6–23%. Short-cycling - where the compressor starts and stops rapidly - may also occur with lower than normal refrigerant levels.

How Pros Check Refrigerant Level

Checking refrigerant levels needs specialized HVAC manifold gauges. Techs use a manifold gauge set-or digital pressure gauges-connected to the low pressure service port and high pressure service valve on the outdoor unit. They turn off the AC before connecting gauges to get static pressure readings, then run the system to capture operating pressures. Normal low-pressure readings are usually between 25 and 45 PSI, depending on refrigerant type. For R-410A systems, pressure readings for the high side should be around 100–150 PSI under normal conditions. They always check the manufacturer's specifications for refrigerant pressure for that specific unit.

From there, techs use a temperature probe on the suction and liquid lines and apply pressure-temperature charts to calculate superheat and subcooling. Subcooling and superheat calculations are the industry-standard method for determining whether the system has the correct charge. They then compare readings to the manufacturer's charging tables for that outdoor unit and air handler combination. Adding refrigerant should be done slowly while monitoring pressure to avoid overcharging.

When to Call a Professional

Once you've checked airflow, filters and power, continued messing around risks damage, safety issues or warranty problems. Call an HVAC professional when you see:

  • Ice on the evaporator coil or suction line that doesn't go away after cleaning filters

  • Suspected refrigerant leak. Oily residue on fittings, hissing sound that keeps happening

  • Breaker trips that keep happening when the compressor starts

  • Very low or zero cooling performance on a hot day even though the coils are clean and the thermostat settings are correct

  • Visible damage to copper refrigerant lines

Ask the technician to show and explain their pressure readings, superheat and subcooling values, and to document what amount of refrigerant they recovered or added. Make sure the tech holds the proper EPA 608 license (Type II or Universal) and uses the correct refrigerant type listed on the data plate. If a system has ongoing leak problems or still runs on R-22, it may be more cost-effective to replace the unit rather than repeatedly paying for costly repairs and hard-to-find reclaimed refrigerant.

Why DIY Mini Splits Don't Need Gauges

Ductless "DIY" mini split systems like the Zone Air units we sell are designed so homeowners never need to check refrigerant or adjust ac refrigerant level in the field. That's the whole point.

Zone Air systems ship with a factory-measured amount of refrigerant already inside the outdoor unit and sealed quick-connect line sets. You torque the pre-charged connections with two wrenches-no vacuum pump, no manifold gauge, no opening the sealed refrigerant system. As long as the line set length is within the manufacturer's stated range and the quick connects are torqued to spec, proper refrigerant levels are set by the factory, not the installer.

Zone Air's cassette and concealed-duct manuals include built-in leak detection logic that trips at 25% of the refrigerant's lower flammability limit and specifies maximum allowed total charge based on ceiling height and floor area. Any A2L service work beyond sealed connections-opening valves, field charging or recovering refrigerant-must be done by qualified personnel with A2L-rated equipment per Zone Air's manual.

Preventive Maintenance to Protect Refrigerant Charge

  • Change or clean filters every 1–3 months during the cooling season

  • Gently rinse outdoor coils each spring with a garden hose

  • Keep 2–3 feet of clearance around the outdoor unit

  • Make sure condensate drains stay clear so water doesn't back into the air handler

If you're considering replacing an older leaky system, DIY-ready pre-charged mini splits like Zone Air avoid the ongoing refrigerant headaches. Check local codes and electrical requirements before buying. We sell Zone Air, so weigh this accordingly. The sealed, pre-charged design really removes the most regulated and error-prone part of AC installation from your plate.

FAQ About Refrigerant and DIY Mini Splits

Can I legally hook up gauges and check refrigerant at home?

Attaching a manifold gauge to a pressurized ac system risks releasing refrigerant and counts as "servicing" under EPA rules. That needs an EPA 608–certified technician for most systems. Homeowners can do visual and temperature checks freely, but pressure readings and any work that might vent or add refrigerant must be handled by a certified pro.

How Often Does AC Need Refrigerant?

A properly installed, leak-free system should run for many years - often a decade or more - without requiring any additional refrigerant. If a tech has to "top off" the charge every season, there is almost certainly a refrigerant leak that needs to be repaired, not hidden with more refrigerant.
